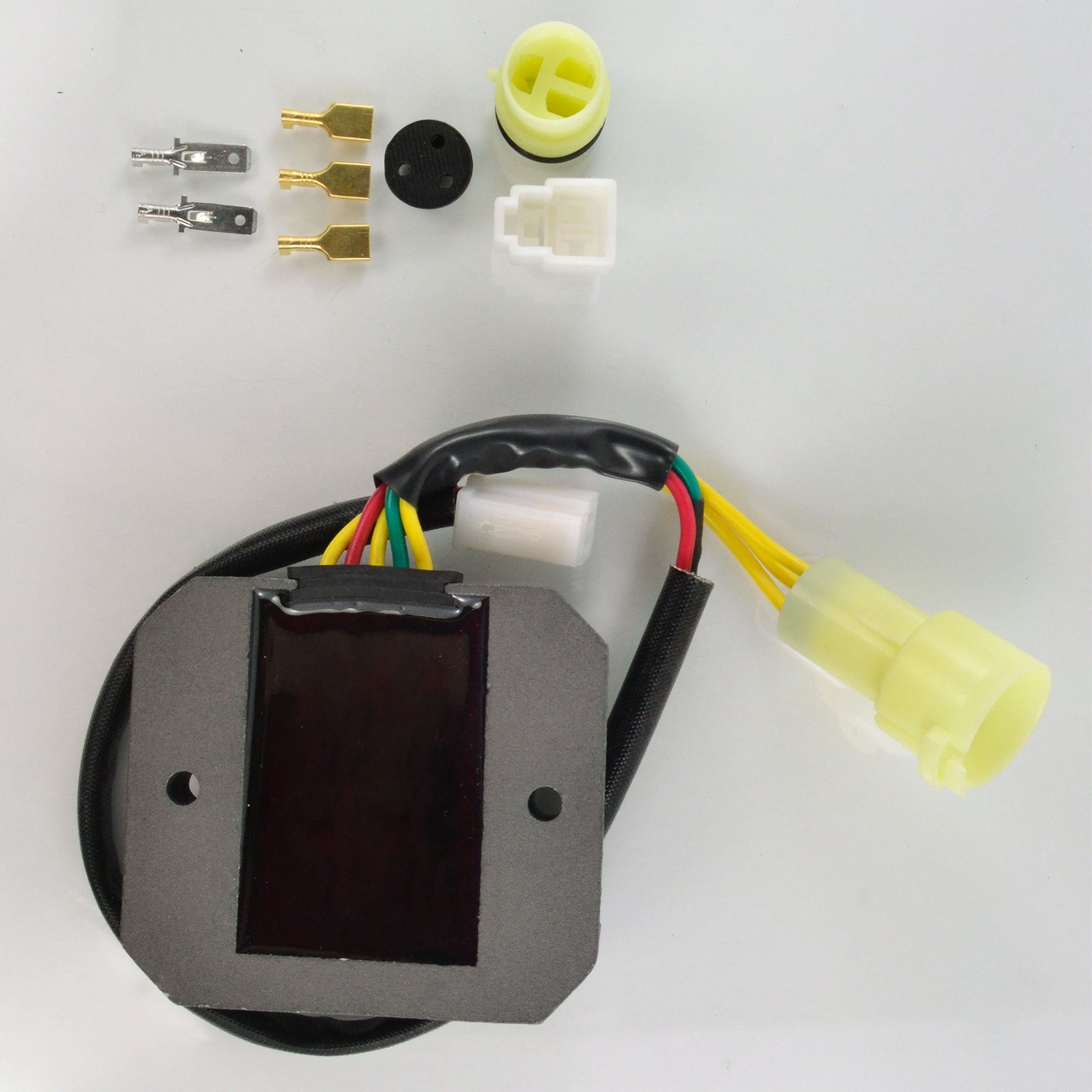

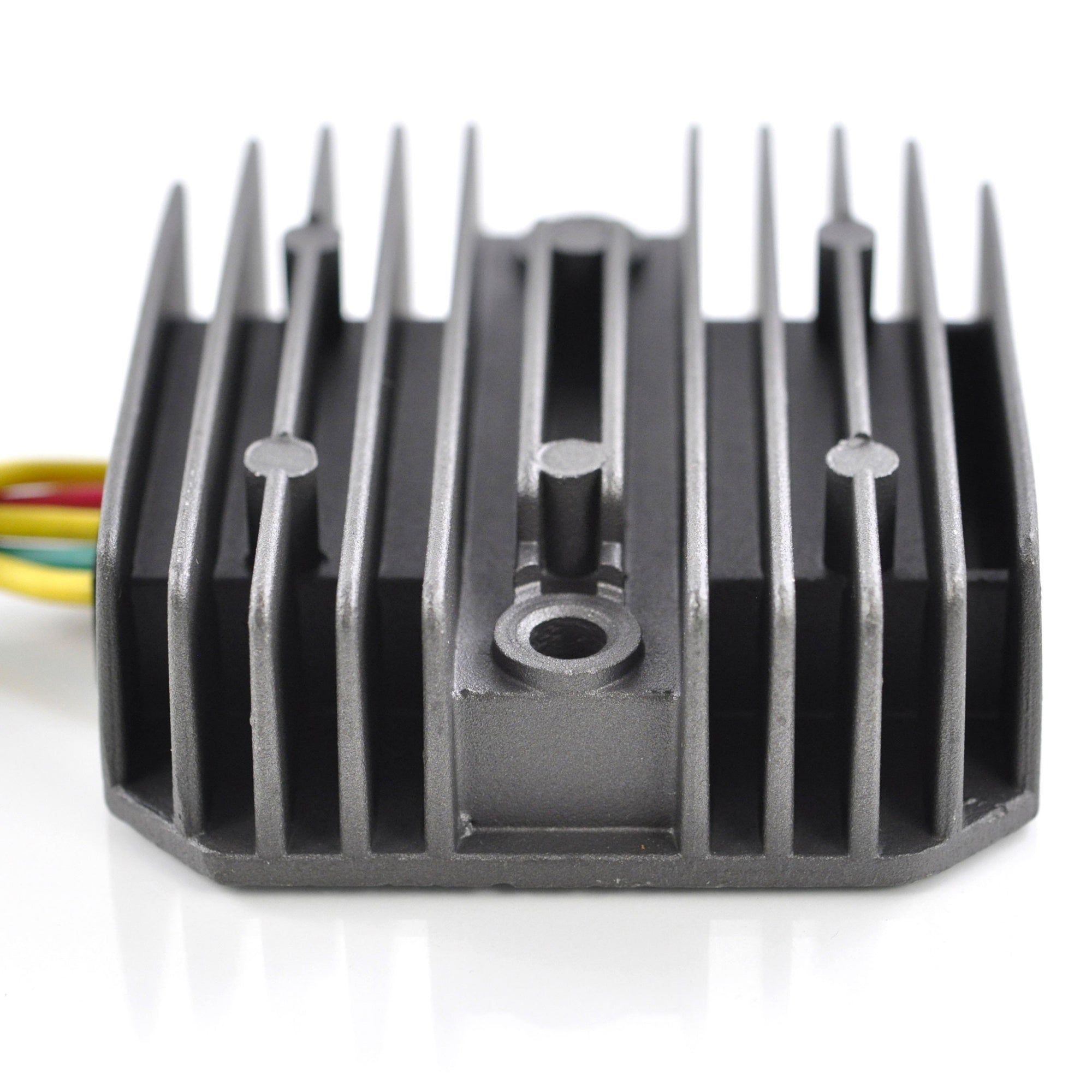

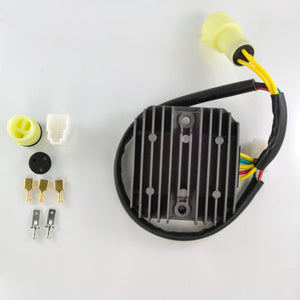

Brand NEW Voltage Regulator
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- No assembly required
- Higher grade of electric components.
- The quality exceeds the OEM equipment
Used on the following applications:
- HONDA
- TRX 300 Fourtrax (1988-1992)
- TRX 300 Fourtrax FW (1988-1992)
Replaces these genuine manufacturers part numbers:
- HONDA
- 31600-HC4-000
- 31600-HC4-010
Technical Details
Dimensions:
Width: 80 mm
Length: 90 mm
Height: 27 mm
Wires length: 178 mm, 400 mm
Fixation holes center to center: 68 mm
Other specifications:

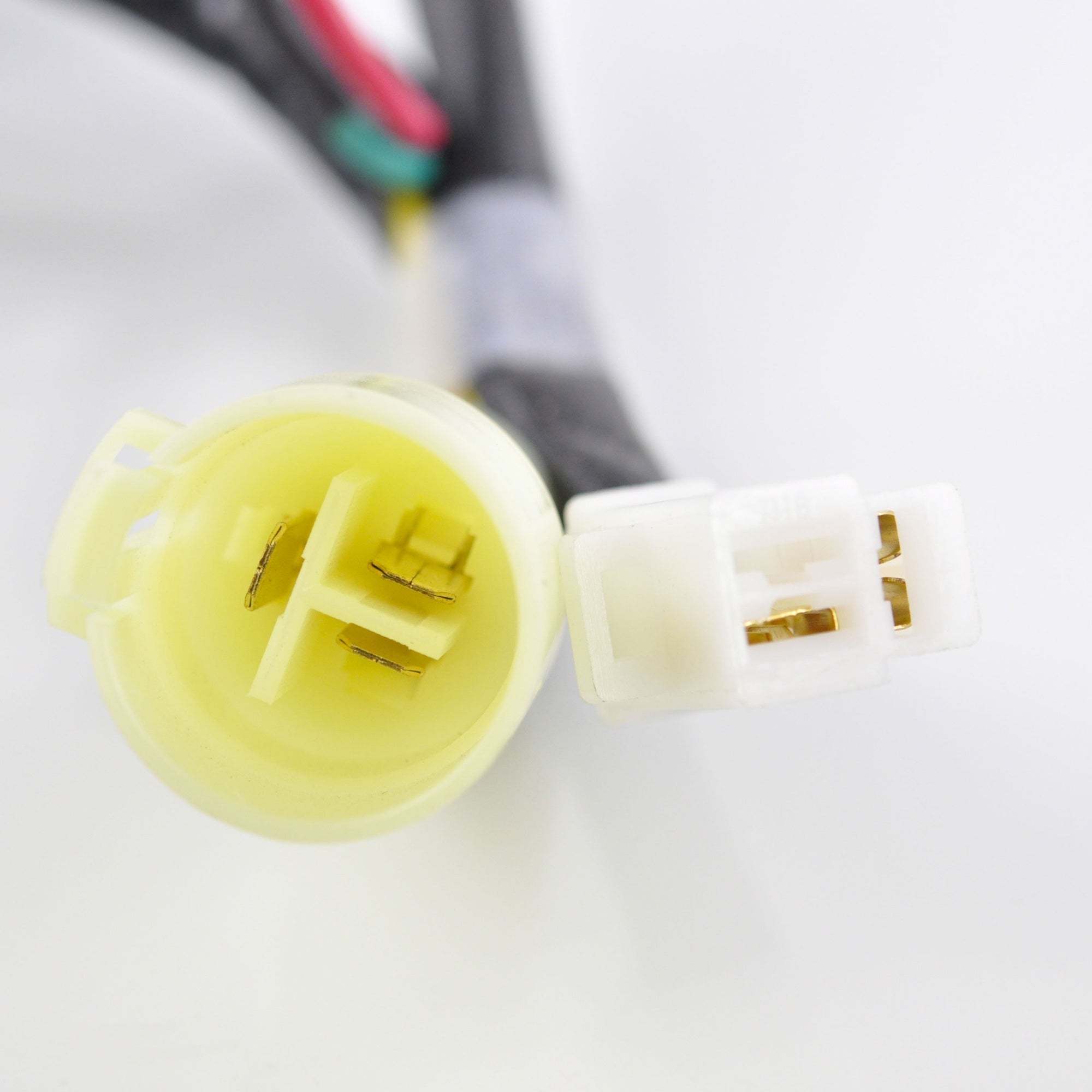

Number of plugs: 2
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5V +- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: 15V
Operation Temperature: -20? to 85?
Part Application/Fitment
| Model |
Code |
Year |
Manufacturer |
Engine |
| TRX300 |
RMS020-102837 |
1988 |
HONDA |
281cc |
| TRX300 |
RMS020-102837 |
1989 |
HONDA |
281cc |
| TRX300 |
RMS020-102837 |
1990 |
HONDA |
281cc |
| TRX300 |
RMS020-102837 |
1991 |
HONDA |
281cc |
| TRX300 |
RMS020-102837 |
1992 |
HONDA |
281cc |
| TRX300FW |
RMS020-102837 |
1988 |
HONDA |
281cc |
| TRX300FW |
RMS020-102837 |
1989 |
HONDA |
281cc |
| TRX300FW |
RMS020-102837 |
1990 |
HONDA |
281cc |
| TRX300FW |
RMS020-102837 |
1991 |
HONDA |
281cc |
| TRX300FW |
RMS020-102837 |
1992 |
HONDA |
281cc |
| TRX300FW |
RMS020-102837 |
1993 |
HONDA |
281cc |
Interchanges/Cross References
| Model |
Code |
| 31600-HC4-000 |
HONDA |
| 31600-HC4-010 |
HONDA |
| 8099-1305 |
PIC |
| SH532B-12 |
SHINDENGEN |
| 495278 |
TUCKER ROCKY |
| 49-5278 |
TUCKER ROCKY |
| AHA6019 |
ARROWHEAD (OLD) |
| 31600-HC4-010 |
Honda |
| 31600-HC4-000 |
Honda |
| 31600-HC4-010 |
Honda |
| 31600-HC4-000 |
Honda |
| 31600-HC4-000 |
Honda |
