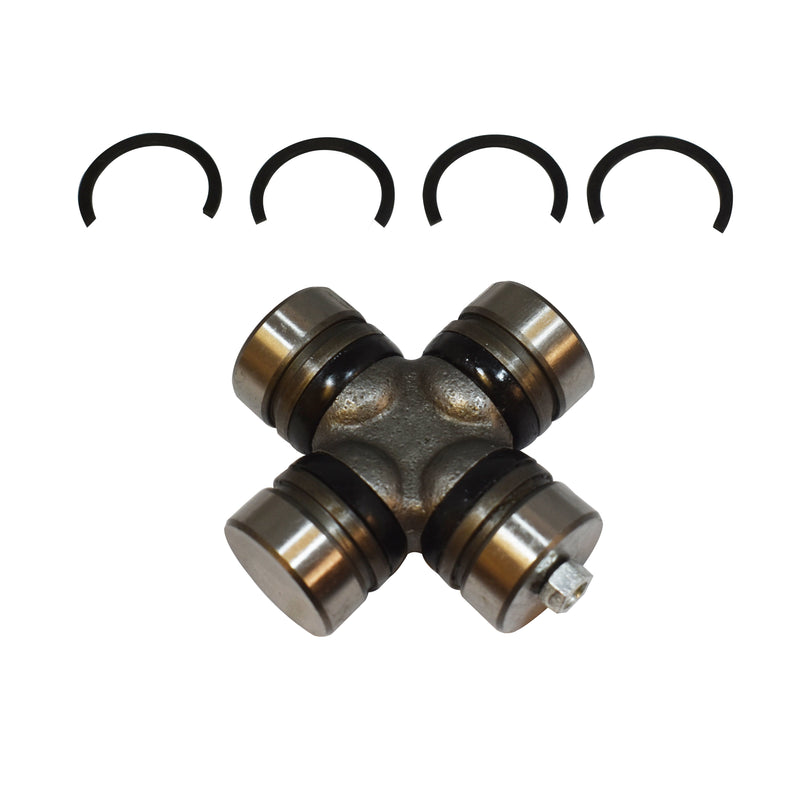

Universal Joint – Kawasaki – 2510/3010/4010 Diesel Rear Axles, See fitment below

Universal Joint – Kawasaki – Front and Rear

• Quality Product
• Made with premium materials

Fits Models

• KAWASAKI (U-Joint) MULE 2520 1993-00 – 2WD- 620cc Std Joint
• KAWASAKI (U-Joint) MULE 3020 2001-03 – 2WD- 620cc Std Joint
• KAWASAKI (U-Joint) MULE 3000 2001-08 – 2WD- 620cc Std Joint
• KAWASAKI (U-Joint) MULE 2500 1994-00 – 2WD- 620cc Std Joint
• KAWASAKI (U-Joint) MULE 2510 1993-99 – 4WD- 620cc- Front Axles Std Joint
• KAWASAKI (U-Joint) MULE 2510 2000-02 – 4WD- 620cc & 950cc Diesel- Rear Axles Std Joint
• KAWASAKI (U-Joint) MULE 2510 1993-99 – 4WD- 620cc- Rear Axles Std Joint
• KAWASAKI (U-Joint) MULE 3010 2001-08 – 4WD- 620cc & 950cc Diesel- Rear Axles Std Joint
• SUZUKI (U-Joint) QUV UTILITY 620 2005-05 – 4WD – Rear Axles Std Joint
• KAWASAKI (U-Joint) MULE 4000 2009-12 – 2WD- 620cc Std Joint
• KAWASAKI (U-Joint) MULE 4010 2009-12 – 4WD- 620cc & 950cc Diesel- Rear Axles Std Joint
• KAWASAKI (U-Joint) TERYX 750 2008-11 – 4WD – Rear Prop Shaft Std Joint
• KAWASAKI (U-Joint) TERYX 750 2012-12 – 4WD – Exc. Teryx4 – Rear Prop Shaft Std Joint

Replaces OEM

• 49050-1060 Kawasaki
• 49050-0034 Kawasaki

Technical Details

SPECIFICATIONS FOR KAWASAKI – UNIVERSAL JOINT

• BEARING DIAMETER:0.985
• STACK-UP DIMENSION:1.728
• STYLE OF SNAP RINGS:Inside Snap Rings
• SNAP RING THICKNESS:0.058
• CROSS TRUNION DIAMETER:0.576
• CROSS SPAN :2.253
• LUBE OPTIONS:1 Lube Fitting in Bearing-Flush

Part Application/Fitment

Interchanges/Cross References
