Suzuki LTF500F Quadrunner Stator Coil For | Replaces 32101–09F20

Name: Suzuki LTF500F Quadrunner Stator Coil For | Replaces 32101–09F20
Brand: ATV-City
SKU: RM01429
Price: 3206.34 DKK
Availability: InStock

RM01429

3.206,34 kr (ex. moms)

Samlinger: Motor Vehicle Parts

Kategori: Electrical , Stator Units , Stators & Gaskets

: Electrical

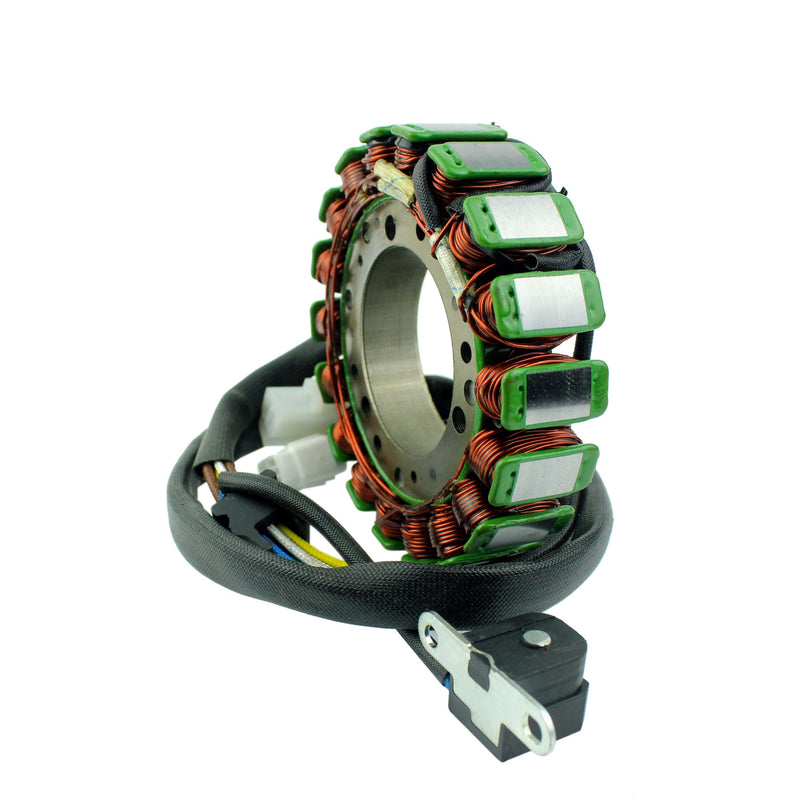

Suzuki LTF500F Quadrunner Stator Coil For | Replaces 32101-09F20

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
Rubber grommet included
All products shipped are tested
One year limited warranty

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Fits Models

Suzuki LTF 500 F Quadrunner 2002 -2002

Replaces OEM

32101-09F20

Technical Details

Dimensions :
Interior diameter : 53mm
Exterior diameter : 115mm
Thickness : 18mm
Length of wires stator to grommet : 120mm
Length of wires grommet to plug : 550mm
Length of pickup coil’s wire to grommet : 85mm

Other specifications :
Number of wires : 8
Number of plugs : 2
Number of pins : 8

Wire to wire resistance :
Alternator : Black between each Black = 0.4ohms +/-20%
Pickup : Green to Blue = 210ohms +/-20%
Source : Yellow to White = 0.2ohms +/-20%

Part Application/Fitment

Model	Code	Year	Manufacturer	Engine
LTF 500 F Quadrunner	RM01429	2002	Suzuki

Interchanges/Cross References

Model	Code
32101-09F20	Suzuki
32101-09F20	Suzuki
32101-09F20	Suzuki
