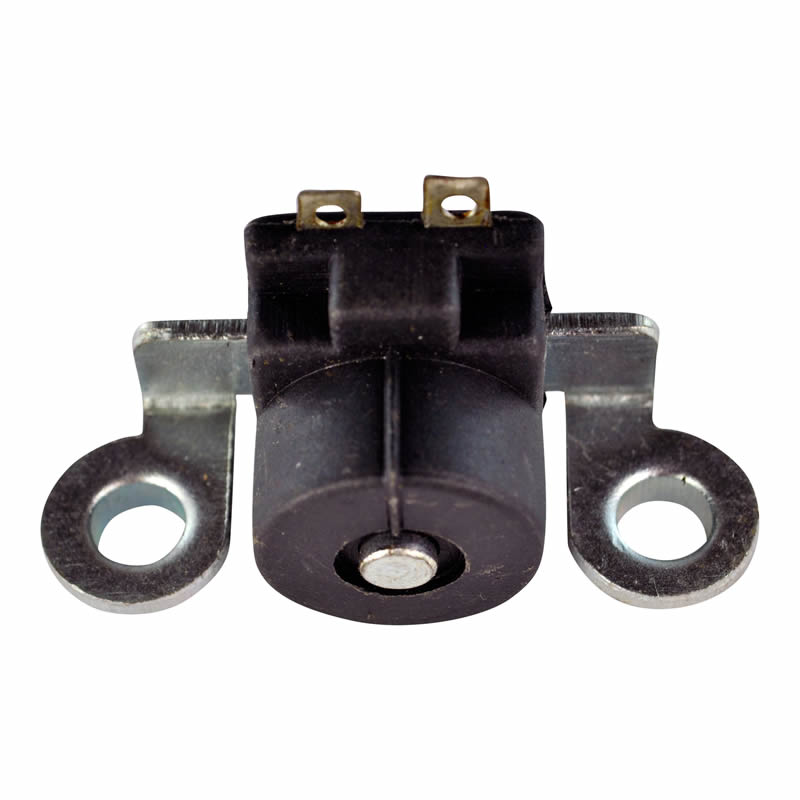

Stator Pick–Up Pulsar Coil For Yamaha YFZ 450 2004–2008

Stator Pick-Up Pulsar Coil For Yamaha YFZ 450 2004-2008

• We offer a brand new pickup/pulser coil for you to repair your stator.
• Often unavailable from the OEM manufacture
• One year limited warranty
• All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Used on

• Yamaha YFZ 450 2004 -2009
• YFZ 450 2012 -2013

Replaces OEM

• 5TG-81410-00-00
• 5TG-81410-01-00
• 5TG-81410-02-00
• 5TG-81410-03-00
• 5TG-81410-10-00

Technical Details

Number of pins : 2
Pickup : Between both pins = 290 ohms+/-20%
Bracket center to center: 35 mm
Not following these instructions may result in damaging the part or other components on your vehicle.

• By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
• Insulate your solders with heat shrink.
• Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
• Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010’’.
• If no spark or erratic spark, switch the wires at the plug.
