Stator For Arctic Cat & Textron | Wildcat Trail / Sport 700 Bearcat 3000 LT Pantera 3000 Norseman 3000 ZR 3000 | 2014–2018

Stator For Arctic Cat & Textron | Wildcat Trail / Sport 700 Bearcat 3000 LT Pantera 3000 Norseman 3000 ZR 3000 | 2014-2018

• Quality Product
• Made with premium materials

Fits Models

• ARCTIC CAT Bearcat 3000 LT – 2016-2017
• ARCTIC CAT Norseman 3000 F/C EFI – 2018
• ARCTIC CAT Pantera 3000 – 2016-2018
• ARCTIC CAT Wildcat Sport 700 – 2015-2017
• ARCTIC CAT Wildcat Trail 700 – 2014-2017
• ARCTIC CAT ZR 3000 EFI F/C   – 2018
• ARCTIC CAT ZR 3000 LXR – 2017
• TEXTRON Wildcat Sport 700 – 2018
• TEXTRON Wildcat Trail 700 – 2018

Replaces OEM

• 3307-028

Technical Details

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 126 mm
Thickness : 20 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 400 mm
Length of pickup coil’s wire to grommet : 40 mm

Other specifications :
Number of wires : 5

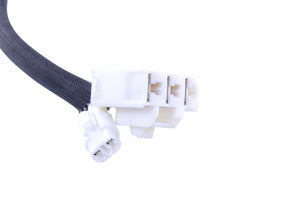

Number of plugs : 2
Number of pins : 5
Number of poles : 18

Wire to wire resistance :
Alternator : Black between each Black = 0.4 ohms +-20%
Pickup : Brown to White = 100 ohms +-20%
Alternator to ground = O.L
