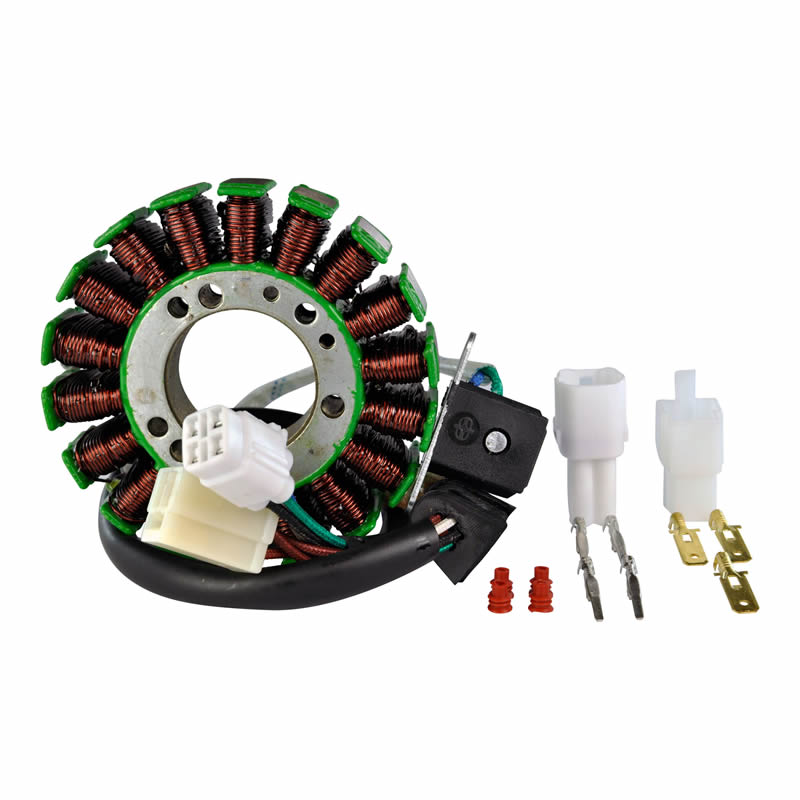

Stator For Arctic Cat, Kawasaki, Polaris + Suzuki | ATVs | 2003-2008
Don’t forget to compliment your new Stator with a brand new Cover Gasket: RM08020
Passer til følgende modeller
- DVX 400 2004-2008
- KFX 400 2003-2006
- LTZ 400 Quadsport Z400 2003-2008
Erstatter OEM
Tekniske detaljer
Number of wires : 7
Number of terminals : 7
Alternator : Brown Between each Brown = 0.9 ohms+/-20%
Alternator : Brown to Ground = O.L. ON DISPLAY
Pickup = Blue to Green = 500 ohms+/-20%
Position Sensor : Black to White 0.3 ohms+/-20%
Before installing your new stator:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator og regulator/rectifier
- Check og repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code then you’re original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement og should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.
Passer specifikt på disse modeller
| Model |
Delnummer |
År |
Mærke |
Motor |
| DVX 400 |
RM01048 |
2004 |
Arctic Cat |
|
| DVX 400 |
RM01048 |
2006 |
Arctic Cat |
|
| DVX 400 |
RM01048 |
2007 |
Arctic Cat |
|
| DVX 400 |
RM01048 |
2008 |
Arctic Cat |
|
| KFX 400 |
RM01048 |
2003 |
Kawasaki |
|
| KFX 400 |
RM01048 |
2004 |
Kawasaki |
|
| KFX 400 |
RM01048 |
2005 |
Kawasaki |
|
| KFX 400 |
RM01048 |
2006 |
Kawasaki |
|
| LTZ 400 Quadsport Z400 |
RM01048 |
2003 |
Suzuki |
|
| LTZ 400 Quadsport Z400 |
RM01048 |
2004 |
Suzuki |
|
| LTZ 400 Quadsport Z400 |
RM01048 |
2005 |
Suzuki |
|
| LTZ 400 Quadsport Z400 |
RM01048 |
2006 |
Suzuki |
|
| LTZ 400 Quadsport Z400 |
RM01048 |
2007 |
Suzuki |
|
| LTZ 400 Quadsport Z400 |
RM01048 |
2008 |
Suzuki |
|
Erstatter følgende originale varenumre
| Varenummer |
Mærke |
| 3409-026 |
Arctic Cat |
| 21003-S006 |
Kawasaki |
| 32101-07G00 |
Suzuki |
| 21003-S006 |
Kawasaki |
| 32101-07G00 |
Suzuki |
| 3409-026 |
ArcticCat |
