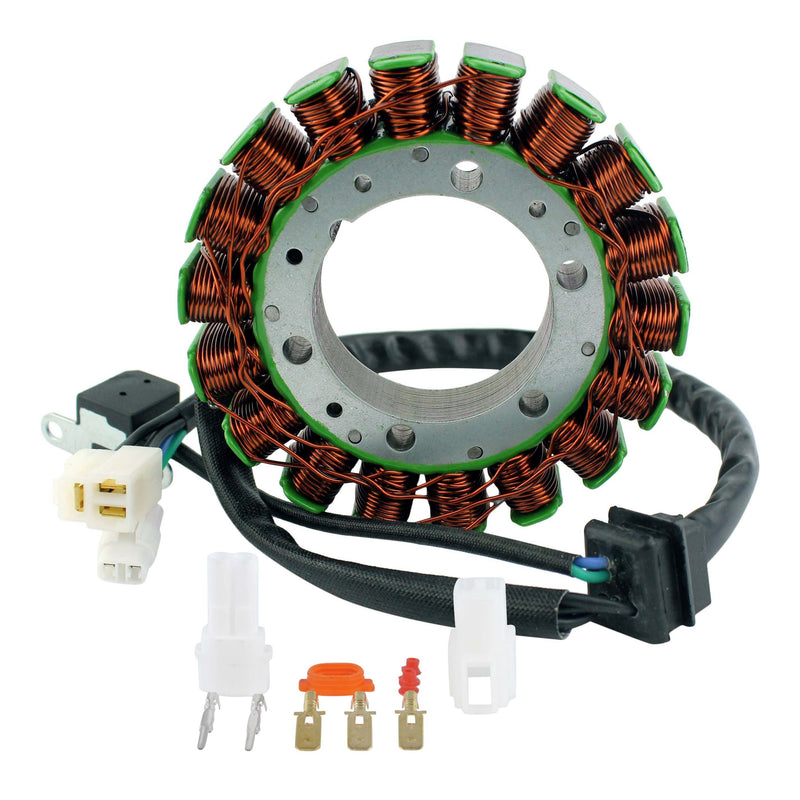

Stator Coil For Suzuki LT–A450X/LT–A500X/King Quad 07–18 Replaces 32101–11H00

Stator Coil For Suzuki LT-A450X/LT-A500X/King Quad 07-18 Replaces 32101-11H00

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• Pick-up Pulsar Coil included
• All product shipped are tested
• One year limited warranty

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Fits Models

• Suzuki LTA 450 X Kingquad 2007 -2010
• LTA 500 X KingQuad 2009 -2009
• LTA 500 X KingQuad 2011 -2016

Replaces OEM

• 32101-11H00

Technical Details

Alternator resistance (Yellow to Yellow) : 0.4 ohms +/- 20%
Pick-up 1 resistance (Blue to White) : 220 ohms +/- 20%
Number of wires : 5
Number of plugs : 2
Number of terminals : 5
Harness length – Stator to grommet (mm) : 150
Harness length – Grommet to plug (mm) : 240
Pick-up coil wire length – Coil to grommet (mm) : 100
Inside diameter (mm) : 53
Outside diameter (mm) : 115
Thickness (mm) : 18

Before installing your new stator

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator/rectifier
• Check and repair any melted wiring.
• Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010?.
