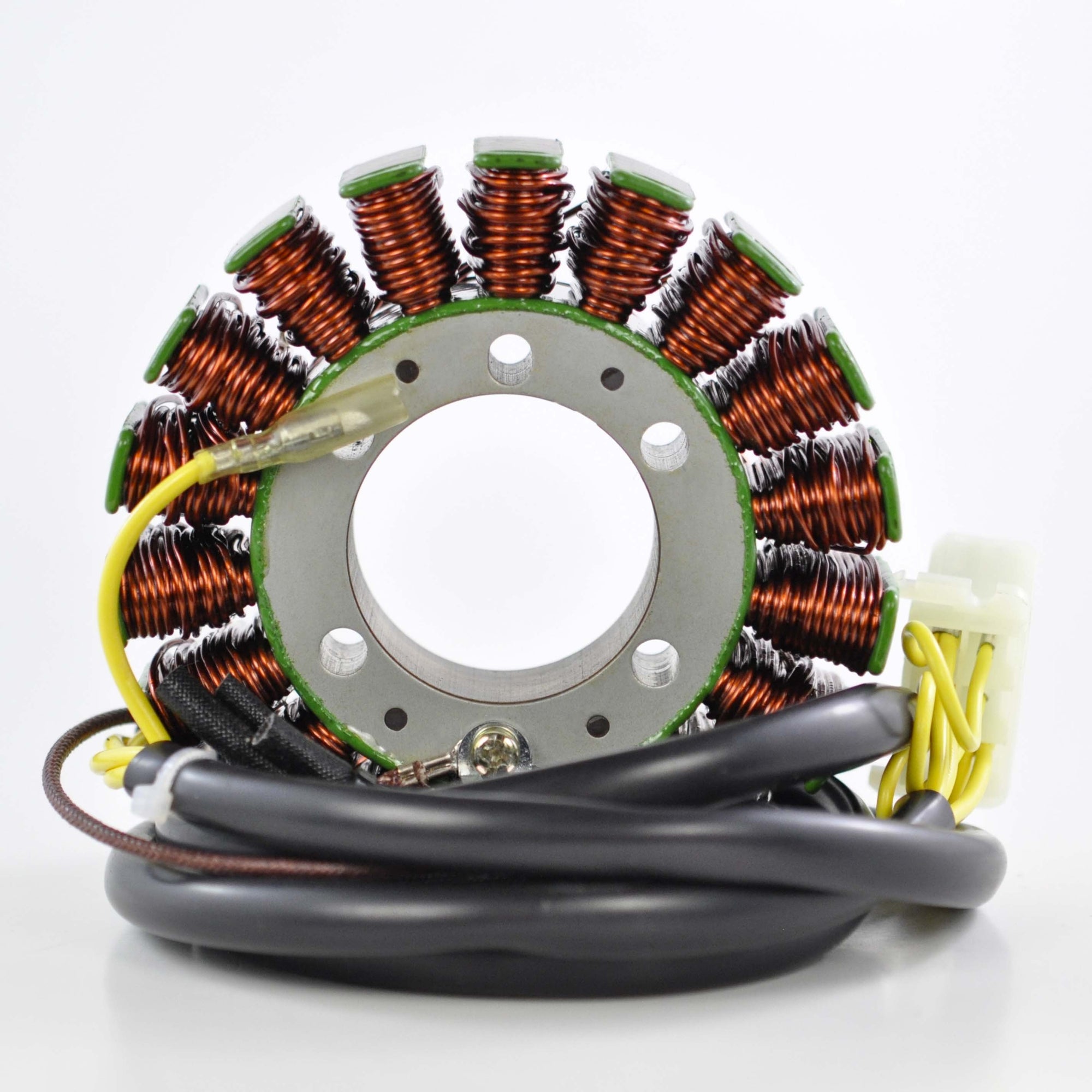

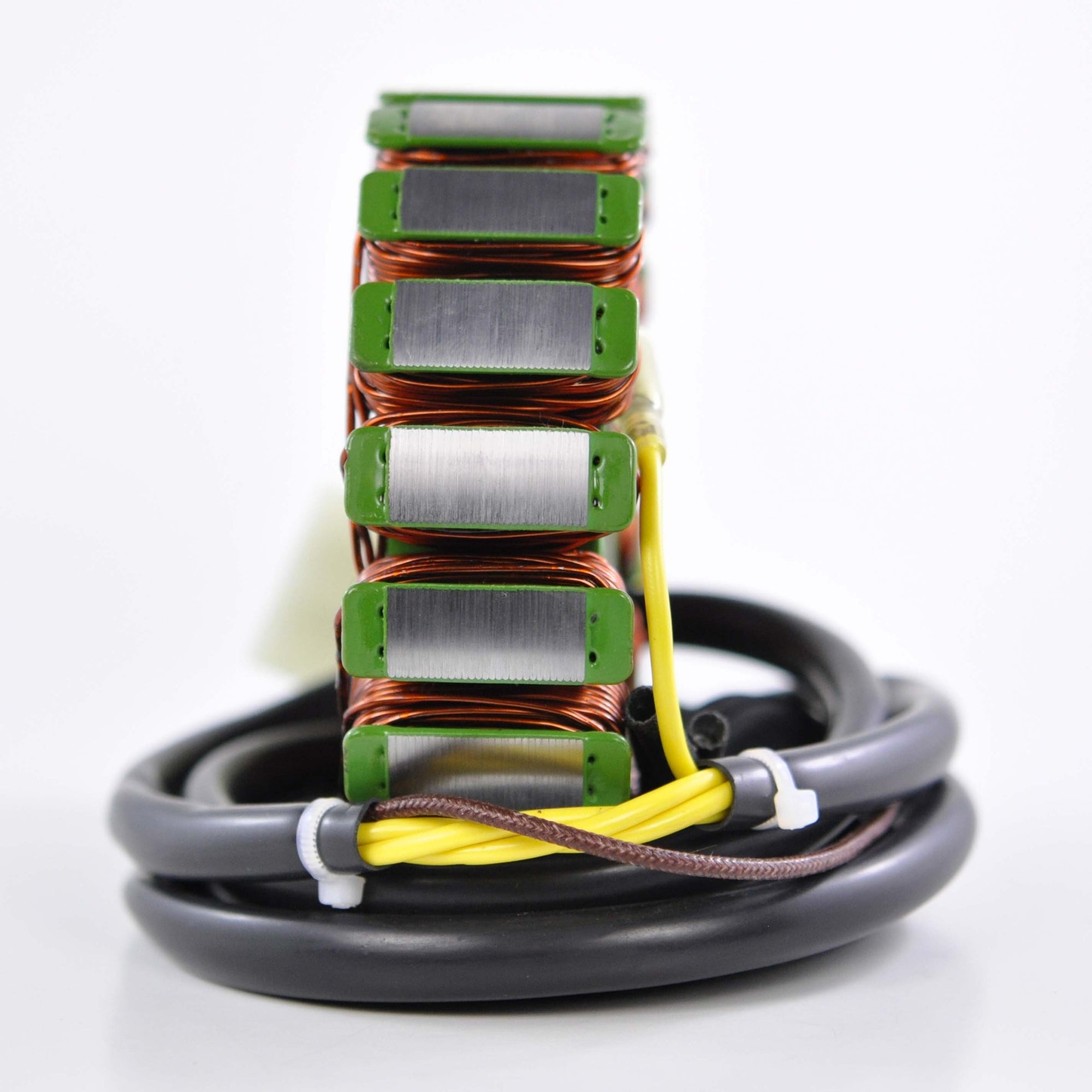

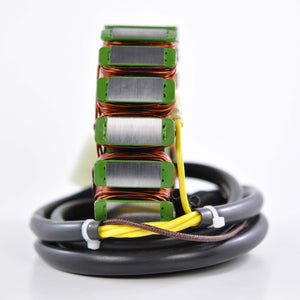

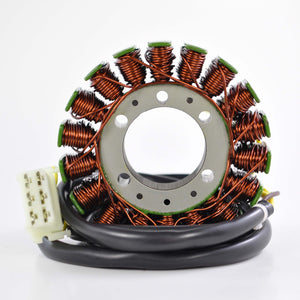

Stator Coil For Polaris | Sportsman 700 EFI | 2004-2006 | 800 EFI | 2005-2007
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.

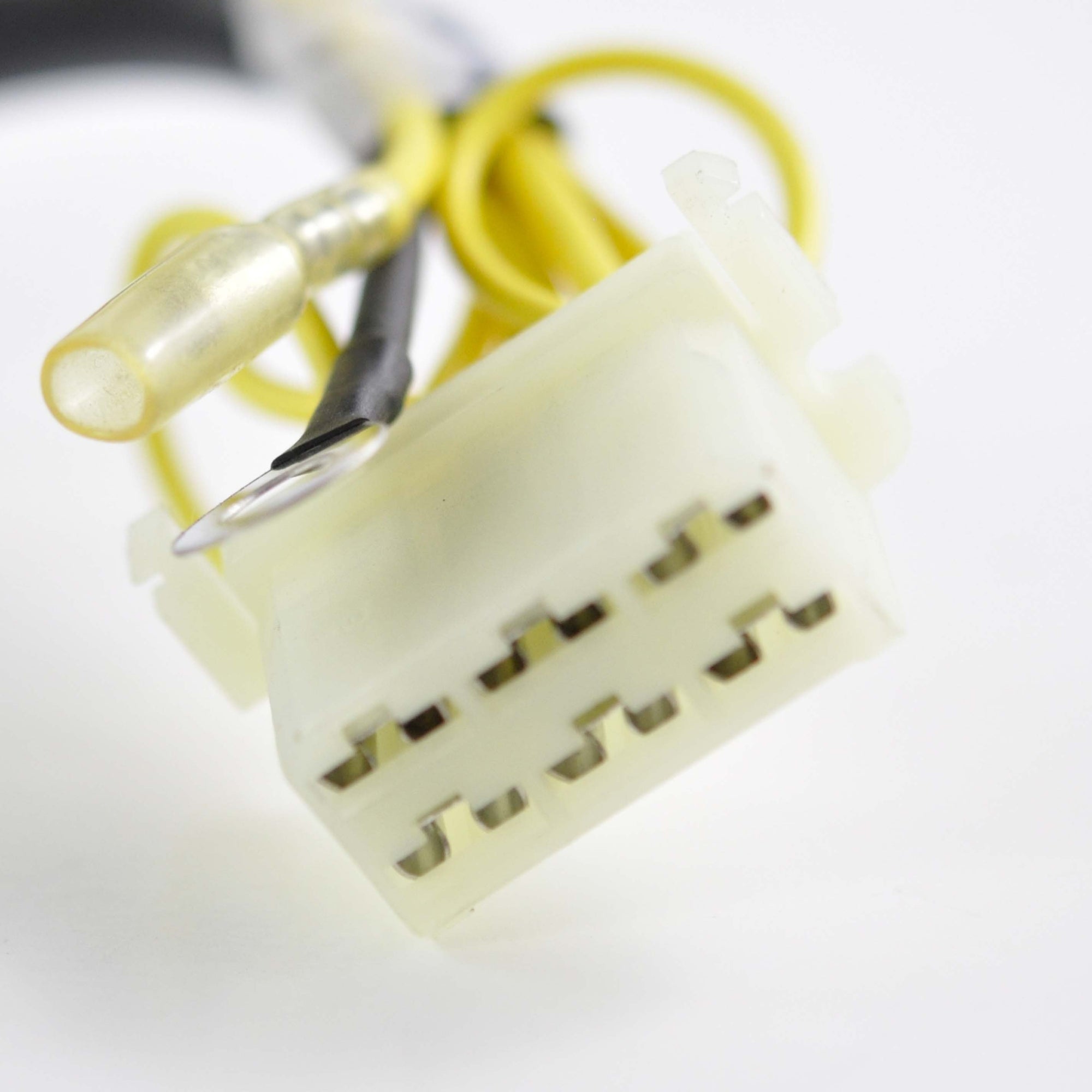

- Connector included
- Rubber grommet included
Fits Models
- POLARIS
- Sportsman 800 INTL (2007)
- Sportsman 700 EFI (2004-2006)
- Sportsman 800 (2005)
- Ranger 700 XP (2005)
Replaces OEM
*18 pole stator . There is more that one possible stator for the sportsman 700 Non-EFI 4×4 2004.
*The RM01057 OD is 107mm, ID 41mm, thickness is 23mm.
Please double check before ordering.
Technical Details
| Unit Type |
Part |
| Part Type |
STATOR COIL |
| Voltage |
12 |
| Dimension |
ID 42mm
OD 108mm
Width (OD) 33.8mm
Width (ID) 25.3mm
# Posts 18
Mounting Holes 4 – 6mm, 1 Oblong 5.6mm x 6.5mm
Cord Length 57 Inches (6-Pin Plug on End)
Cord Length 4 Inches (To Grommet) |
| Brief |
Polaris Sportsman 700 2004-06
Polaris Sportsman 800 2005-06
Polaris Ranger 4×4 700 2005 |
Part Application/Fitment
| Model |
Code |
Year |
Manufacturer |
Engine |
| Ranger 700 XP |
RM01057 |
2005 |
Polaris |
|
| Sportsman 700 EFI |
RM01057 |
2004 |
Polaris |
|
| Sportsman 700 EFI |
RM01057 |
2005 |
Polaris |
|
| Sportsman 700 EFI |
RM01057 |
2006 |
Polaris |
|
| Sportsman 800 EFI |
RM01057 |
2005 |
Polaris |
|
| Sportsman 800 EFI |
RM01057 |
2006 |
Polaris |
|
| Sportsman 800 INTL |
RM01057 |
2007 |
Polaris |
|
Interchanges/Cross References
| Model |
Code |
| 4010911 |
Polaris |
| 21-559 |
RICKS MOTORCYCLE |
| 4010911 |
Polaris |
