Road Legal Kit | YAMAHA | Grizzly 700 2019-2024 | Quadtech
- This kit will convert your utility ATV to be legal for use on British roads.
- It contains parts necessary to meet the requirements of the VOSA / MSVA test where required for PLG registration.
- Under latest VOSA regulations, all Agricultural registered vehicles used on the road by farmers need to be fitted with headlights, indicators, horn & brake / tail lights.
- Although as a rule quads come fitted with a brake light, some Honda quads require fitment
Fits Models
Yamaha
- YFM 700 Grizzly 2019 -2024

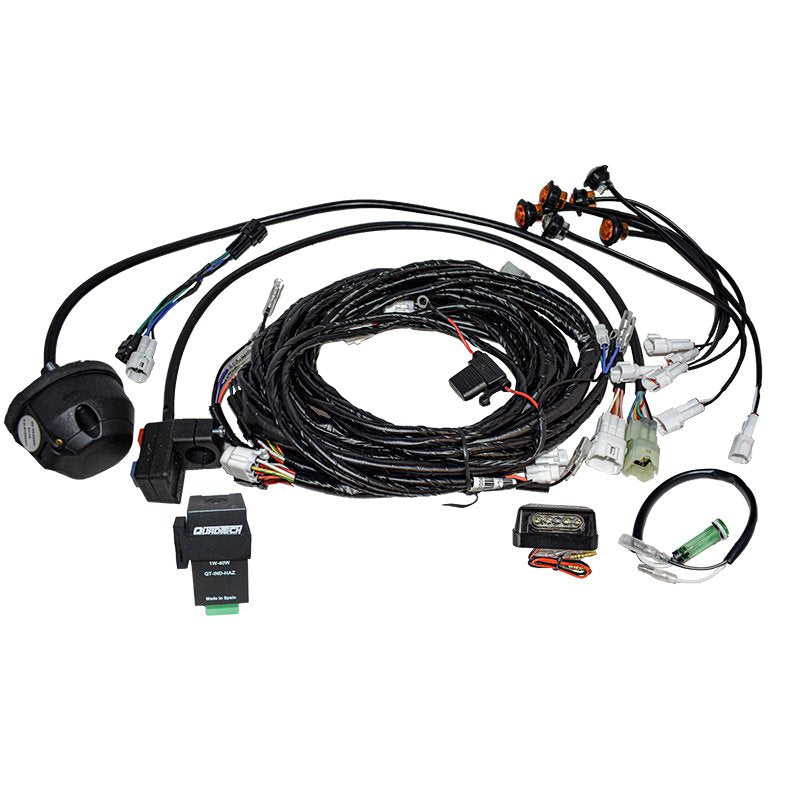

Kit Contains:
- LED Indicators, Amber Colour, IP rated
- LED Sidelights, White Colour, IP rated
- LED Numberplate Light, White Colour, IP rated
- Indicators Warning Light, IP rated
- Trailer Socket, 7-PIN, IP rated
- Flasher & Warning Lights Control Unit
- Handlebar Switch (LEONELLI 044)
- Main wiring harness with 20A fuse
The kit provides connections for front and rear brake light switches if required, with the option of choosing a front or rear power source for them.
Most modern quads have excellent headlights as standard, so only require indicators, sidelights and horn.
The standard sidelights & indicators in the kit are single moulding 20mm LED lamps with exceptionally long life, meaning no bulbs to change.
They mount through the plastic of the front and rear fenders, so are nearly impossible to knock off or damage and don’t get in the way, standard bulb type indicators can be provided however if required.
Utility ATVs have high quality switchgear as standard with a large range of functions built in.
Made of similar plastic, with the same waterproof connectors, our OEM factory look switchgear allows easy operation of indicators, horn and hazard lights.
Connection is made directly to the battery through a fused connector, and into the tail light.
Warning lamps for Indicators and sidelights are also included in this kit.
FOR FITTING DETAILS, PLEASE FOLLOW THE MANUAL, AVAILABLE IN EVERY KIT and FROM “Download pdf” TAB ON TOP OF THIS DESCRIPTION.
Additional accessories like mirrors, mounts & horns are also available, please see below.
Technical Details
