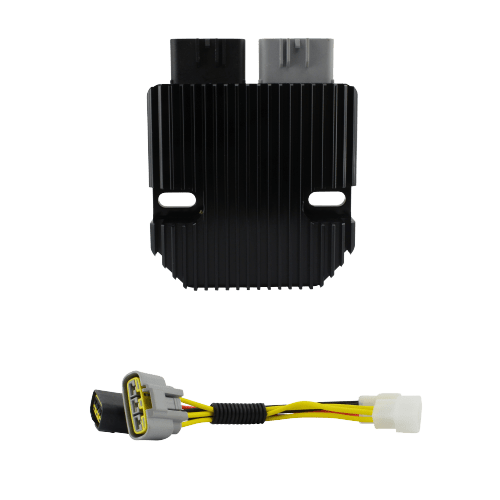

REVOLT Regulator Rectifier for Triumph & Ducati

  • Runs 50% cooler than OEM
  • REVOLT is the only voltage regulator rectifier on the market with a redesigned rectifier circuit to considerably improve reliability.
  • Dissipate heat 45% better than OEM
  • REVOLT is engineered, designed, and manufactured in USA under strict USA-based quality control standards.
  • REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator again.
  • Not to be used with any Lithium Battery

Click here to activate your lifetime warranty

Fits Models

  • Triumph 600 650 955 1050 1994-2020
  • Ducati 749 848 999 1098 1000 1198 2003-2015

Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY!

Technical Details

REVOLT Voltage Regulator Rectifier:
Width: 103 mm
Length: 102 mm
Height: 26 mm
Fixation holes center to center: 78 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85°C

Harness:
Wires length: 150 mm
Number of yellow wires: 3
Number of red wires: 1
Number of green wires: 1
Number of plugs: 3

Part Application/Fitment

Model Code Year Manufacturer Engine

Interchanges/Cross References

Model Code
540.4.019.1A Ducati
540.4.019.1A Ducati
540.4.019.1A Ducati
540.4.019.1A Ducati
540.4.019.1A Ducati
540.4.019.1A Ducati
540.4.019.1A Ducati
540.4.019.1A Ducati
540.4.019.1A Ducati
540.4.019.1A Ducati
540.4.019.1A Ducati
540.4.019.1A Ducati
540.4.019.1A Ducati
540.4.019.1A Ducati
540.4.019.1A Ducati
540.4.019.1A Ducati
T1304040 Triumph
T1300560 Triumph
T1304040 Triumph
T1300560 Triumph
T1304040 Triumph
T1304040 Triumph
T1300560 Triumph
T1304040 Triumph
T1300560 Triumph
T1304040 Triumph
T1300560 Triumph
T1304040 Triumph
T1304040 Triumph
T1300560 Triumph
T1304040 Triumph
T1304040 Triumph
T1300560 Triumph
T1304040 Triumph
T1300560 Triumph
T1304040 Triumph
T1304040 Triumph
T1300560 Triumph
T1304040 Triumph
T1304040 Triumph
T1300560 Triumph
T1304040 Triumph
T1304040 Triumph T1300560 Triumph
