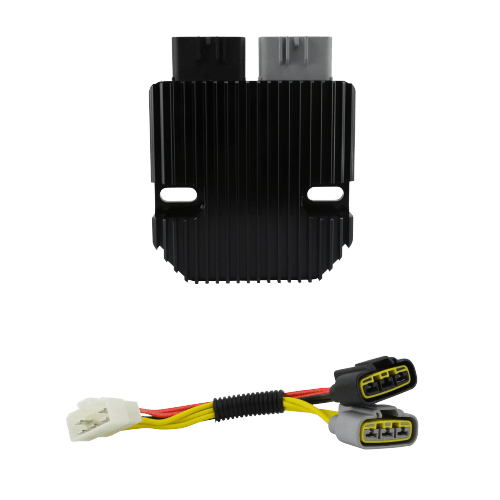

REVOLT Voltage Regulator Rectifier For Suzuki GSXR 600 750 | Hayabusa 1300 1500 | Intruder LTF500 Quadrunner 1996–2007

• Runs 50% cooler than OEM
• REVOLT is the only voltage regulator rectifier on the market with a redesigned rectifier circuit to considerably improve reliability.
• Dissipate heat 45% better than OEM
• REVOLT is engineered, designed, and manufactured in USA under strict USA-based quality control standards.
• REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator again.
• Not to be used with any Lithium Battery

Click here to activate your lifetime warranty

Fits Models

• Suzuki GSXR 600 750 | Hayabusa 1300 1500 | Intruder LTF500 Quadrunner 1996-2007

Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY!

Technical Details

REVOLT Voltage Regulator Rectifier:
Width: 103 mm
Length: 102 mm
Height: 26 mm
Fixation holes center to center: 78 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85°C

Harness:
Wires length: 150 mm
Number of yellow wires: 3
Number of red wires: 2
Number of black wires: 2
Number of plugs: 2
