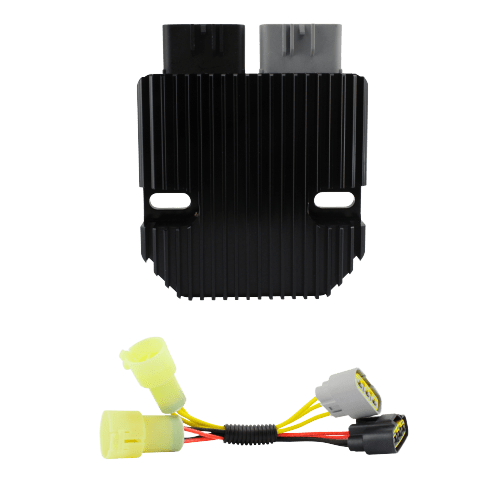

REVOLT Voltage Regulator Rectifier for Kawasaki KFX 700 | KLF 300 KVF 300 360 400 650 700 | Suzuki LTV 700 1999–2013

• Runs 50% cooler than OEM
• REVOLT is the only voltage regulator rectifier on the market with a redesigned rectifier circuit to considerably improve reliability.
• Dissipate heat 45% better than OEM
• REVOLT is engineered, designed, og manufactured in USA under strict USA-based quality control standards.
• REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator again.
• Not to be used with any Lithium Battery

Click here to activate your lifetime warranty

Passer til følgende modeller

• Kawasaki Many Years
• KFX 700
• KLF 300
• KVF 300
• KVF360
• KVF400
• KVF650
• KVF700
• Suzuki
• LTV 700 1999-2013

Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery og have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY!

Tekniske detaljer

REVOLT Voltage Regulator Rectifier :
Width: 103 mm
Length: 102 mm
Height: 26 mm
Fixation holes center to center: 78 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85°C

Harness:
Wires length: 150 mm
Number of yellow wires: 3
Number of red wires: 1
Number of green wires: 1
Number of plugs: 3
