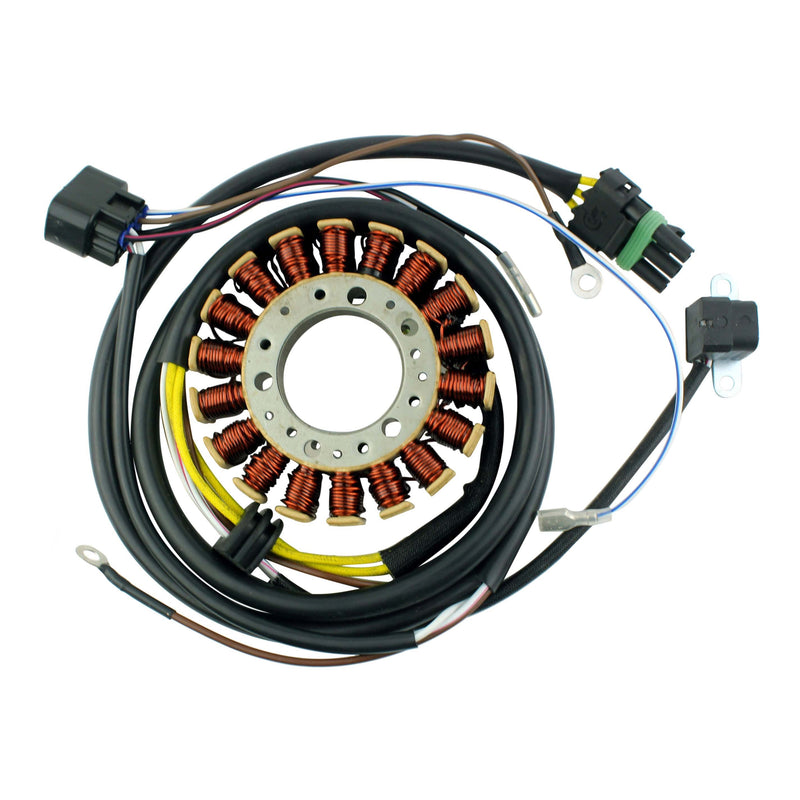

Polaris Trail Blazer 330 | Trail Boss 330 Stator Coil For | Replaces 3090278
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
- One year limited warranty
Fits Models
- Polaris Trail Blazer 330 2010 -2013
- Trail Boss 330 2010 -2013
Replaces OEM
Technical Details
Dimensions :
Interior diameter : 41mm
Exterior diameter : 103mm
Thickness : 13mm
Length of wires stator to grommet : 110mm
Length of wires grommet to plug : 800mm/1000mm
Length of pickup coil’s wire to grommet : 155mm
Other specifications :
Number of wires : 10
Number of plugs : 7
Number of pins : 14
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Pickup : White to White/Red = 510ohms +/-20%
Part Application/Fitment
| Model |
Code |
Year |
Manufacturer |
Engine |
| Trail Blazer 330 |
RM01402 |
2010 |
Polaris |
|
| Trail Blazer 330 |
RM01402 |
2011 |
Polaris |
|
| Trail Blazer 330 |
RM01402 |
2012 |
Polaris |
|
| Trail Blazer 330 |
RM01402 |
2013 |
Polaris |
|
| Trail Boss 330 |
RM01402 |
2010 |
Polaris |
|
| Trail Boss 330 |
RM01402 |
2011 |
Polaris |
|
| Trail Boss 330 |
RM01402 |
2012 |
Polaris |
|
| Trail Boss 330 |
RM01402 |
2013 |
Polaris |
|
Interchanges/Cross References
| Model |
Code |
| 3090278 |
Polaris |
| 3090278 |
Polaris |
