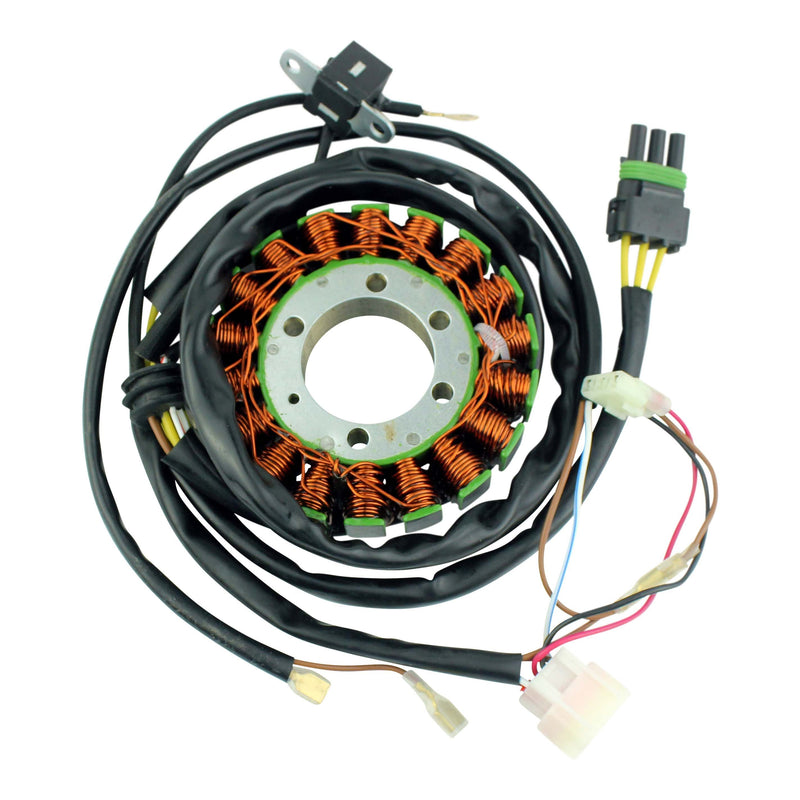

Polaris Scrambler 500 | Sportsman 400 Stator Coil For Replaces 3089249

Polaris Scrambler 500 | Sportsman 400 Stator Coil For Replaces 3089249

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested
• One year limited warranty

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Used on

• Polaris Scrambler 500 2004 -2006
• Scrambler 500 2×4 Int’l 2007 -2008
• Scrambler 500 4×4 2010 -2012
• Scrambler 500 4×4 Carb 2007 -2009
• Scrambler 500 4×4 INTL 2011 -2012
• Scrambler 500 4×4 Int’l 2010 -2010
• Sportsman 400 2004 -2004
• Sportsman 500 2004 -2004
• Sportsman 500 HO 2004 -2004

Replaces OEM

• 3089853

Technical Details

Dimensions :
Interior diameter : 41mm
Exterior diameter : 108mm
Thickness : 18mm
Length of wires stator to grommet : 145mm
Length of wires grommet to plug : 950mm
Length of pickup coil’s wire to grommet : 95mm

Other specifications :
Number of wires : 7
Number of plugs : 5

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Pickup : White to White/Red = 195ohms +/-20%
