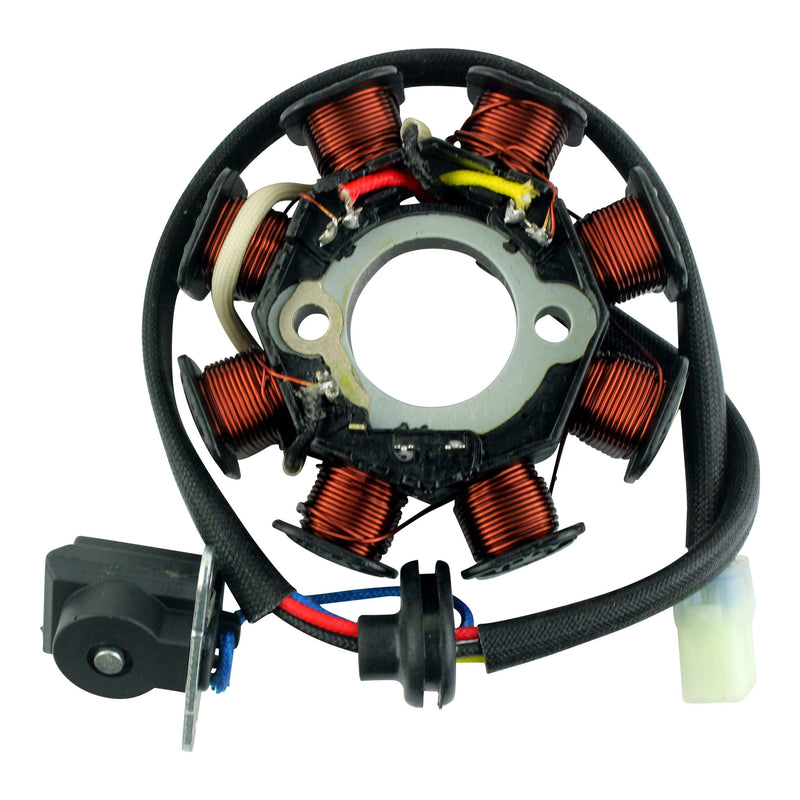

Polaris Outlaw Sportsman 50 90 Stator Coil For | Replaces 0453559

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested
• One year limited warranty

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Used on

• Polaris Outlaw 50 2008 -2017
• Polaris Outlaw 90 2007 -2014
• Polaris Outlaw 90 2016 -2016
• Polaris Predator 50 2007 -2007
• Polaris Sportsman 90 2007 -2014
• Polaris Sportsman 90 2016 -2016

Replaces OEM

• 0453559
• 0454949

Technical Details

Dimensions :
Interior diameter : 29mm
Exterior diameter : 88mm
Thickness : 12mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 300mm
Length of pickup coil’s wire to grommet : 30mm

Other specifications :
Number of wires : 4
Number of plugs : 1
Number of pins : 4

Wire to wire resistance :
Alternator : Red to Black = 1ohms +/-20%
Alternator : Yellow to Black = 0.8ohms +/-20%
Pickup : Blue to Black = 120ohms +/-20%

Before installing your new stator

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator/rectifier
• Check and repair any melted wiring.
• Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original. `
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.
