MOSFET Regulator Rectifier For Polaris RZR 900/1000 ACE Sportsman Scrambler

MOSFET Regulator Rectifier For Polaris RZR 900/1000 ACE Sportsman Scrambler

Don’t settle for an unreliable charging system!

2012-2018 RZR 900/1000 models are well known for repeated voltage regulator failures due to manufacturing quality issues and poor placement on the vehicle.

Fix and forget the problem with RMS Lab’s advanced technologies!

With increased demand for an alternative solution to subpar OEM parts and unproven manufacturer recalls, we had our RMS Labs’ engineers tackle the problem.

They came up with a permanent solution to give Polaris RZR owners confidence in their vehicles once and for all.

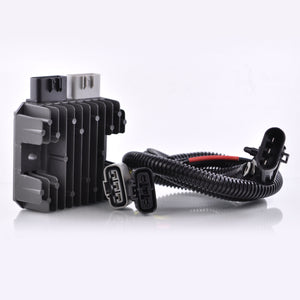

This STAGE 2 Kit Includes:

• Meets & exceeds Polaris RZR regulator recall Z-16-01-C specifications.
• Improved heavy duty Polaris recommended voltage regulator housing
• RMSTATOR renowned MOSFET regulation circuit for low operating temperature.
• Plug & Ride Design
• Automotive grade stock location wiring harness with OEM-quality heavy-duty connectors
• 1 year warranty

You might want to consider our other kits

• RMS020-103775 – Ultimate Heavy Duty Mosfet Voltage Regulator Performance Upgrade STAGE 3 – Front Hood Relocation Kit

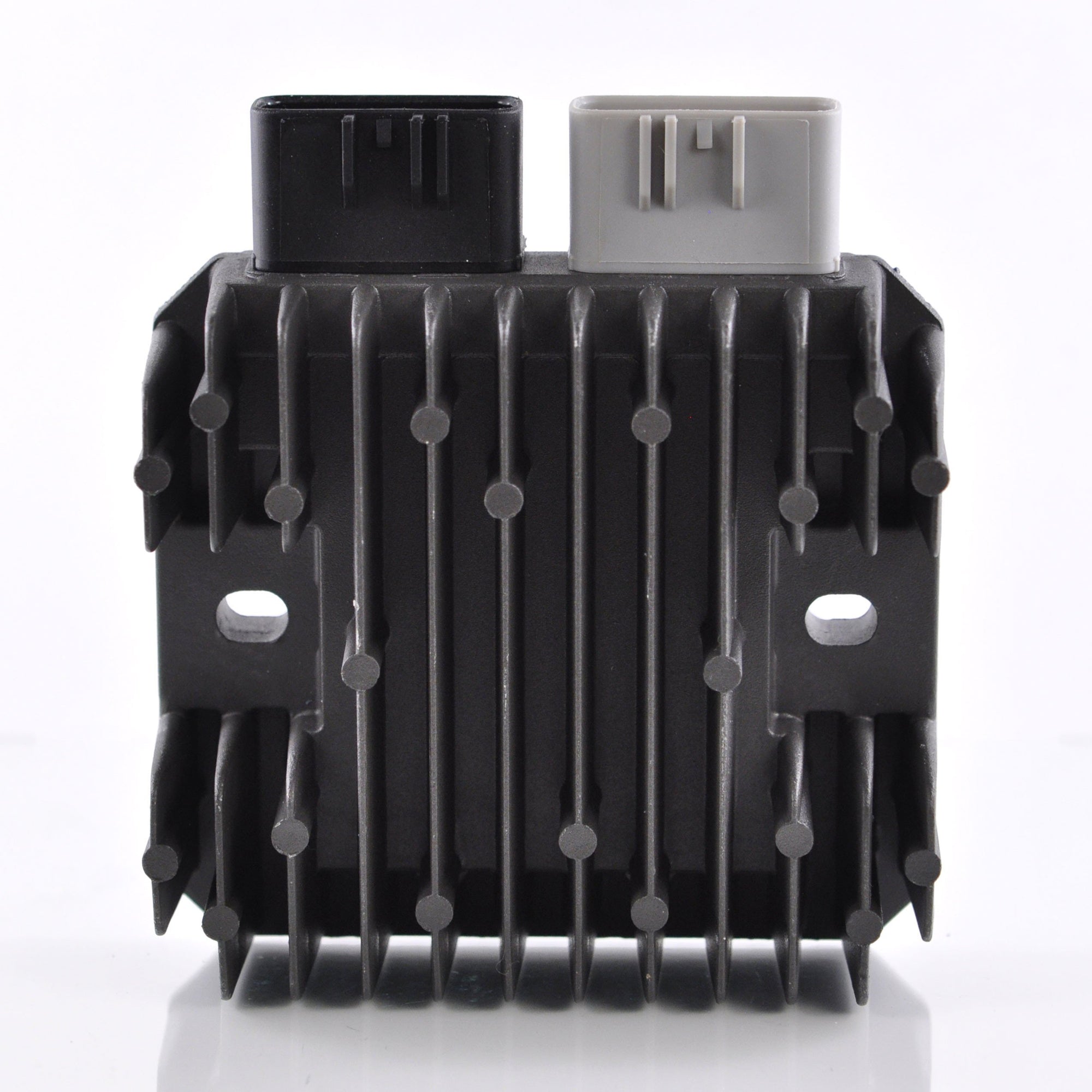

Significantly decreases internal operating temperature with highly efficient MOSFET transistor regulation circuit.

This technology runs much cooler than the OEM silicon rectifier regulation circuit and requires much less power to operate.

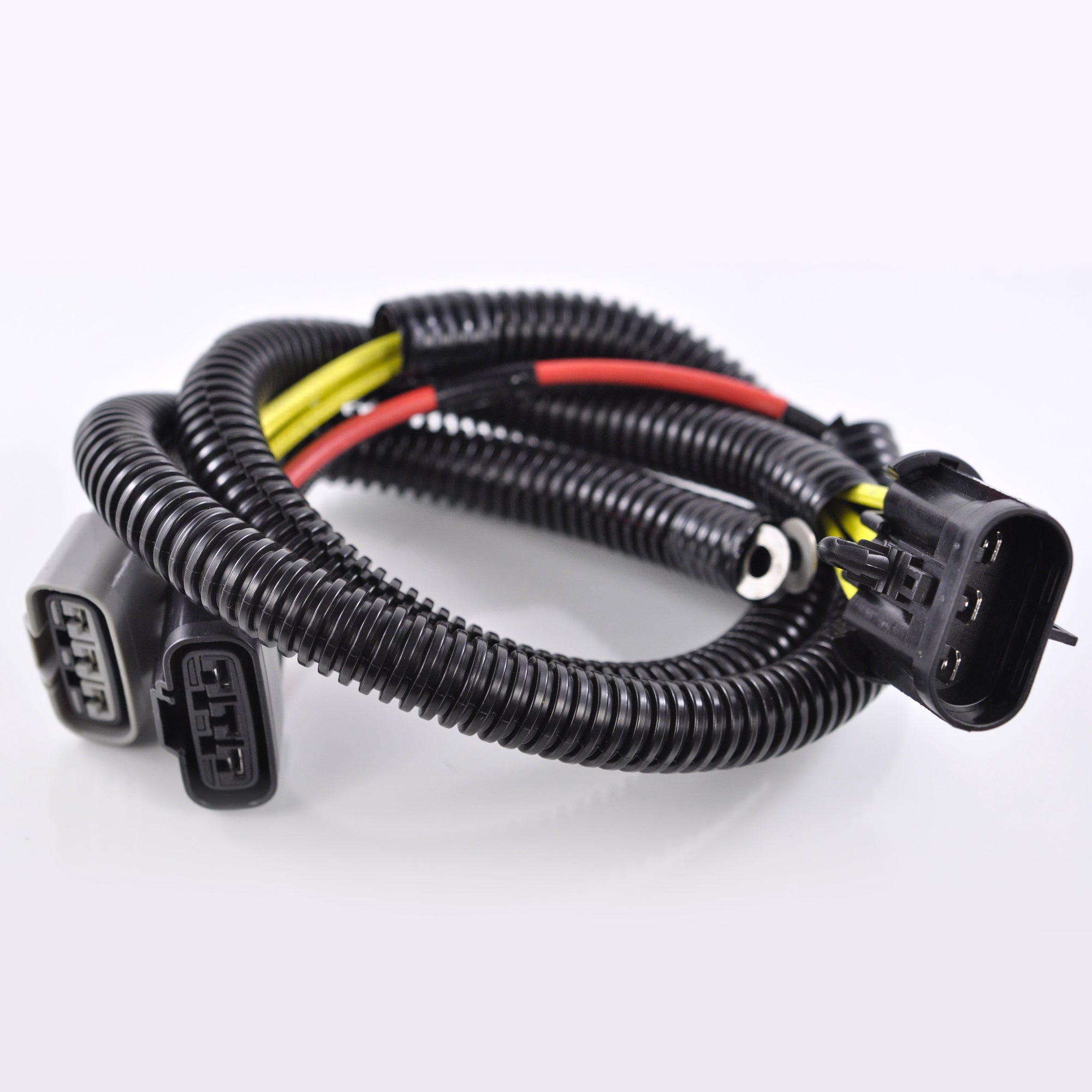

Automotive grade wiring harness with OEM-quality heavy-duty connectors

Made with the same Delphi connectors as OEM Polaris parts, our wiring harnesses are manufactured in a factory with controlled quality processes.

They use the same Cross-Link braided copper wire as the OEM parts, and resist heat, oil, acid, gas and more with very low electrical resistance.

Plug & Ride design

Our voltage regulator housings are manufactured to OEM specifications for a fast and easy installation.

WARNING : This product is suitable for certain 2016-2017 models whose regulator connects directly to the main harness of the vehicle without conversion harness.

If you own a 2016 RZR 1000 or any other RZR from a year prior to 2016, you must use a conversion harness to install this regulator.

Fits Models

• POLARIS
  • ACE 500 (2017-2018)
  • ACE570 EFI (2017-2018)
  • ACE 570 EFI Euro (2017-2018)
  • ACE 900 (2017-2018)
  • Scrambler Tractor1000 (2018)
  • Scrambler 1000 XP Euro (2017-2018)
  • Scrambler 1000XP (2017-2018)
  • Scrambler 850 (2017-2018)
  • Sportsman 850 (2017-2018)
  • Sportsman ACE (2017)
  • Sportsman 850 (2017-2018)
  • Sportsman 1000 (2017-2018)
  • RZR 1000 (2014-2018)
  • RZR 4 1000 (2014-2018)
  • RZR 4 900 (2015-2017)
  • General (2016-2018)
  • Ranger 500/570/900/100 (2014-2018)

Replaces OEM

• POLARIS
  • 2206367
  • 4013247
  • 4013904
  • 4014029
  • 4014856
  • 4015229
  • 4016868

Technical Details

Dimensions:
Width: 110 mm
Length: 121 mm
Height: 43 mm
Fixation holes center to center: 85 mm

Other specifications:
Number of plugs: 1
Number of pins: 5
Number of wires: 5
Wires Length: 580 mm & 600 mm
Minimum Charging Voltage: 14.5V +- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: 15V
Operation Temperature: -20? to 85?
