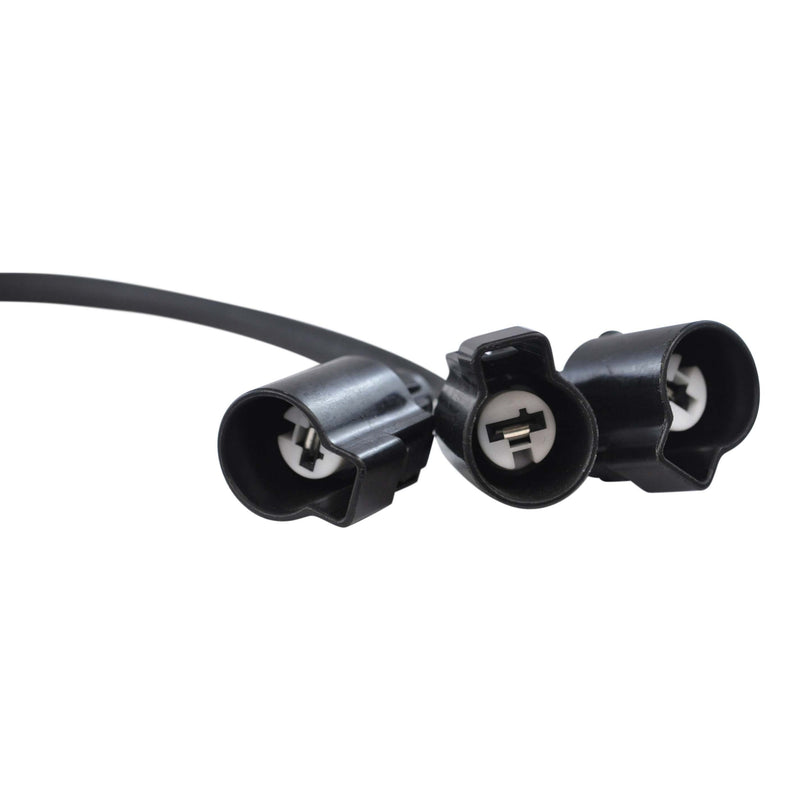

Kawasaki KRF750 Teryx | KVF750 Brute Force Stator Coil
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- All products shipped are tested
- One year limited warranty
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Fits Models
- Kawasaki KVF 750 Brute Force 2008 -2008
- Kawasaki KVF 750 Brute Force 2010 -2011
- Kawasaki KRF 750 Teryx 2009 -2009
Replaces OEM
Technical Details
Dimensions:
Interior diameter: 55mm
Exterior diameter: 115 mm
Thickness: 18mm
Length of wires stator to grommet: 155mm
Length of wires grommet to plug: 740mm
Other specifications:
Number of wires: 3
Number of plugs: 3
Number of pins: 3
Wire to wire resistance:
Alternator: = 0.4ohms +/-20%
Part Application/Fitment
| Model |
Code |
Year |
Manufacturer |
Engine |
| KRF 750 Teryx |
RM01231 |
2008 |
Kawasaki |
|
| KRF 750 Teryx |
RM01231 |
2009 |
Kawasaki |
|
| KRF 750 Teryx |
RM01231 |
2010 |
Kawasaki |
|
| KRF 750 Teryx |
RM01231 |
2011 |
Kawasaki |
|
| KRF 750 Teryx |
RM01231 |
2012 |
Kawasaki |
|
| KRF 750 Teryx |
RM01231 |
2012 |
Kawasaki |
|
| KVF 750 Brute Force i |
RM01231 |
2008 |
Kawasaki |
|
| KVF 750 Brute Force i |
RM01231 |
2009 |
Kawasaki |
|
| KVF 750 Brute Force i |
RM01231 |
2010 |
Kawasaki |
|
| KVF 750 Brute Force i |
RM01231 |
2011 |
Kawasaki |
|
Interchanges/Cross References
| Model |
Code |
| 21003-0071 |
Kawasaki |
| 21003-0071 |
Kawasaki |
| 21003-0099 |
Kawasaki |
| 21003-0077 |
Kawasaki |
| RM01046 |
RM Stator |
