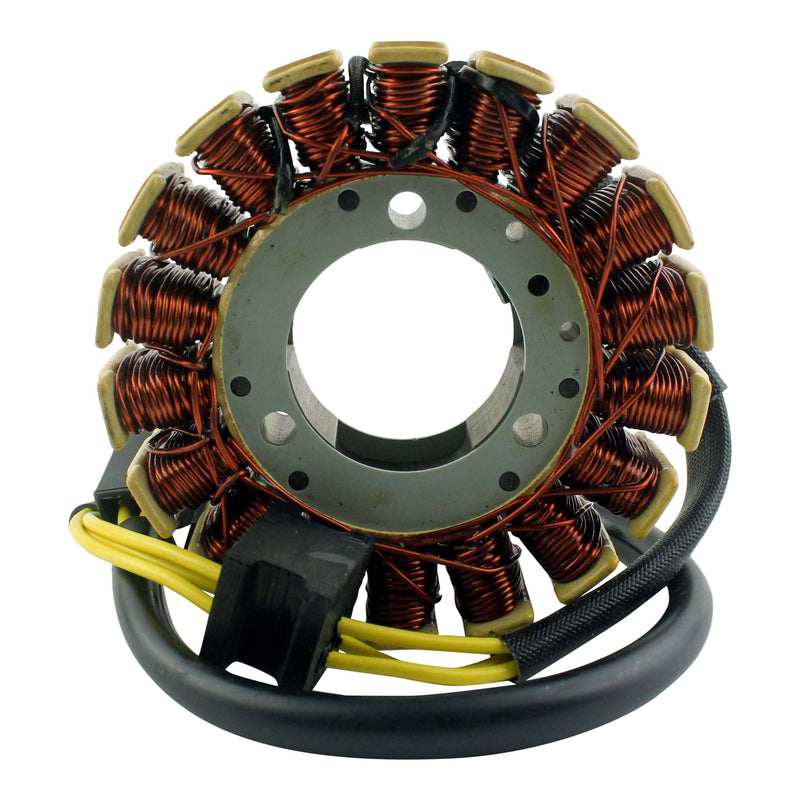

Kawasaki KLF220 | KLF250 Bayou Stator Coil | Replaces 21003–1287

Kawasaki KLF220 | KLF250 Bayou Stator Coil | Replaces 21003-1287

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All products shipped are tested
• One year limited warranty

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Fits Models

• Kawasaki KLF 220 Bayou 1996 -2002
• Kawasaki KLF 250 Bayou 2003 -2011

Replaces OEM

• 21003-1287

Technical Details

Dimensions :
Interior diameter : 36mm
Exterior diameter : 93mm
Thickness : 18mm
Length of wires stator to grommet : 90mm
Length of wires grommet to plug : 240mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
