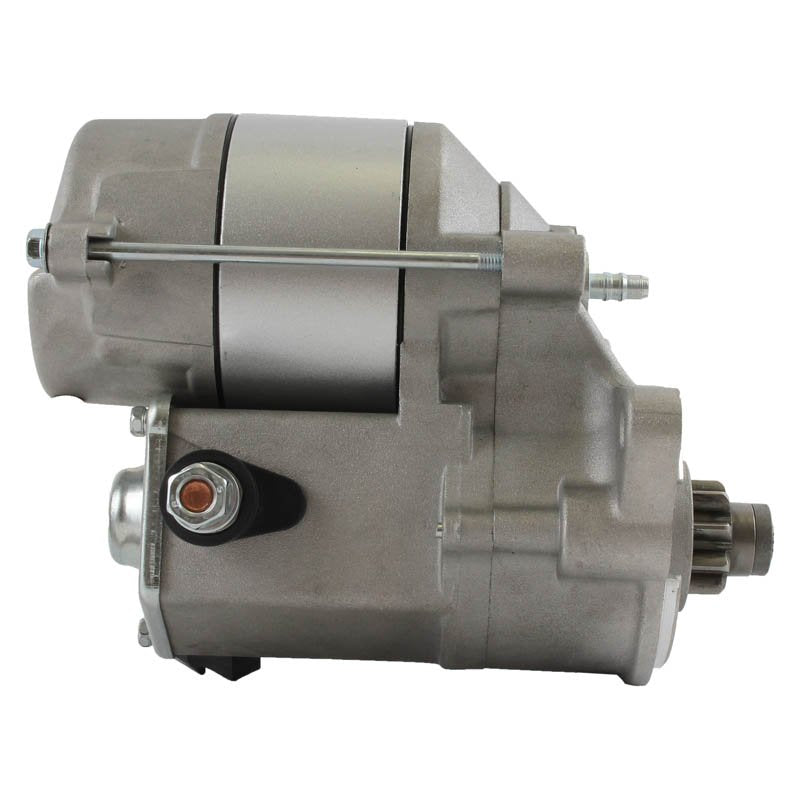

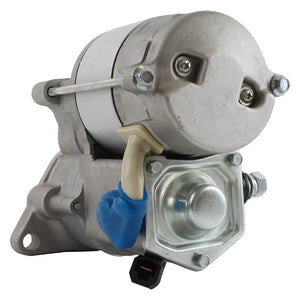

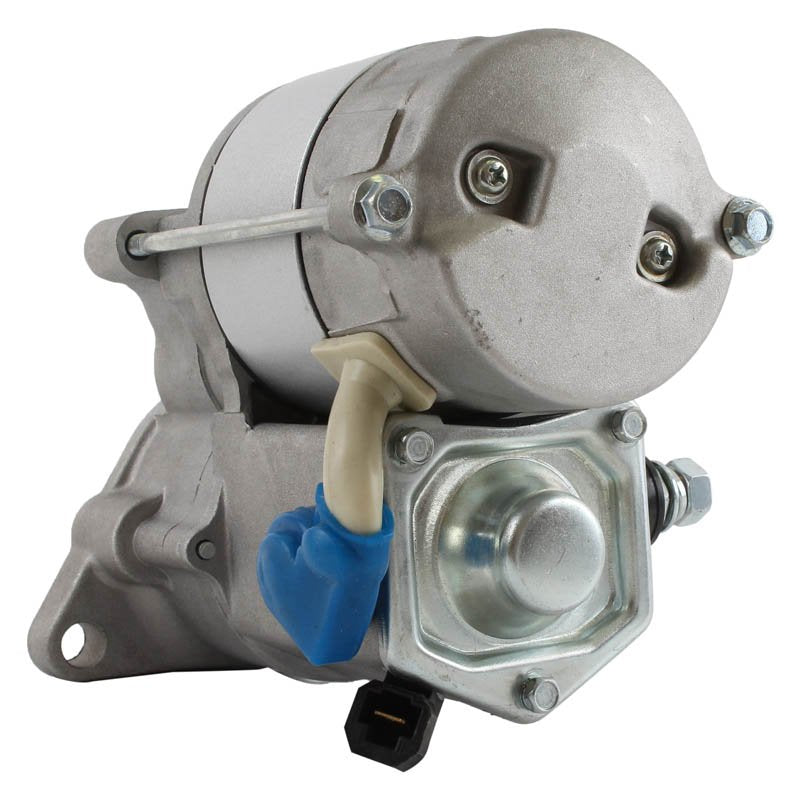

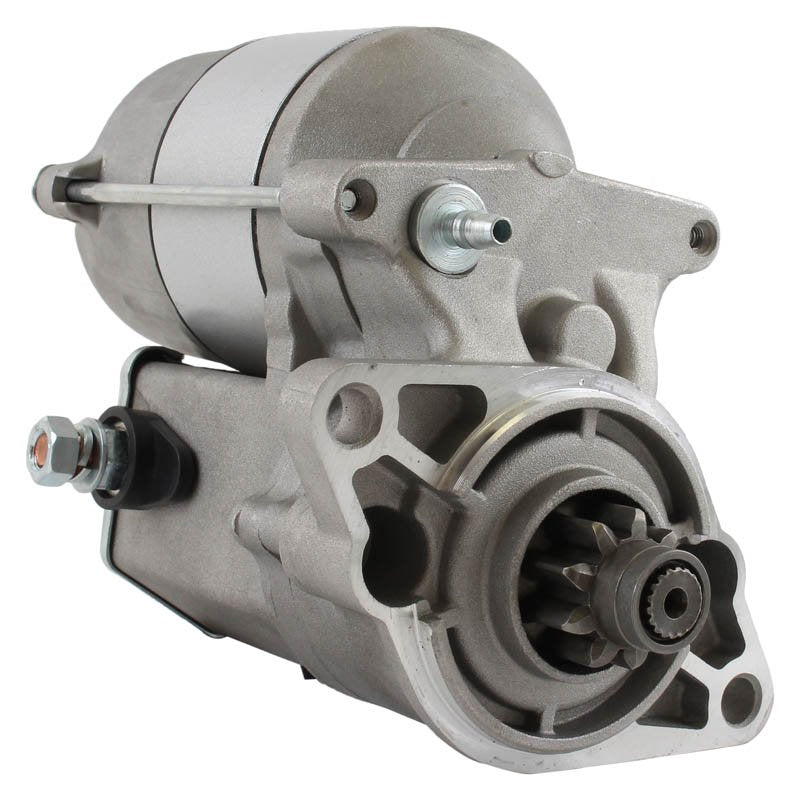

Kawasaki KAF620 Mule 4000 | 4010 Starter Motor
- Quality Product
- Made with premium materials
Fits Models
-
Kawasaki UTV
- KAF 620 Mule 4000 (2011-15)
- KAF 620 Mule 4010 (2011-15)
Replaces OEM
- Denso 228000-8842
- Kawasaki 21163-2134
For A Full Application Listing, Please See Our Application / Fitment Section.
Technical Details
| Unit Type |
Starter |
| Part Type |
UNIT |
| Voltage |
12 |
| Rotation |
CCW |
| Teeth |
9 |
| Starter Type |
OSGR |
| Brief |
KAWASAKI MULE 4000, 4010 2009-15 |
| Detailed |
Despite the Denso Number 228000-8842, This Unit is Different Enough From the SND0459 (228000-8841) That the Two Should Not Be Used in Place of Each Other. The 228000-8841 Has 2 Long Drain Tubes and No Breather Tube Nipple on the DE Frame, While the 228000-8842 Has No Drain Tubes, and Has a Breather Tube Nipple on the Front of the DE Frame for a Long Breather Tube to Be Attached To. |
Part Application/Fitment
| Model |
Code |
Year |
Manufacturer |
Engine |
| KAF620 Mule 4000 |
410-52383 |
2011 |
KAWASAKI |
617cc |
| KAF620 Mule 4000 |
410-52383 |
2012 |
KAWASAKI |
617cc |
| KAF620 Mule 4000 |
410-52383 |
2013 |
KAWASAKI |
617cc |
| KAF620 Mule 4000 |
410-52383 |
2014 |
KAWASAKI |
617cc |
| KAF620 Mule 4000 |
410-52383 |
2015 |
KAWASAKI |
617cc |
| KAF620 Mule 4000 |
410-52383 |
2016 |
KAWASAKI |
617cc |
| KAF620 Mule 4000 |
410-52383 |
2017 |
KAWASAKI |
617cc |
| KAF620 Mule 4000 |
410-52383 |
2018 |
KAWASAKI |
617cc |
| KAF620 Mule 4000 |
410-52383 |
2019 |
KAWASAKI |
617cc |
| KAF620 Mule 4000 |
410-52383 |
2020 |
KAWASAKI |
617cc |
| KAF620 Mule 4000 Trans |
410-52383 |
2018 |
KAWASAKI |
617cc |
| KAF620 Mule 4000 Trans |
410-52383 |
2019 |
KAWASAKI |
617cc |
| KAF620 Mule 4000 Trans |
410-52383 |
2020 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 4x4 |
410-52383 |
2011 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 4x4 |
410-52383 |
2012 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 4x4 |
410-52383 |
2013 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 4x4 |
410-52383 |
2014 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 4x4 |
410-52383 |
2015 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 4x4 |
410-52383 |
2016 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 4x4 |
410-52383 |
2017 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 4x4 |
410-52383 |
2018 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 4x4 |
410-52383 |
2019 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 4x4 |
410-52383 |
2020 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 4x4 Spec. Ed. |
410-52383 |
2016 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 4x4 Spec. Ed. |
410-52383 |
2017 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 4x4 Spec. Ed. |
410-52383 |
2018 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 Trans 4x4 |
410-52383 |
2010 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 Trans 4x4 |
410-52383 |
2011 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 Trans 4x4 |
410-52383 |
2012 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 Trans 4x4 |
410-52383 |
2013 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 Trans 4x4 |
410-52383 |
2014 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 Trans 4x4 |
410-52383 |
2015 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 Trans 4x4 |
410-52383 |
2016 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 Trans 4x4 |
410-52383 |
2017 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 Trans 4x4 |
410-52383 |
2018 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 Trans 4x4 |
410-52383 |
2019 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 Trans 4x4 |
410-52383 |
2020 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 Trans 4x4 Camo |
410-52383 |
2015 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 Trans 4x4 Camo |
410-52383 |
2016 |
KAWASAKI |
617cc |
| KAF620 Mule 4010 Trans 4x4 Camo |
410-52383 |
