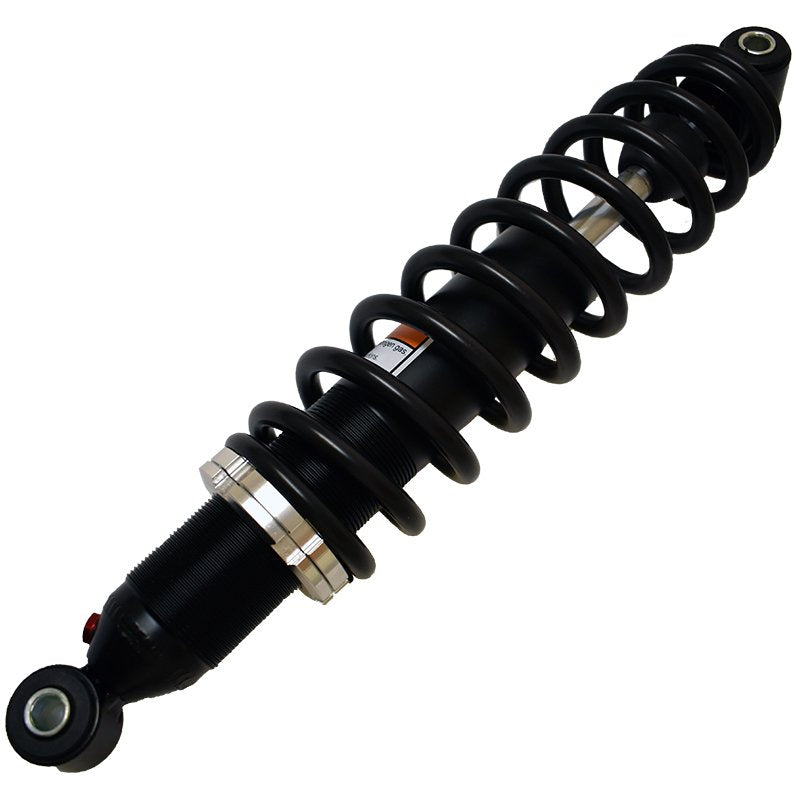

HYPER Shock Absorber Front Yamaha Grizzly 700/550

HYPER Shock Absorber | Front | Yamaha | Grizzly 700/550

• Aftermarket gas shock offers improved performance over stock oil shocks
• Spring comes preinstalled making the shock ready to mount out of the box for quicker set up
• Pre-load adjustable
• This is not a rebuildable shock.

Fits Models

• YFM550FGH Grizzly FI 4×4 Hunter Edition 2009-2013
• YFM550FGP Grizzly FI 4×4 EPS 2009-2013
• YFM550FGPH Grizzly FI 4×4 EPS Hunter Edition 2009-2013
• YFM550FGPSE Grizzly FI 4×4 EPS Special Edition 2009
• YFM550P Grizzly 550 4×4 EPS 2014
• YFM550PH Grizzly 550 4×4 EPS Hunter Edition 2014
• YFM700FG Grizzly 700 FI 4×4 2008-2013
• YFM700FG Grizzly 700 FI 4×4 Exploring Edition 2007
• YFM700FGH Grizzly 700 FI 4X4 Hunter Edition 2008-2013
• YFM700FGP Grizzly 700 FI 4×4 EPS 2007-2013
• YFM700FGPDU Grizzly 700 FI 4×4 EPS Ducks Unlimited Edition 2007-2009
• YFM700FGPH Grizzly 700 FI 4×4 EPS Hunter Edition 2007-2013
• YFM700FGPOH Grizzly 700 FI 4×4 Outdoorsman Edition 2007
• YFM700FGPSE Grizzly 700 FI 4×4 EPS Special Edition 2009-2010, 2012-2013
• YFM700FGPSE Grizzly 700 FI 4×4 Special Edition 2007-2008
• YFM700FGPSP Grizzly 700 EPS Special Edition 2011-2012
• YFM700FGPSP Grizzly 700 FI 4×4 Special Edition 2008

OEM ref; 3B4-23350-01-00, 3B4-23350-00-00

Technical Details

360mm Eye to Eye

Eye Diameter Top 10mm*32mm

Eye Diameter Bottom 10mm*30mm

Spring Thickness: 8.5mm

Part Application/Fitment
