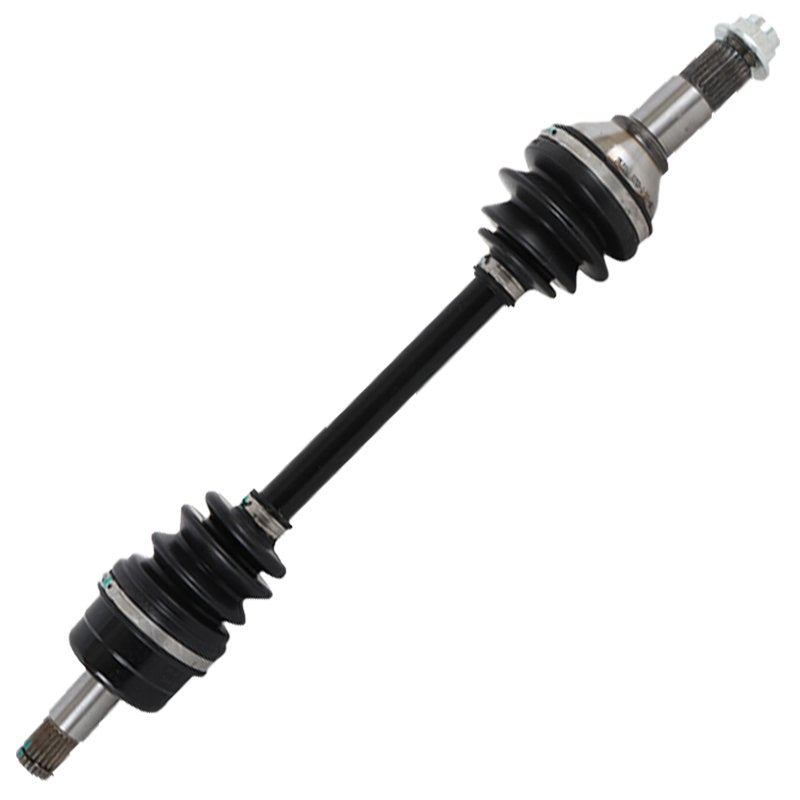

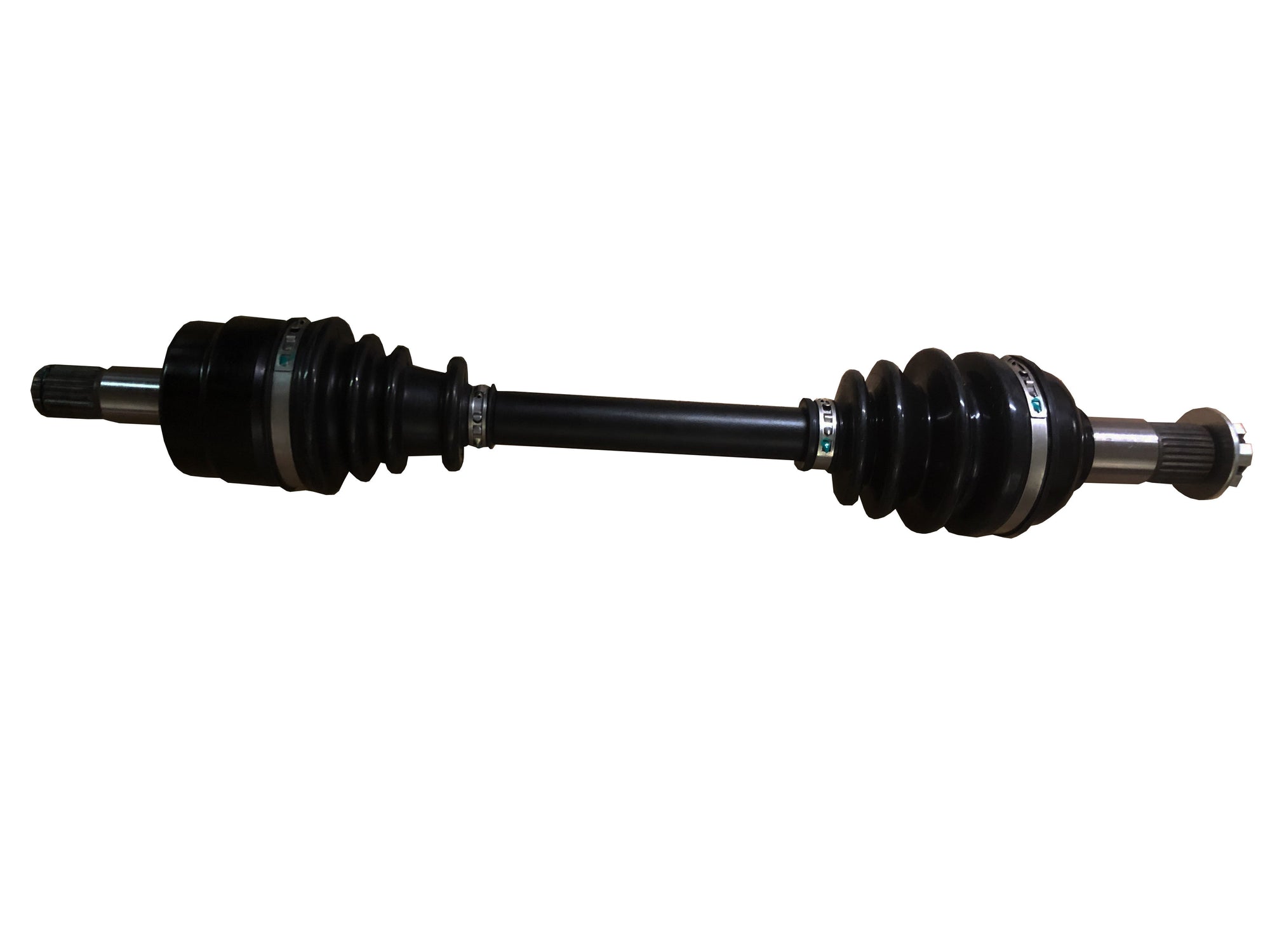

HYPER | CV SHAFT | YAMAHA | FRONT
Used on the following applications:
-
YAMAHA
- 550/700 Grizzly Front H/D (2007-2013)
Replaces OEM
-
YAMAHA
- 3B4-2510F-00-00
- 3B4-2518E-00-00
- 28P-2510F-00-00
- 28P-2510J-00-00
- 28P-2518E-00-00
For full application / interchanges listing, please see our part Application / Fitment section
Part Application/Fitment
| Model |
Code |
Year |
Manufacturer |
Engine |
| Grizzly 550 4WD EPS Hunter YFM550FGH |
610.YA8300-1 |
2009 |
YAMAHA |
558cc |
| Grizzly 550 4WD EPS Hunter YFM550FGH |
610.YA8300-1 |
2010 |
YAMAHA |
558cc |
| Grizzly 550 4WD EPS Hunter YFM550FGH |
610.YA8300-1 |
2011 |
YAMAHA |
558cc |
| Grizzly 550 4WD EPS Hunter YFM550FGH |
610.YA8300-1 |
2012 |
YAMAHA |
558cc |
| Grizzly 550 4WD EPS Hunter YFM550FGH |
610.YA8300-1 |
2013 |
YAMAHA |
558cc |
| Grizzly 550 4WD EPS Hunter YFM550FGH |
610.YA8300-1 |
2014 |
YAMAHA |
558cc |
| Grizzly 550 4WD EPS YFM550FG |
610.YA8300-1 |
2009 |
YAMAHA |
558cc |
| Grizzly 550 4WD EPS YFM550FG |
610.YA8300-1 |
2010 |
YAMAHA |
558cc |
| Grizzly 550 4WD EPS YFM550FG |
610.YA8300-1 |
2011 |
YAMAHA |
558cc |
| Grizzly 550 4WD EPS YFM550FG |
610.YA8300-1 |
2012 |
YAMAHA |
558cc |
| Grizzly 550 4WD EPS YFM550FG |
610.YA8300-1 |
2013 |
YAMAHA |
558cc |
| Grizzly 550 4WD EPS YFM550FG |
610.YA8300-1 |
2014 |
YAMAHA |
558cc |
| Grizzly 550 4WD Hunter YFM550FGH |
610.YA8300-1 |
2009 |
YAMAHA |
558cc |
| Grizzly 550 4WD Hunter YFM550FGH |
610.YA8300-1 |
2010 |
YAMAHA |
558cc |
| Grizzly 550 4WD Hunter YFM550FGH |
610.YA8300-1 |
2011 |
YAMAHA |
558cc |
| Grizzly 550 4WD Hunter YFM550FGH |
610.YA8300-1 |
2012 |
YAMAHA |
558cc |
| Grizzly 550 4WD Hunter YFM550FGH |
610.YA8300-1 |
2013 |
YAMAHA |
558cc |
| Grizzly 550 4WD Hunter YFM550FGH |
610.YA8300-1 |
2014 |
YAMAHA |
558cc |
| Grizzly 550 4WD YFM550FG |
610.YA8300-1 |
2009 |
YAMAHA |
558cc |
| Grizzly 550 4WD YFM550FG |
610.YA8300-1 |
2010 |
YAMAHA |
558cc |
| Grizzly 550 4WD YFM550FG |
610.YA8300-1 |
2011 |
YAMAHA |
558cc |
| Grizzly 550 4WD YFM550FG |
610.YA8300-1 |
2012 |
YAMAHA |
558cc |
| Grizzly 550 4WD YFM550FG |
610.YA8300-1 |
2013 |
YAMAHA |
558cc |
| Grizzly 550 4WD YFM550FG |
610.YA8300-1 |
2014 |
YAMAHA |
558cc |
| Grizzly 700 4WD Hunter YFM700FGH |
610.YA8300-1 |
2009 |
YAMAHA |
686cc |
| Grizzly 700 4WD Hunter YFM700FGH |
610.YA8300-1 |
2010 |
YAMAHA |
686cc |
| Grizzly 700 4WD Hunter YFM700FGH |
610.YA8300-1 |
2011 |
YAMAHA |
686cc |
| Grizzly 700 4WD Hunter YFM700FGH |
610.YA8300-1 |
2012 |
YAMAHA |
686cc |
| Grizzly 700 4WD Hunter YFM700FGH |
610.YA8300-1 |
2013 |
YAMAHA |
686cc |
| Grizzly 700 EPS 4WD Hunter YFM700FGHP |
610.YA8300-1 |
2009 |
YAMAHA |
686cc |
| Grizzly 700 EPS 4WD Hunter YFM700FGHP |
610.YA8300-1 |
2010 |
YAMAHA |
686cc |
| Grizzly 700 EPS 4WD Hunter YFM700FGHP |
610.YA8300-1 |
2011 |
YAMAHA |
686cc |
| Grizzly 700 EPS 4WD Hunter YFM700FGHP |
610.YA8300-1 |
2012 |
YAMAHA |
686cc |
| Grizzly 700 EPS 4WD Hunter YFM700FGHP |
610.YA8300-1 |
2013 |
YAMAHA |
686cc |
| Kodiak 700 EPS 4WD YFM70KP |
610.YA8300-1 |
2016 |
YAMAHA |
700cc |
Interchanges/Cross References
| Model |
Code |
| 3B4-2510F-00-00 |
YAMAHA |
| 3B4-2518E-00-00 |
YAMAHA |
| 28P-2510F-00-00 |
YAMAHA |
| 28P-2510F-00-00 |
YAMAHA |
| 28P-2518E-00-00 |
YAMAHA |
