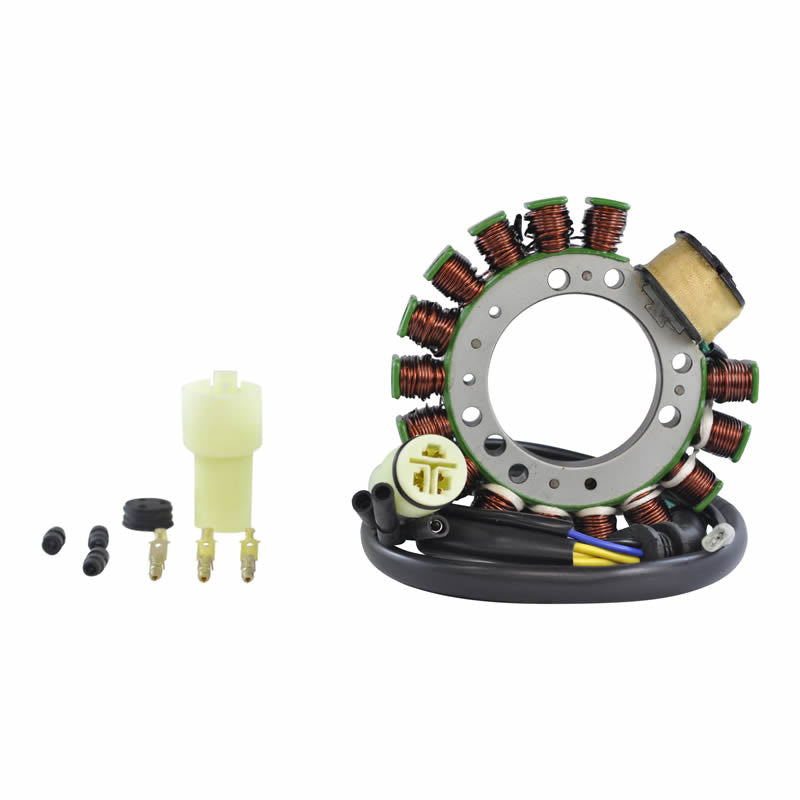

High Output Stator Honda TRX 350 Fourtrax 1986–1989

High Output Stator Honda TRX 350 Fourtrax 1986-1989

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All product shipped are tested
• One year limited warranty

Our part is re-designed for reliability, it does not look like the original but works like a charm!
This stator will not work for the ‘D’ model. Pick up coil sold separately (Part# RM00108)

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Fits Models

• Honda TRX 350 Fourtrax Foreman 1986 -1986
• Honda TRX 350A Fourtrax Foreman 1987 -1989
• Honda TRX 350D Fourtrax Foreman 1987 -1989

Replaces OEM

• 31120-HA7-651
• 31120-HA7-671
• 31120-HA7-751

Plug-and-Play / Direct Fit

Technical Details

Number of wires : 6
Number of terminals : 7
Alternator : Yellow Between each Yellow = 0.7 ohms+/-20%
Alternator : Yellow to Ground = O.L. ON DISPLAY
Source 1 : Green to Black = 315 ohms+/-20%
Before installing your new stator

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator/rectifier
• Check and repair any melted wiring.
• Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.

When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010?.
