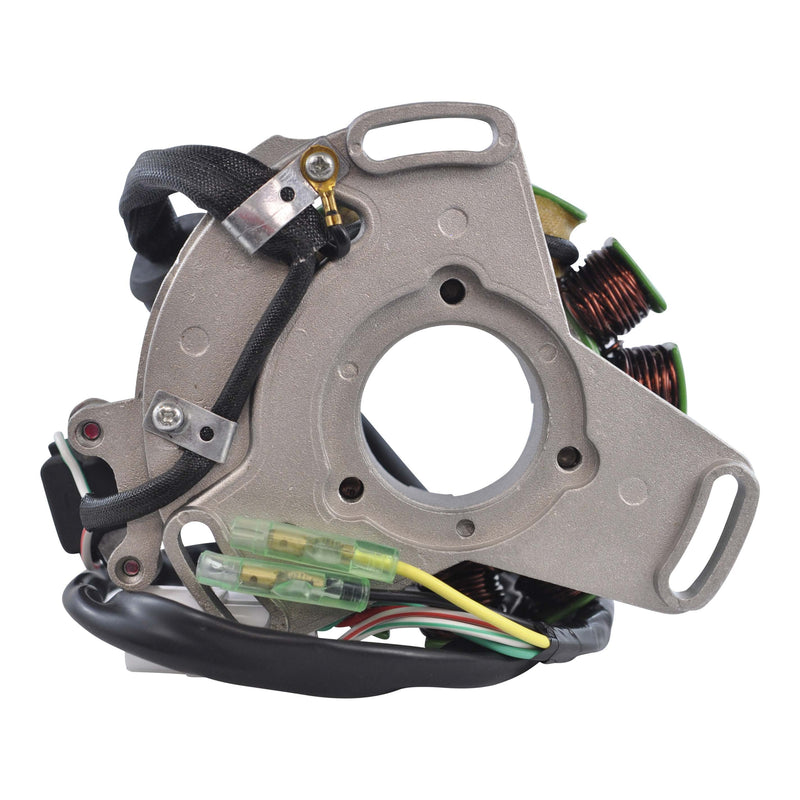

High Output Performance Stator 200W + AC Regulator for Yamaha | YFZ 350 Banshee

High Output Performance Stator 200W + AC Regulator for Yamaha | YFZ 350 Banshee

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Back Plate included
• Adjustable timing plate to advance and retard up to 10 degrees included
• All product shipped are tested
• One year limited warranty

For a limited time we are including a FREE Tympanum AC regulator required to run the extra wattage supplied from our 200W stator.

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

AC Regulator

• 12 Volts regulator used by Baja winners
• For use with all standard halogen and quartz lights
• Precise voltage control, eliminates light burnout
• Reduce flickering and dimming
• Simple installation
• Works with all other OEM parts
• Rated at 225 watts.
• One year limited warranty
• *All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Fits Models

• Yamaha YFZ 350 Banshee 1995 -2006

Replaces OEM

• 3GG-85510-00-00
• 3GG-85510-01-00

Plug-and-Play / Direct Fit

Technical Details

STATOR
Number of wires : 6
Number of terminals : 6
Alternator : Yellow to Black = 0.4 ohms+/-20%
Pick up 1 : White/Green to White/Red = 115 ohms+/-20%
Source 1 = Green to Red 12 ohms+/-20%
Interior Diameter: 34mm
Exterior Diamter: 103mm
Thickness:  27mm

Before installing your new stator

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator/rectifier
• Check and repair any melted wiring.
• Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.

When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010?.
