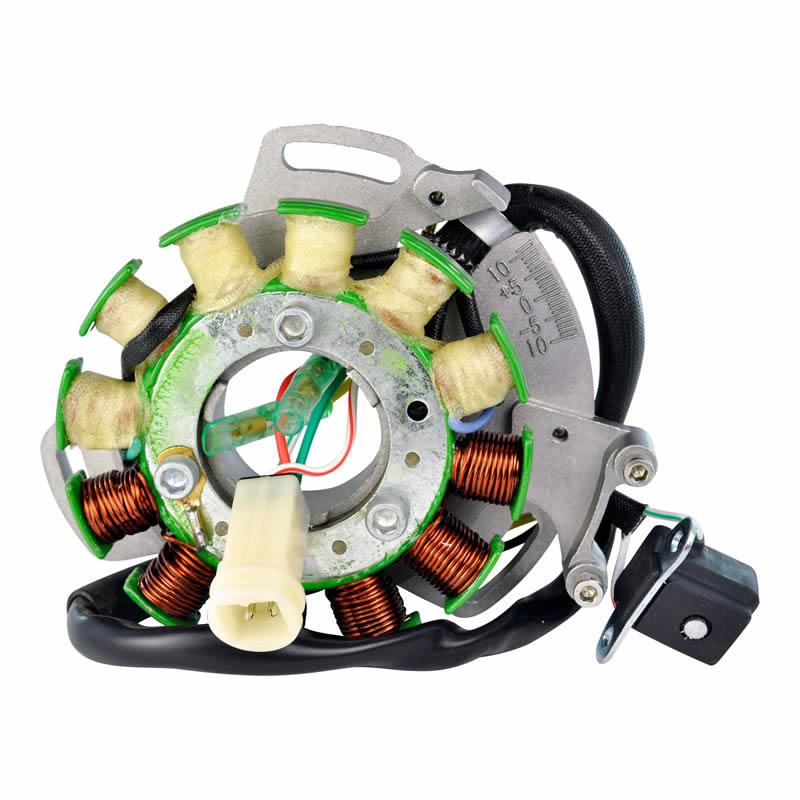

High Output Performance Generator For Stator 100W/Adjustable Timing Backplate

High Output Performance Generator For Stator 100W/Adjustable Timing Backplate

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Adjustable timing plate to advance and retard up to 10 degrees included
• All product shipped are tested
• One year limited warranty

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Fits Models

• Yamaha YFZ 350 Banshee 1987 -1994

Replaces OEM

• 2GU-85510-50-00

Plug-and-Play / Direct Fit

Technical Details

Number of wires : 6
Number of terminals : 6
Alternator : Yellow to Black = 0.8 ohms+/-20%
Source 1 : Green to Red = 18 ohms+/-20% Pick up 1 : White/Green to White/Red = 115 ohms+/-20%
Before installing your new stator

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator/rectifier
• Check and repair any melted wiring.
• Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.

When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010?.

Part Application/Fitment

Interchanges/Cross References
