High Output Generator Stator Honda ATC 250 1985–1986 TRX 250 R 1985–1989

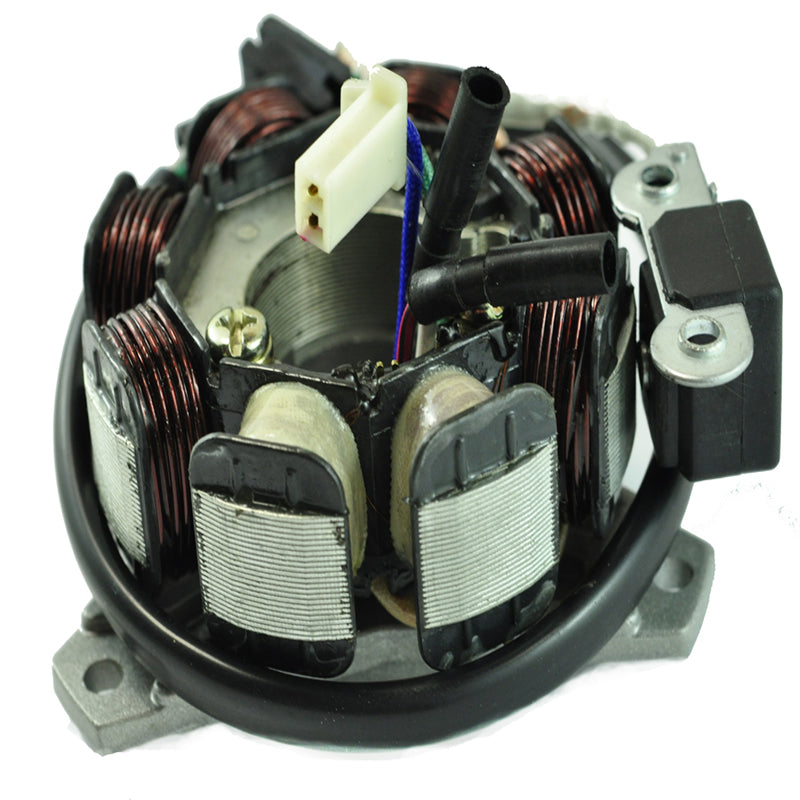

High Output Generator Stator Honda ATC 250 1985-1986 TRX 250 R 1985-1989

• Direct replacement to your original unit
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Back Plate included
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• All product shipped are tested
• One year limited warranty

20% More output over stock, works with all other OEM components.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Fits Models

• Honda ATC 250 R 1985 -1986
• TRX 250 R 1985 -1989

Replaces OEM

• 31120-HA2-004
• 31120-HA2-671
• 31120-HB9-741

Plug-and-Play / Direct Fit

Technical Details

Number of wires : 4
Number of terminals : 4

Alternator : White to Ground = 0.4 ohms+/- 20%
Pickup : Green to Blue = 115 ohms+/-20%
Source : Black/Red to Ground = 210 ohms+/- 20%

Before installing your new stator:

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator/rectifier
• Check and repair any melted wiring.
• Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code then you’re original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.
