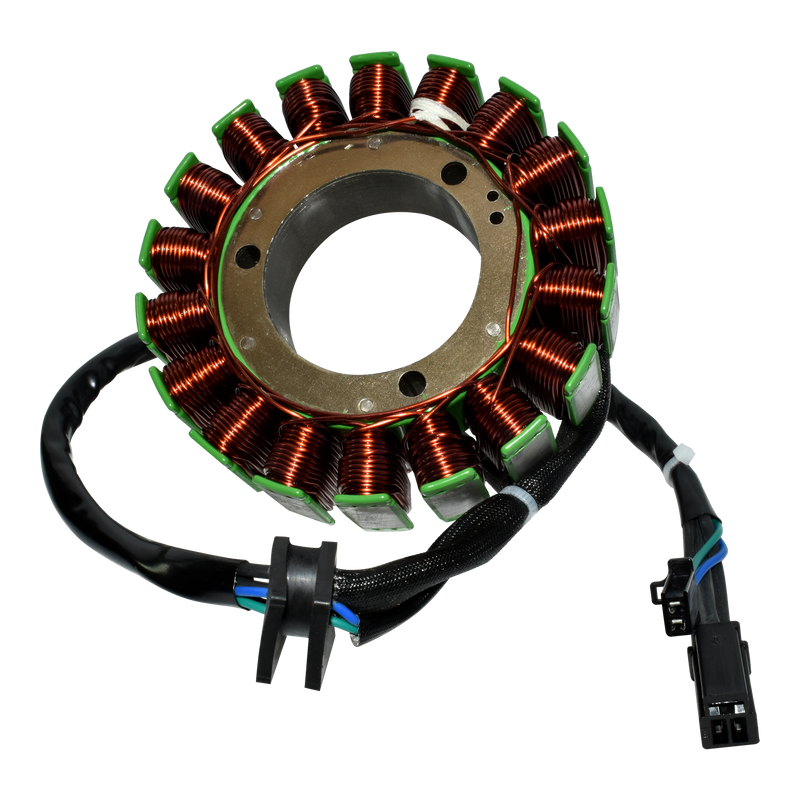

Generator Stator for Suzuki VStorm 1000 02–09 / 2012

Name: Generator Stator for Suzuki VStorm 1000 02–09 / 2012
Brand: ATV-City
SKU: RMS010-107577
Price: 2437.56 DKK
Availability: InStock

2.437,56 kr (ex. moms)

Samlinger: Motor Vehicle Parts

Generator Stator for Suzuki VStorm 1000 02-09 / 2012

Quality Product
Made with premium materials

Fits Models

2012 Suzuki VStrom 1000

2009 Suzuki VStrom 1000

2008 Suzuki VStrom 1000

2007 Suzuki VStrom 1000

2006 Suzuki VStrom 1000

2005 Suzuki VStrom 1000

2004 Suzuki VStrom 1000

2003 Suzuki VStrom 1000

2002 Suzuki VStrom 1000

SPECIFICATIONS

Dimensions:

Interior diameter: 54 mm

Exterior diameter: 119 mm

Thickness: 28 mm

Length of wires stator to grommet: 160 mm

Length of wires grommet to plug: 430 mm

Length of pickup coil’s wire to grommet: 150 mm

Other specifications:

Number of wires: 5

Number of plugs: 2

Number of pins: 5

Number of poles: 18

Wire to wire resistance:

Alternator: Black to Black = 0.4 ohms +-20%

Alternator: Black to ground = O.L

Pickup: Blue to Green = 200 ohms +-20%

Replaces OEM

32101-06G10
32101-06G11
