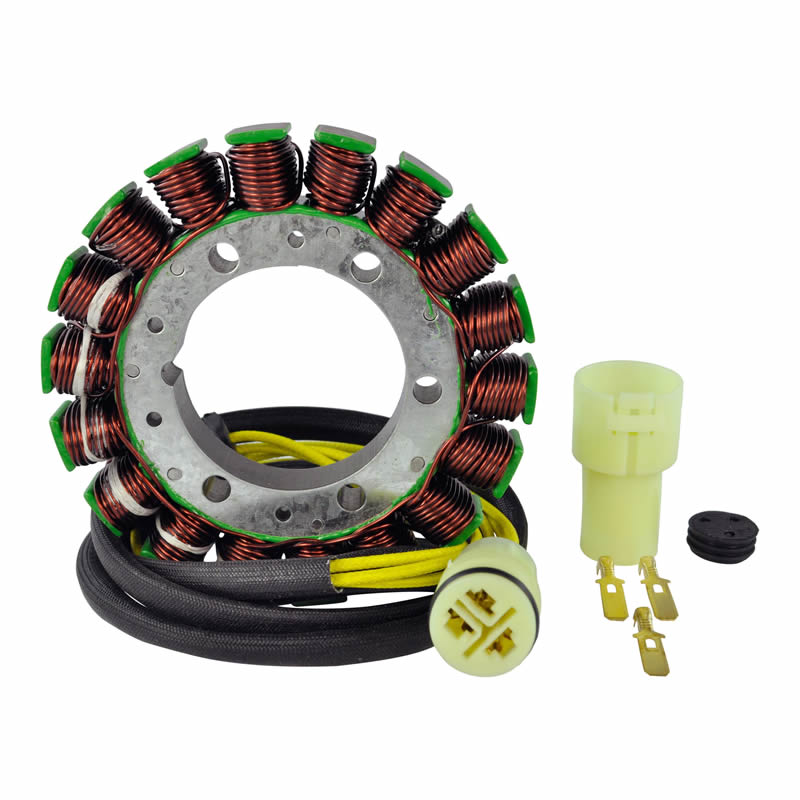

Generator Stator Arctic Cat 650 4×4 2004–2006

Generator Stator Arctic Cat 650 4×4 2004-2006

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All product shipped are tested
• One year limited warranty

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Fits Models

• Arctic Cat 650 V-Twin 2004 -2006

Replaces OEM

• 3201-182

Plug-and-Play / Direct Fit

Technical Details

Number of wires : 3
Number terminals : 3
Alternator : Yellow between each Yellow = 0.4 ohms+/-20%
Alternator : Yellow to Ground = O.L. ON DISPLAY
Before installing your new stator

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator/rectifier
• Check and repair any melted wiring.
• Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.

When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010?.

Part Application/Fitment

Interchanges/Cross References
