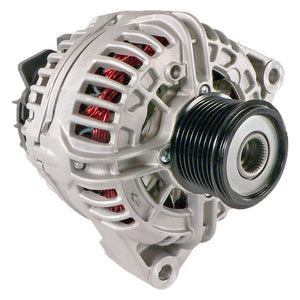

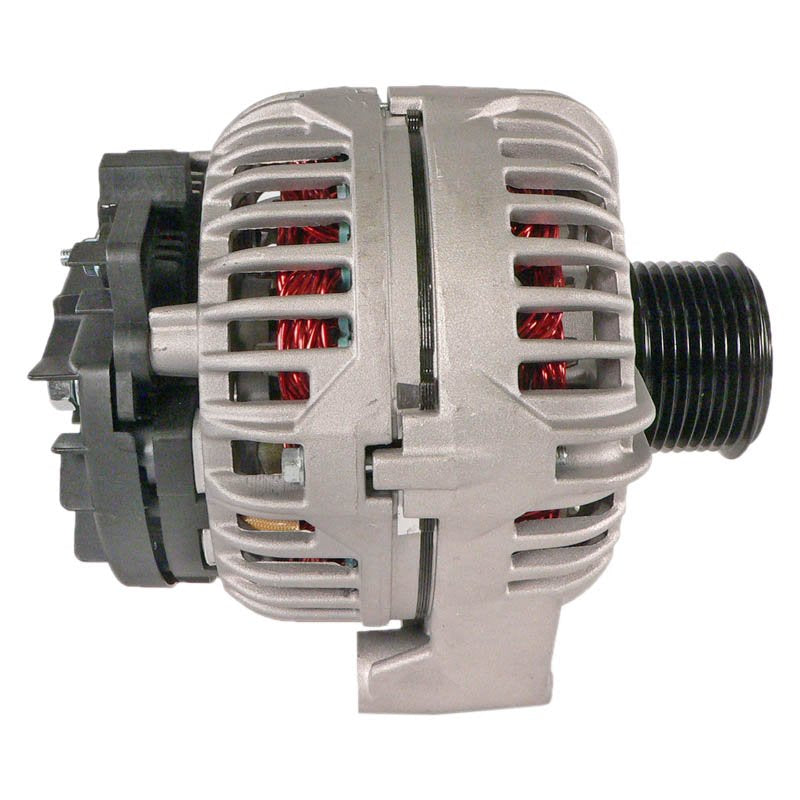

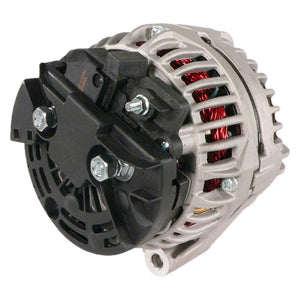

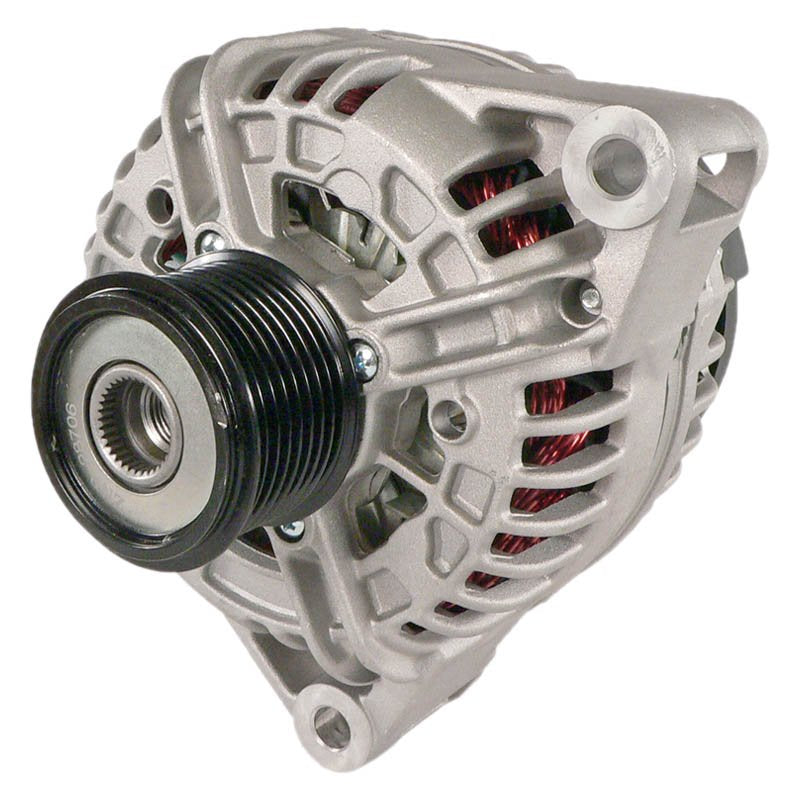

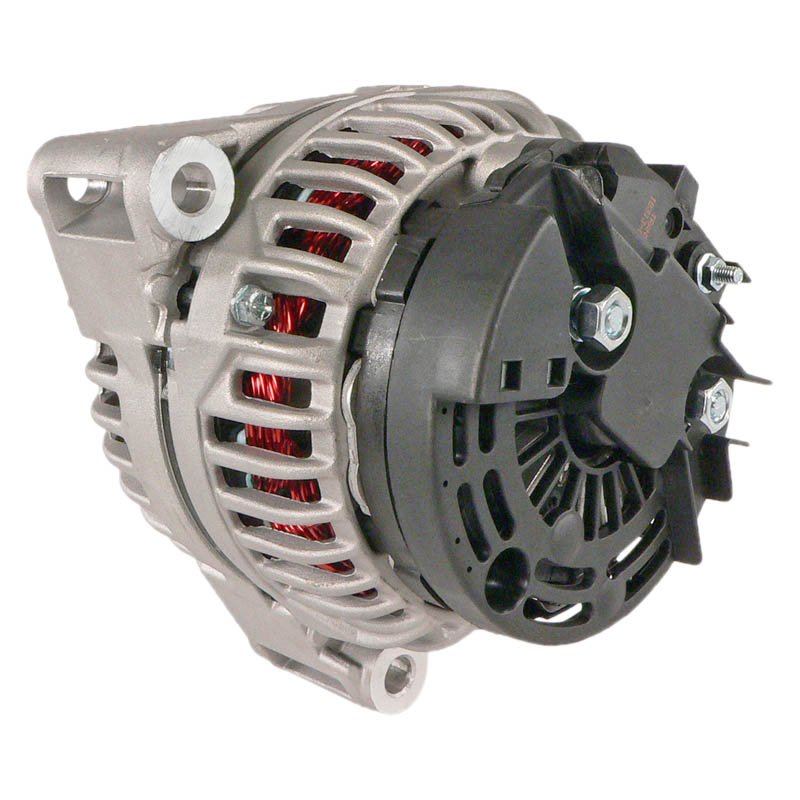

Alternator for John Deere Tractors and Agricultural Applications
- Quality Product
- Made with premium materials
Fits Models
- 6420
- 6510
- 6520
- 6610
- 6620
- 6820
- 6910
- 6920
- 7420
- AL111676
Previous Product Code
ABO0430
Technical Details
| ID |
490979 |
| Unit Type |
Alternator |
| Part Type |
UNIT |
| Voltage |
12 |
| Rotation |
CW |
| Amperage |
115 |
| Pulley Class |
SD8 |
| Regulator |
IR |
| Fan Type |
IF |
|
|
| Brief |
JOHN DEERE
8-GROOVE PULLEY 50mm OD
ADDL INFO: 70/115 AMP
SEARCH: 494229 (ISKRA) |
| Detailed |
Rotor # 0-124-035-504
Stator # 1-125-045-589
Regulator # 1-197-311-552
Rectifier # 1-127-319-806
Pulley # 1-126-601-596
Original Units Had a Long Nexk on the Pulley But Replacement Pulleys Do Not Have This Neck. |
Interchanges/Cross References
| Model |
Code |
| ABO0430 |
Arrowhead (Old) |
| 123512500 |
Bosch |
| 986046037 |
Bosch |
| 986046030 |
Bosch |
| AL5053X |
Bosch |
| AL111676 |
John Deere |
| AL114093 |
John Deere |
| 12370 |
Lester |
| 11203862 |
Mahle |
| AL11676 |
John Deere |
| LRA01949 |
Lucas Electric |
| MG4 |
Mahle |
| 11.203.204 |
Mahle |
| 11.204.152 |
Mahle |
| AAN5311 |
Mahle |
| 220-5015 |
