Stator For Yamaha | YFB250 Timberwolf, YFM225 Bear Tracker + More | 1994–2000

Stator For Yamaha | YFB250 Timberwolf, YFM225 Bear Tracker + More | 1994-2000

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

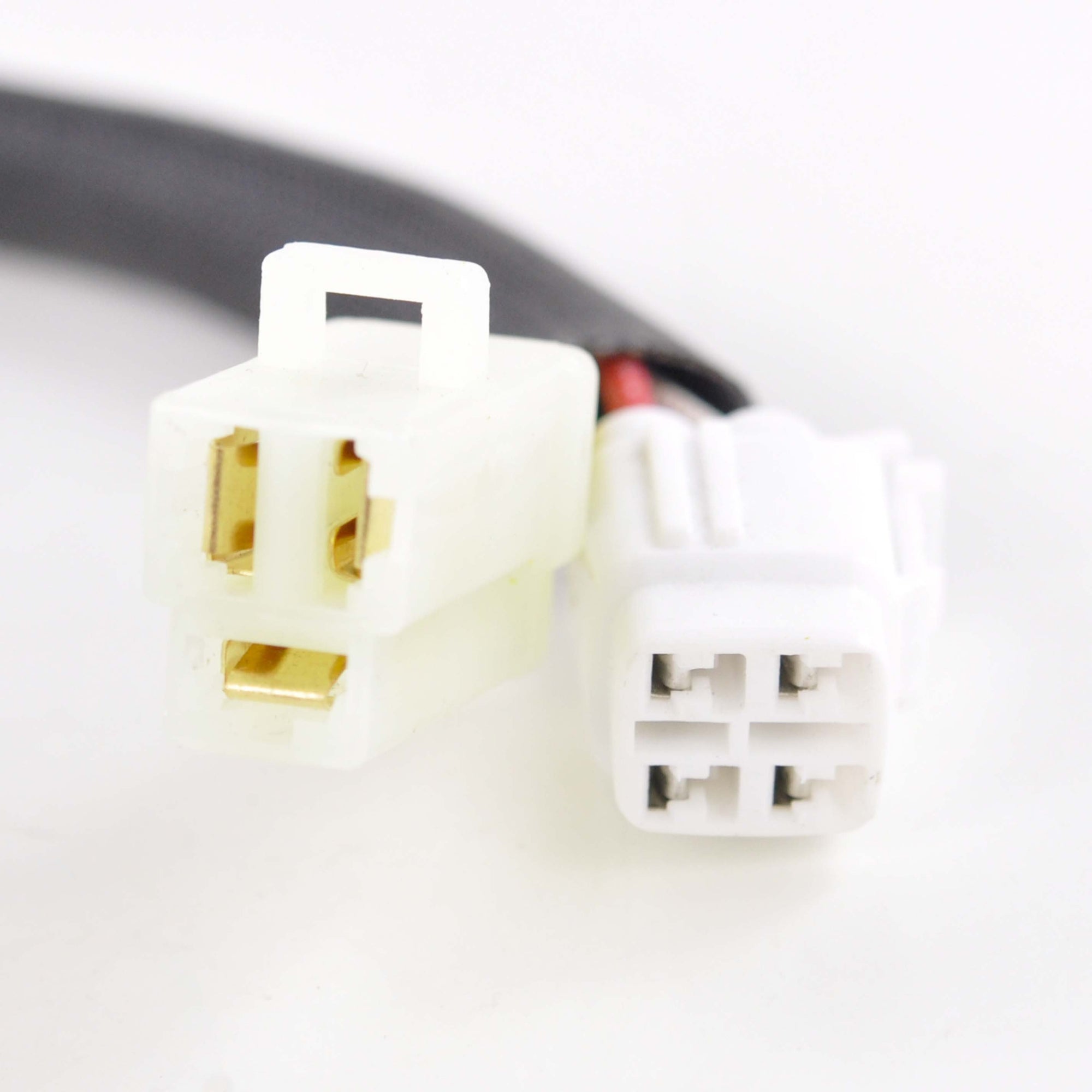

• Connector included
• Rubber grommet included
• All product shipped are tested
• One year limited warranty

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Used on

• Yamaha YFB 250 Timberwolf 1994 -2000
• YFM 250 Bear Tracker 1999 -2000
• YFM 250 Bear Tracker California 1999 -2000

Replaces OEM

• 4BD-85510-20-00

Technical Details

Number of wires : 7
Number of terminals : 7
Alternator : Yellow Between each Yellow = 0.8 ohms+/-20%
Before installing your new stator

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator/rectifier
• Check and repair any melted wiring.
• Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.

When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010?.
