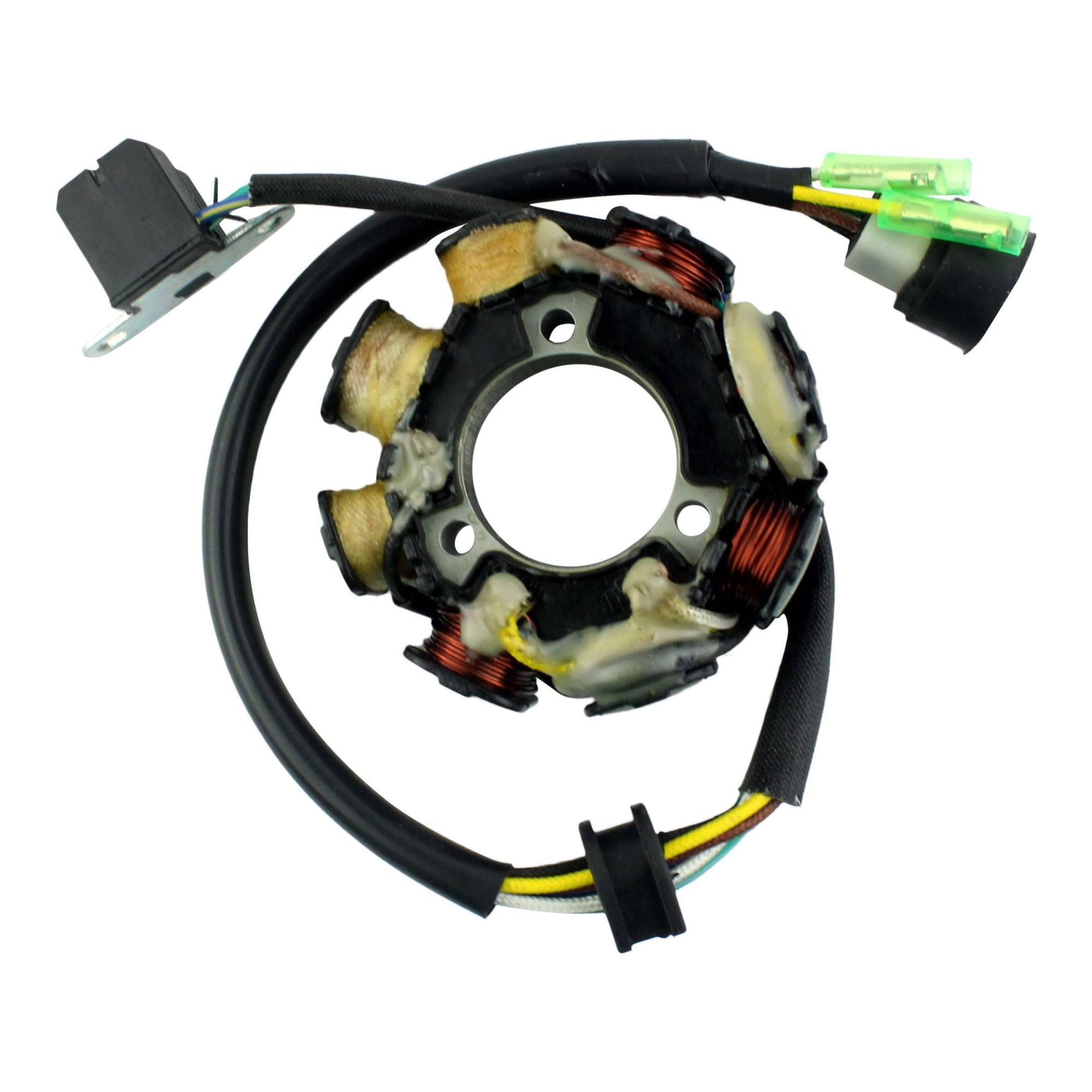

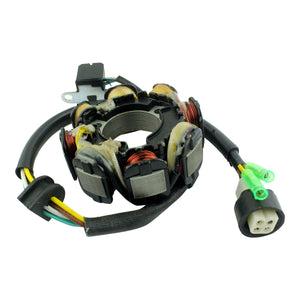

Stator For Yamaha | YFB 250 Timberwolf | 1992-1993
Don’t forget to compliment your new Stator with a brand new Cover Gasket: RM08021
Fits Models
- YFB 250 Timberwolf 1992-1993
Replaces OEM
Technical Details
Dimensions :
Interior diameter : 34mm
Exterior diameter : 83mm
Thickness : 14mm
Length of wires stator to grommet : 90mm
Length of wires grommet to plug : 225mm
Length of pickup coil’s wire to grommet : 160mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6
Wire to wire resistance :
Alternator : Yellow to White = 0.4ohms +/-20%
Pickup : Green/White to Blue/Yellow = 275ohms +/-20%
Source : Black to Brown = 475ohms +/-20%
Part Application/Fitment
| Model |
Code |
Year |
Manufacturer |
Engine |
| YFB 250 Timberwolf |
RM01426 |
1992 |
Yamaha |
|
| YFB 250 Timberwolf |
RM01426 |
1993 |
Yamaha |
|
Interchanges/Cross References
| Model |
Code |
| 4BD-85510-00-00 |
Yamaha |
| 4BD-85510-00-00 |
Yamaha |
