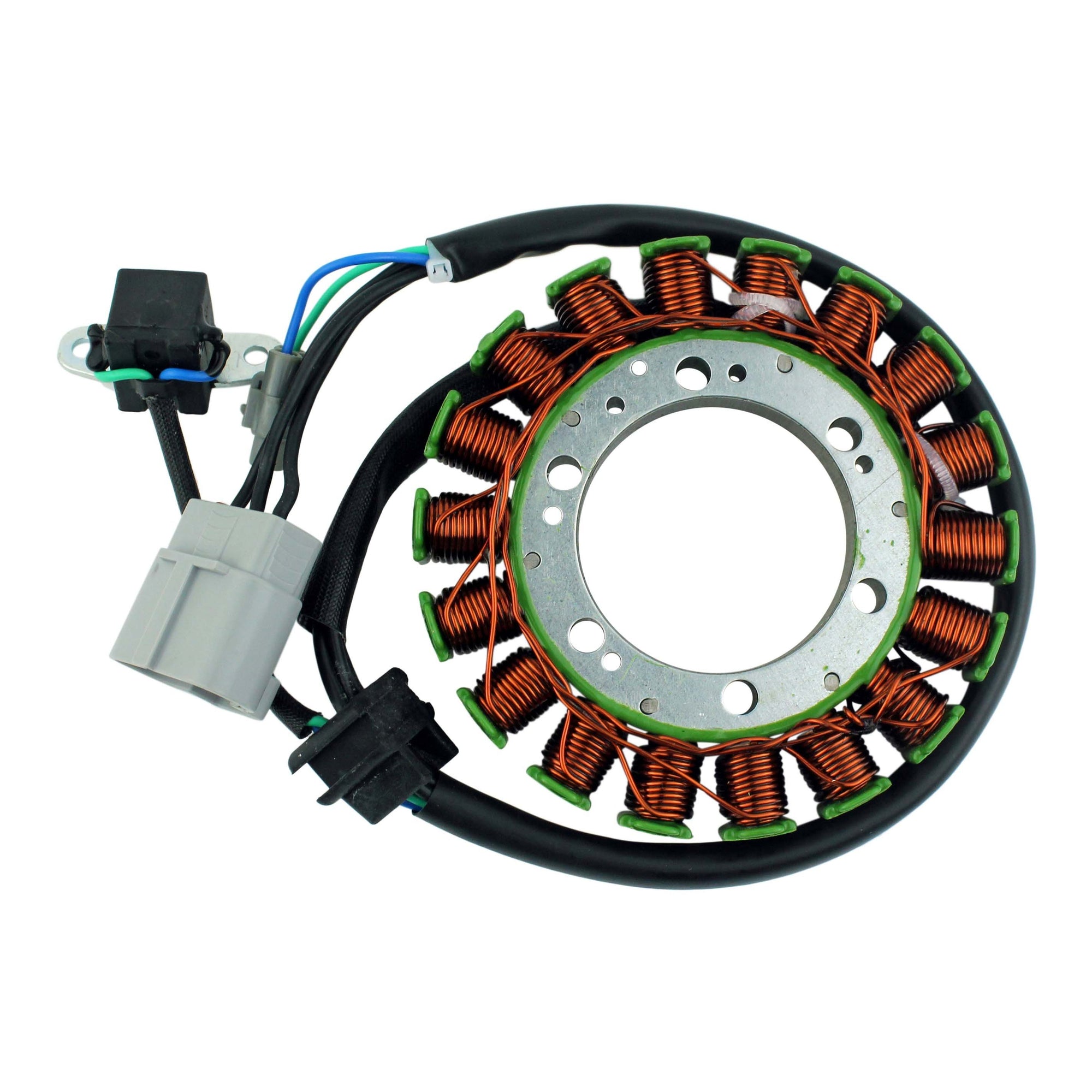

Stator For Suzuki LTA 400 / 400 F / LTF 400 KingQuad 2008–2024

Stator For Suzuki LTA 400 / 400 F / LTF 400 KingQuad 2008-2024

• You must re-install your original grommet and the new connector (see picture).
• Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• All product shipped are tested
• One year limited warranty

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Used on

• Suzuki LTA 400 F KingQuad 2008 -2024
• LTA 400 KingQuad 2008 -2024
• LTF 400 KingQuad 400FS 2008 -2024

Replaces OEM

• 32101-27H00
• 32101-27H10
• 11483-38F10

Technical Details

Number of wires : 5
Number of terminals : 5
Alternator : White to White = 0.5 ohms+/-20%
Pick up : Blue to Green = 200 ohms+/-20%
Before installing your new stator

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator/rectifier
• Check and repair any melted wiring.
• Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.

When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010?.
