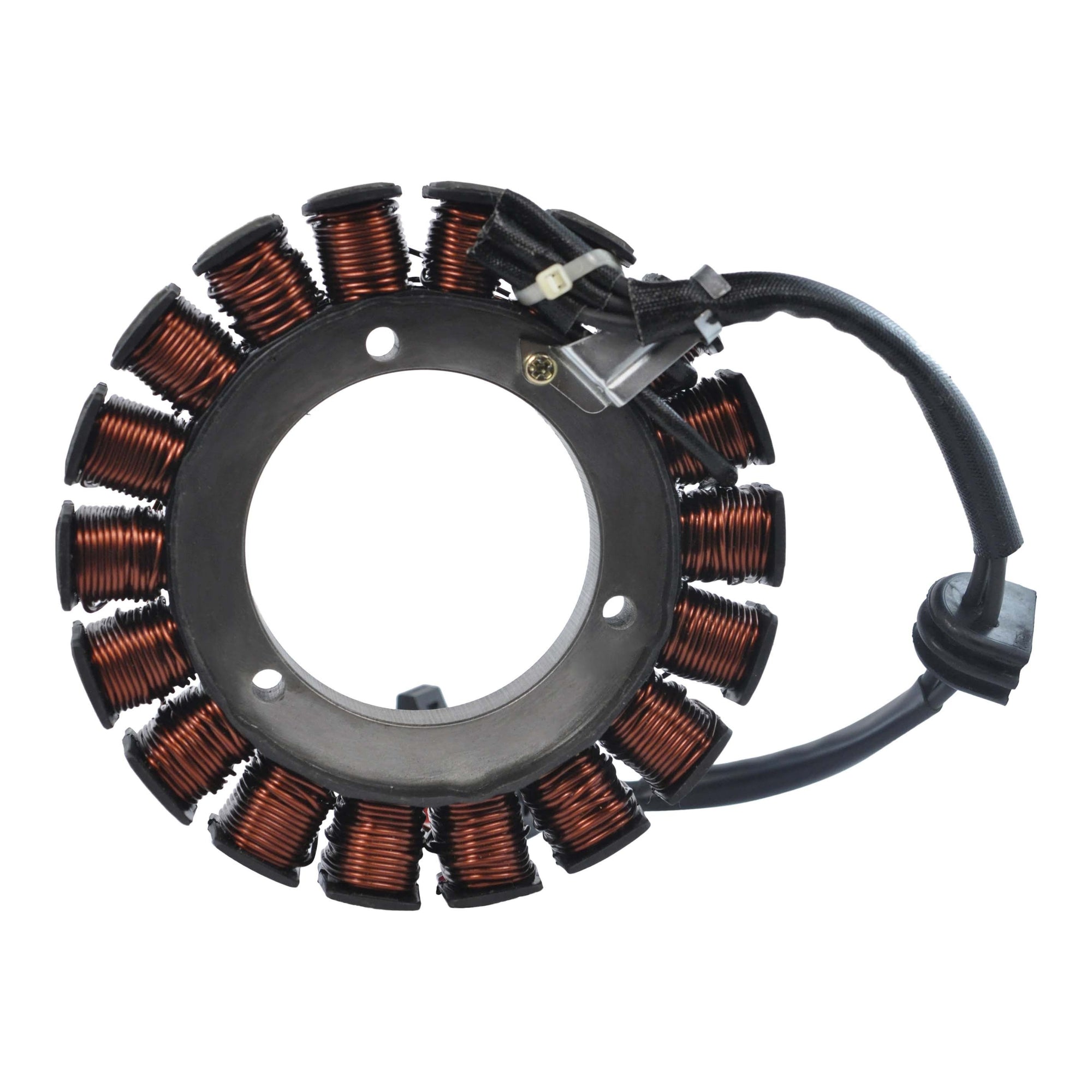

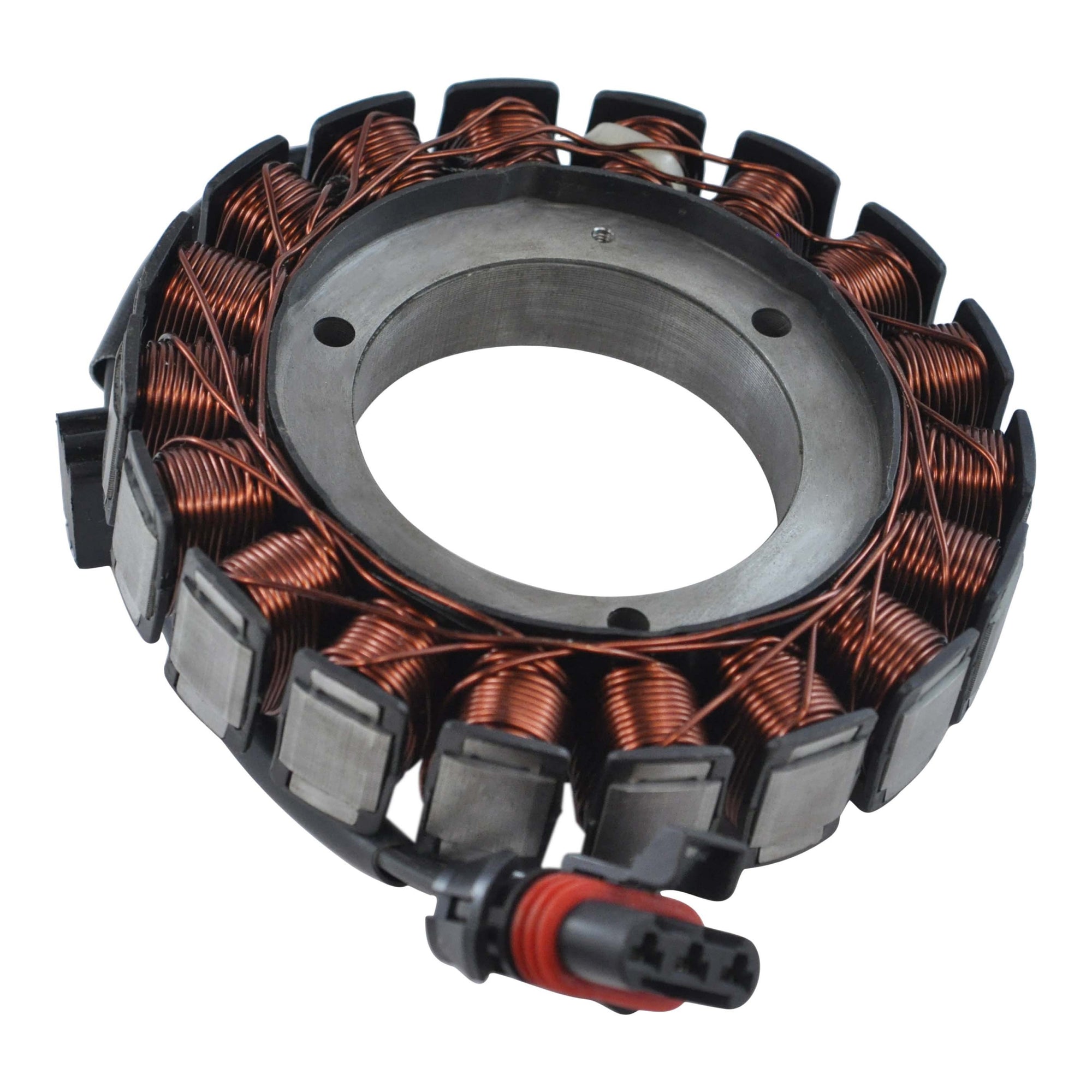

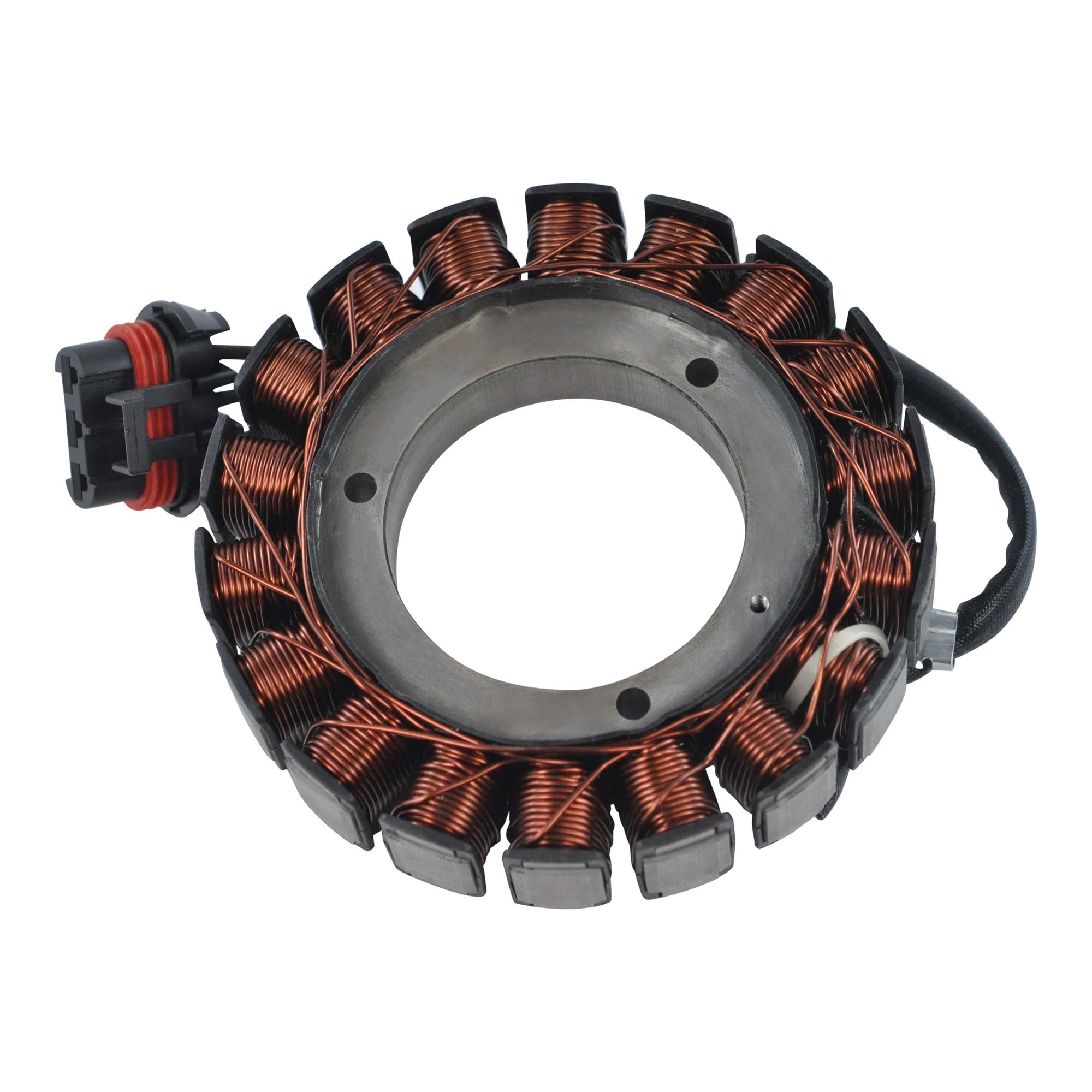

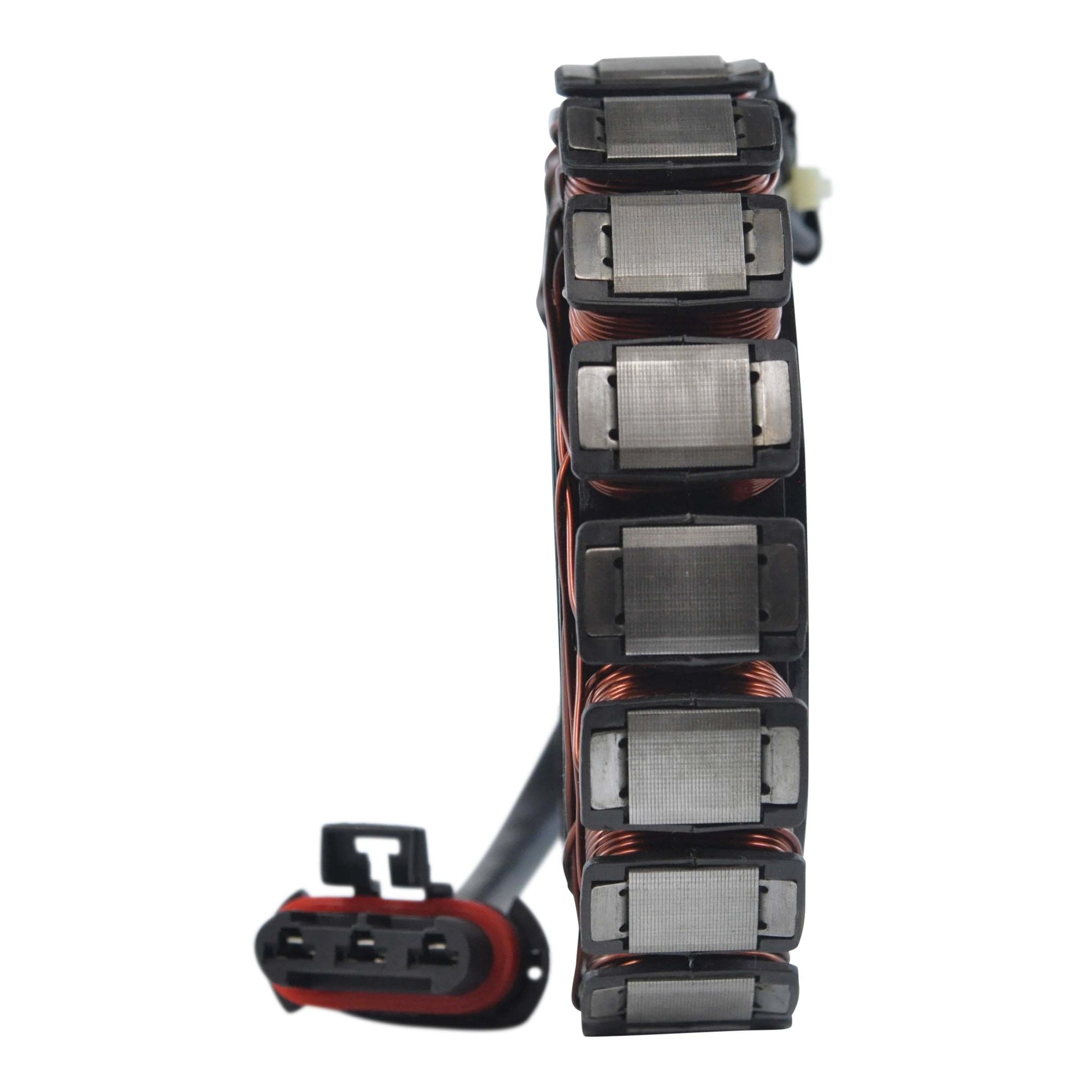

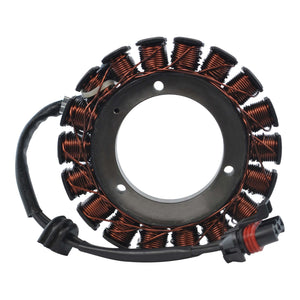

Stator For Polaris | Scrambler 850 850HO 1000 | Sportsman 850 850HO 1000
Stator For Polaris | Scrambler 850 850HO 1000 | Sportsman 850 850HO 1000
Stator For Polaris | Scrambler 850 850HO 1000 | Sportsman 850 850HO 1000
Stator For Polaris | Scrambler 850 850HO 1000 | Sportsman 850 850HO 1000
Stator For Polaris | Scrambler 850 850HO 1000 | Sportsman 850 850HO 1000
Stator For Polaris | Scrambler 850 850HO 1000 | Sportsman 850 850HO 1000
Stator For Polaris | Scrambler 850 850HO 1000 | Sportsman 850 850HO 1000
Stator For Polaris | Scrambler 850 850HO 1000 | Sportsman 850 850HO 1000
Stator For Polaris | Scrambler 850 850HO 1000 | Sportsman 850 850HO 1000
Stator For Polaris | Scrambler 850 850HO 1000 | Sportsman 850 850HO 1000
Stator For Polaris | Scrambler 850 850HO 1000 | Sportsman 850 850HO 1000
Stator For Polaris | Scrambler 850 850HO 1000 | Sportsman 850 850HO 1000

Stator For Polaris | Scrambler 850 850HO 1000 | Sportsman 850 850HO 1000

RM01401

2.973,78 kr  (ex. moms)

Samlinger: Motor Vehicle Parts

Kategori: Electrical , Stator Units , Stators & Gaskets

: Electrical

Stator For Polaris | Scrambler 850 850HO 1000 | Sportsman 850 850HO 1000

  • Quality Product
  • Made with premium materials

Fits Models

  • POLARIS
    • Scrambler 1000
    • Scrambler 1000 XP Euro
    • Scrambler 1000 XP High Lifter
    • Scrambler 850
    • Scrambler 850 Euro
    • Scrambler 850 HO XP EPS
    • Scrambler 850 HO XP EPS INTL
    • Sportsman 1000
    • Sportsman 850
    • Sportsman 850 Forest
    • Sportsman 850 High Lifter
    • Sportsman 850 HO
    • Sportsman 850 HO Forest
    • Sportsman 850 HO Touring
    • Sportsman 850 Touring EPS INTL
    • Sportsman 850 Touring SP
    • Sportsman X2 850

Replaces OEM

  • POLARIS
    • 4011427
    • 4014006

Technical Details

Unit Type Part
Part Type STATOR COIL
Dimensions Internal diameter: 69mm
External diameter: 144mm
Thickness: 20mm
Length of wires: 100mm
Other Number of wires: 3

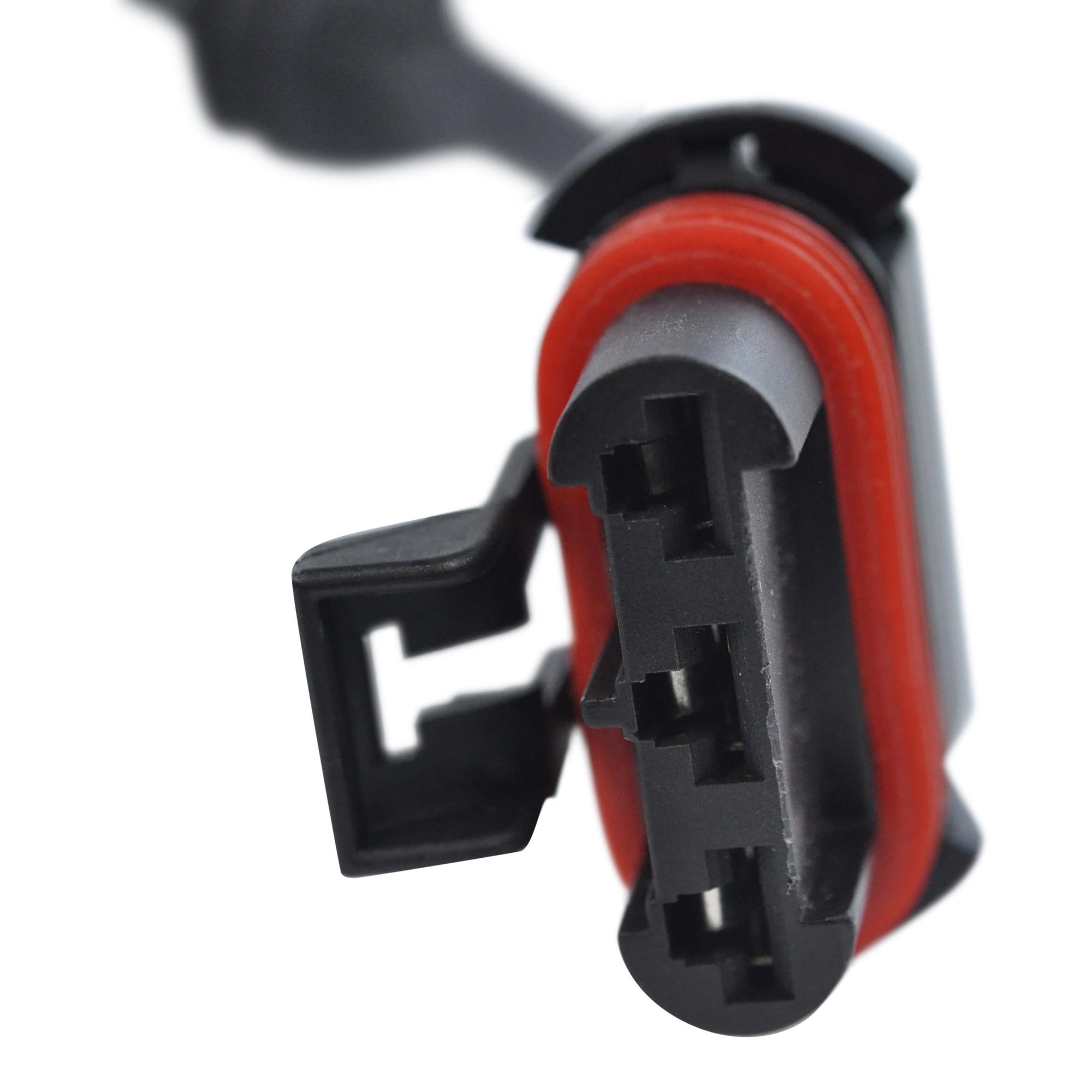

Number of plugs: 1
Number of pins: 3Wire to wire resistance:
Alternator: Between each white = 0.2ohms +/-20%
Brief Polaris:
Sportsman 850
Sportsman X2 850
Sportsman 850 HO
Scrambler 850 HO
Scrambler 1000
Scrambler 850
Installation Before installing your new stator

  • Check the AC output of the stator.
  • Replace any burnt or corroded connectors on the stator & regulator.
  • Check & repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors.

Our stator may use a different wire colour code to your original.
All of the wires are installed in the correct order, please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement & should be used as such.
When bolting the stator in, always use a locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010?.

Part Application/Fitment

Model Code Year Manufacturer Engine
Scrambler 850 RM01401 2014 Polaris
Scrambler 850 RM01401 2015 Polaris
Scrambler 850 RM01401 2016 Polaris
Scrambler 850 Euro RM01401 2014 Polaris
Scrambler 850 Euro RM01401 2015 Polaris
Scrambler 1000 XP RM01401 2014 Polaris
Scrambler 1000 XP RM01401 2015 Polaris
Scrambler 1000 XP RM01401 2016 Polaris
Scrambler 1000 XP Euro RM01401 2015 Polaris
Sportsman 850 RM01401 2015 Polaris
Sportsman 850 RM01401 2016 Polaris
Sportsman 850 Forest RM01401 2012 Polaris
Sportsman 850 Forest RM01401 2013 Polaris
Sportsman 850 Forest RM01401 2014 Polaris
Sportsman 850 High Lifter RM01401 2016 Polaris
Sportsman 850 Touring SP RM01401 2015 Polaris
Sportsman 850 XP RM01401 2009 Polaris
Sportsman 850 XP RM01401 2010 Polaris
Sportsman 850 XP RM01401 2011 Polaris
Sportsman 850 XP RM01401 2012 Polaris
Sportsman 850 XP RM01401 2013 Polaris
Sportsman 850 XP RM01401 2014 Polaris
Sportsman 850 XP EPS INTL RM01401 2010 Polaris
Sportsman 850 XP EPS INTL RM01401 2012 Polaris
Sportsman 850 XP EPS INTL RM01401 2013 Polaris
Sportsman 850 XP EPS INTL RM01401 2014 Polaris
Sportsman 850 XP EPS INTL RM01401 2015 Polaris
Sportsman 1000 XP RM01401 2015 Polaris
Sportsman X2 850 RM01401 2011 Polaris

Interchanges/Cross References

Model Code
4011427 Polaris
4014006 Polaris
4011427 Polaris
4014006 Polaris
