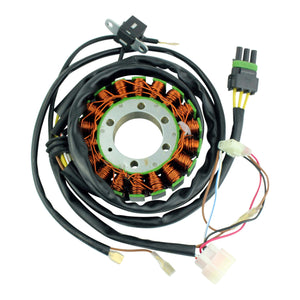

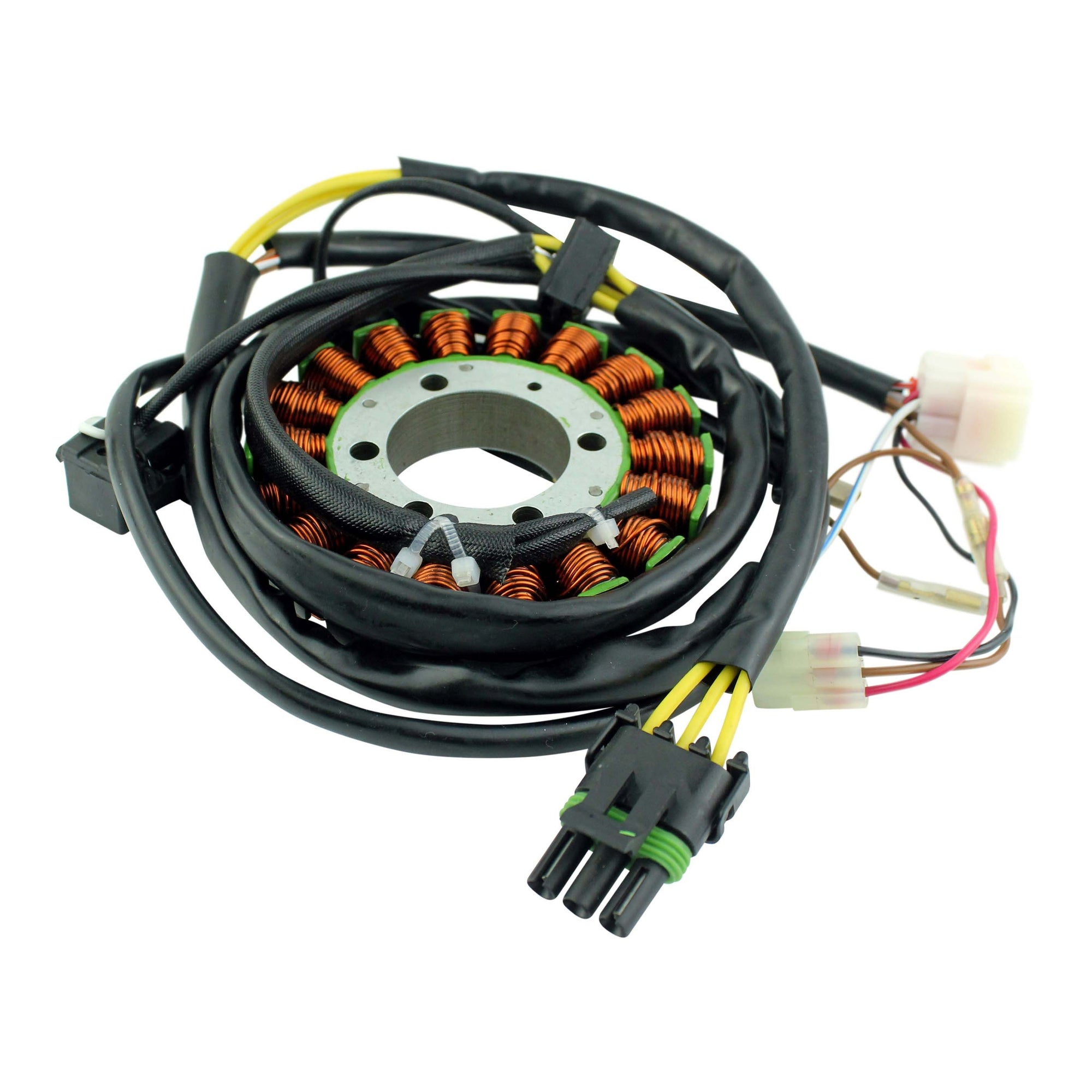

Polaris Scrambler 500 | Sportsman 400 Stator Coil For Replaces 3089249
- Direct replacement to your original unit
- Plug-og-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
- One year limited warranty
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Used on
- Polaris Scrambler 500 2004 -2006
- Scrambler 500 2×4 Int’l 2007 -2008
- Scrambler 500 4×4 2010 -2012
- Scrambler 500 4×4 Carb 2007 -2009
- Scrambler 500 4×4 INTL 2011 -2012
- Scrambler 500 4×4 Int’l 2010 -2010
- Sportsman 400 2004 -2004
- Sportsman 500 2004 -2004
- Sportsman 500 HO 2004 -2004
Erstatter OEM
Tekniske detaljer
Dimensions :
Interior diameter : 41mm
Exterior diameter : 108mm
Thickness : 18mm
Length of wires stator to grommet : 145mm
Length of wires grommet to plug : 950mm
Length of pickup coil’s wire to grommet : 95mm
Other specifications :
Number of wires : 7
Number of plugs : 5
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Pickup : White to White/Red = 195ohms +/-20%
Passer specifikt på disse modeller
| Model |
Delnummer |
År |
Mærke |
Motor |
| Ranger 500 Carb |
RM01323 |
2009 |
Polaris |
|
| Scrambler 500 2x4 Intl |
RM01323 |
2009 |
Polaris |
|
| Scrambler 500 4x4 Intl |
RM01323 |
2009 |
Polaris |
|
| Sportsman 400 HO F/C Carb |
RM01323 |
2008 |
Polaris |
|
| Sportsman 400 HO F/C Carb |
RM01323 |
2009 |
Polaris |
|
| Sportsman 400 HO F/C Carb |
RM01323 |
2010 |
Polaris |
|
| Sportsman 400 HO F/C Carb |
RM01323 |
2011 |
Polaris |
|
| Sportsman 400 HO F/C Carb |
RM01323 |
2012 |
Polaris |
|
| Sportsman 400 HO F/C Carb |
RM01323 |
2013 |
Polaris |
|
| Sportsman 400 HO F/C Carb |
RM01323 |
2014 |
Polaris |
|
| Sportsman 500 HO |
RM01323 |
2011 |
Polaris |
|
| Sportsman 500 HO EFI |
RM01323 |
2010 |
Polaris |
|
| Sportsman 500 Touring |
RM01323 |
2010 |
Polaris |
|
| Sportsman 500 Touring |
RM01323 |
2011 |
Polaris |
|
| Sportsman 500 Touring |
RM01323 |
2012 |
Polaris |
|
Erstatter følgende originale varenumre
| Varenummer |
Mærke |
| 3089249 |
Polaris |
| 3089853 |
Polaris |
| 3090061 |
Polaris |
