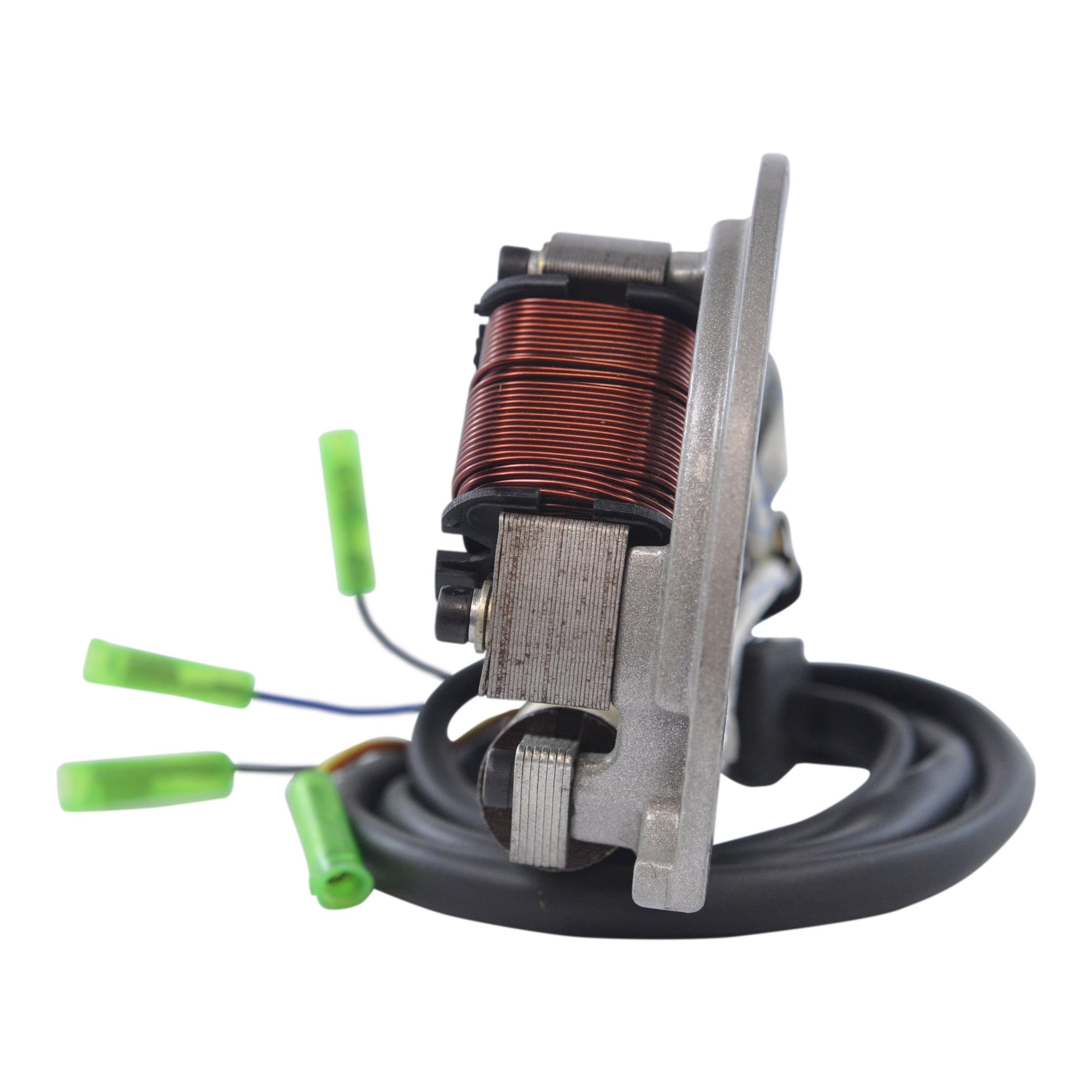

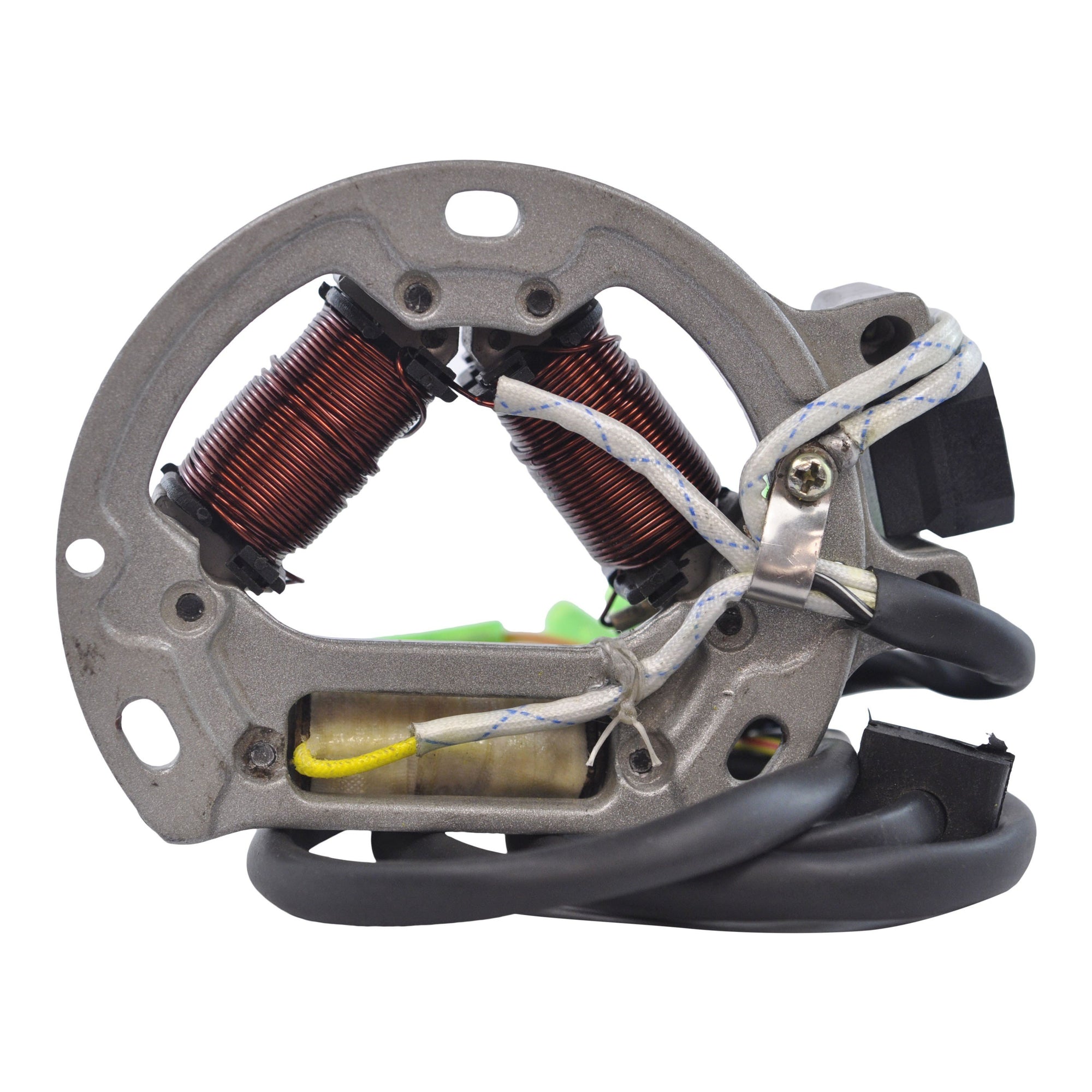

High Output Stator 130W Suzuki LT 250R Quadracer 85–92 LT 500R Quadracer 87–90

High Output Stator 130W Suzuki LT 250R Quadracer 85-92 LT 500R Quadracer 87-90

• Quality Product
• Made with premium materials

Fits Models

• Suzuki LT 250 R Quadracer 1985 -1992
• LT 500 R Quadracer 1987 -1990

Replaces OEM

• 32101-19A00
• 32101-43B00

Plug-and-Play / Direct Fit

Technical Details

Number of wires : 4
Number of terminals : 4
Alternator : Yellow/Red to Black/White = 1.6 ohms+/-20%

Before installing your new stator

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator/rectifier
• Check and repair any melted wiring.
• Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.

When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010?.
