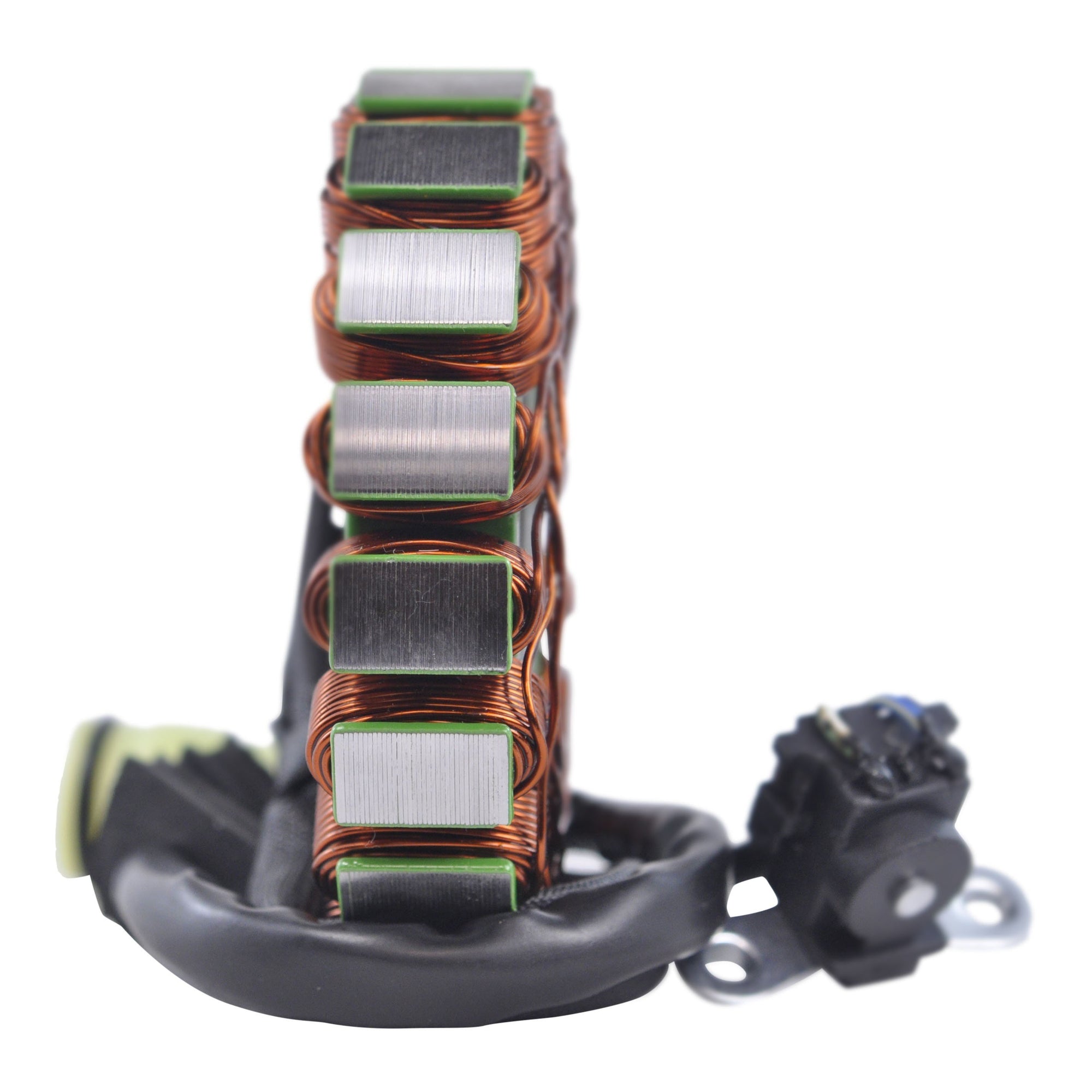

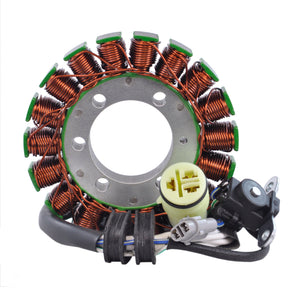

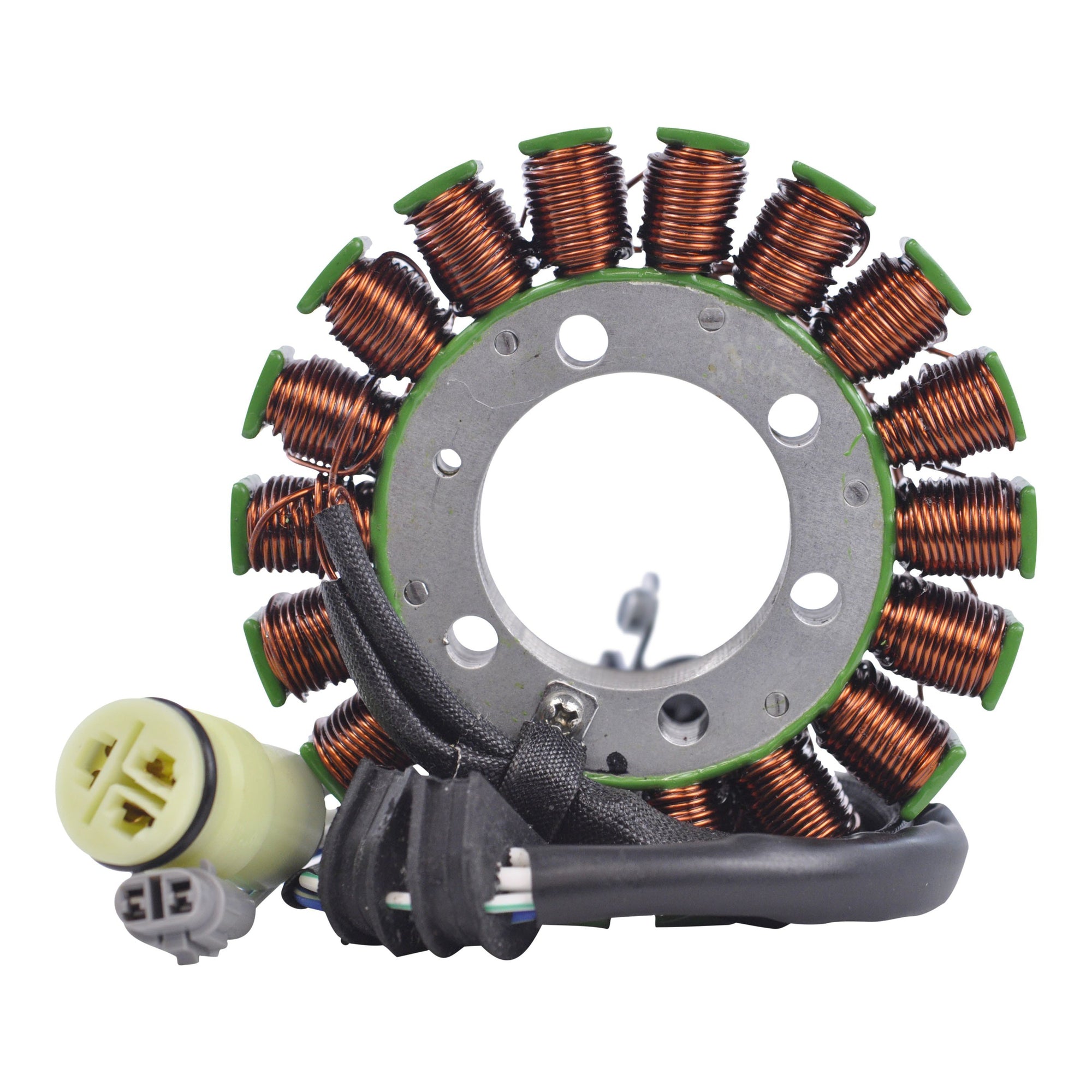

Yamaha YFM700R Raptor Stator Coil | Replaces 1S3–81410–00–00

Yamaha YFM700R Raptor Stator Coil | Replaces 1S3-81410-00-00

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

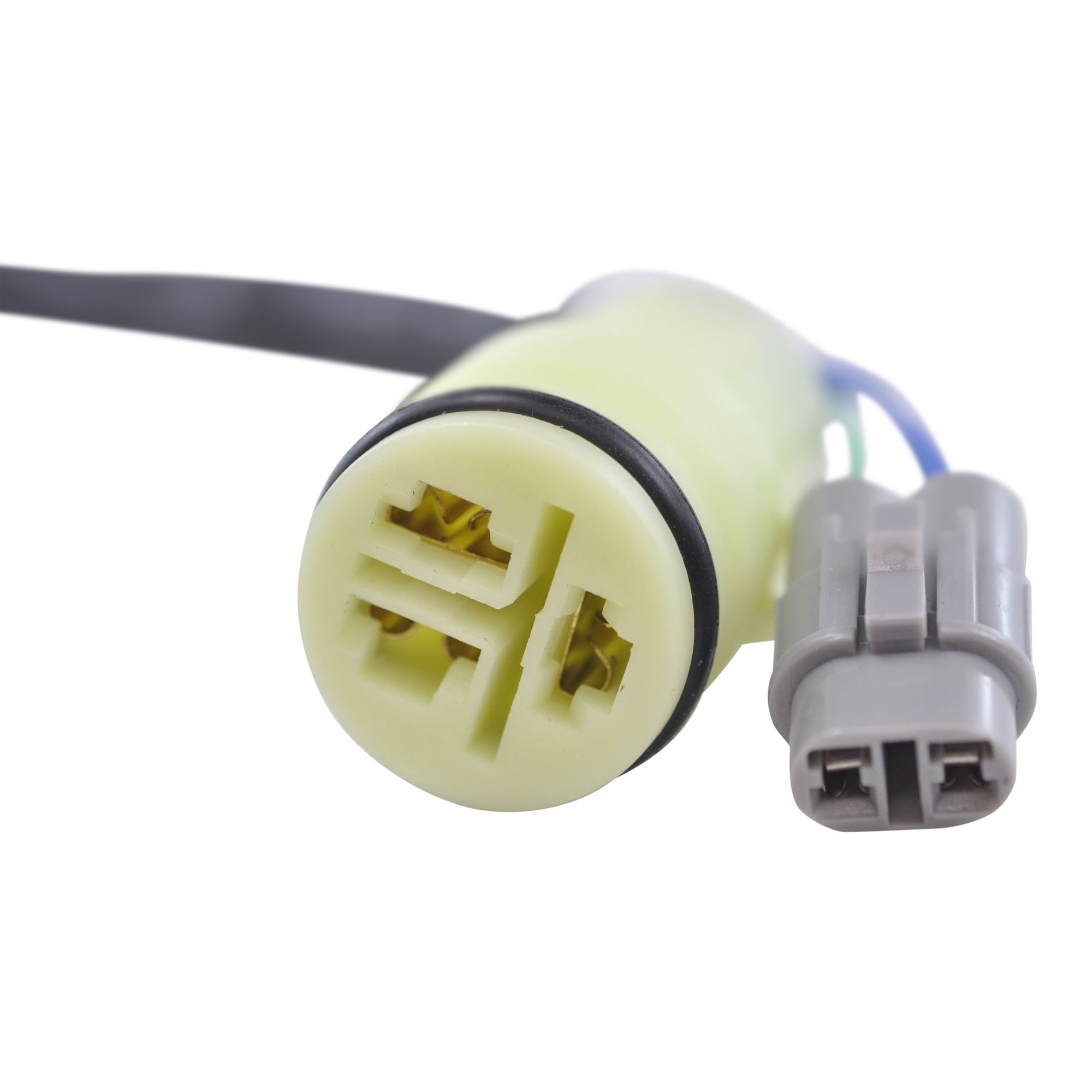

• Connector included
• Rubber grommet included
• All product shipped are tested
• One year limited warranty

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Fits models

• Yamaha YFM 700 R Raptor 2006 2016

Replaces OEM

• 1S3-81410-00-00

Technical Details

Wire to wire resistance :
Alternator : White between each White = 0.8 ohms +/- 20%
Pickup Coil : Blue/White to White/Green = 250 ohms +/- 20 %

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 107 mm
Thickness : 18 mm

Before installing your new stator

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator/rectifier
• Check and repair any melted wiring.
• Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original. `
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.
