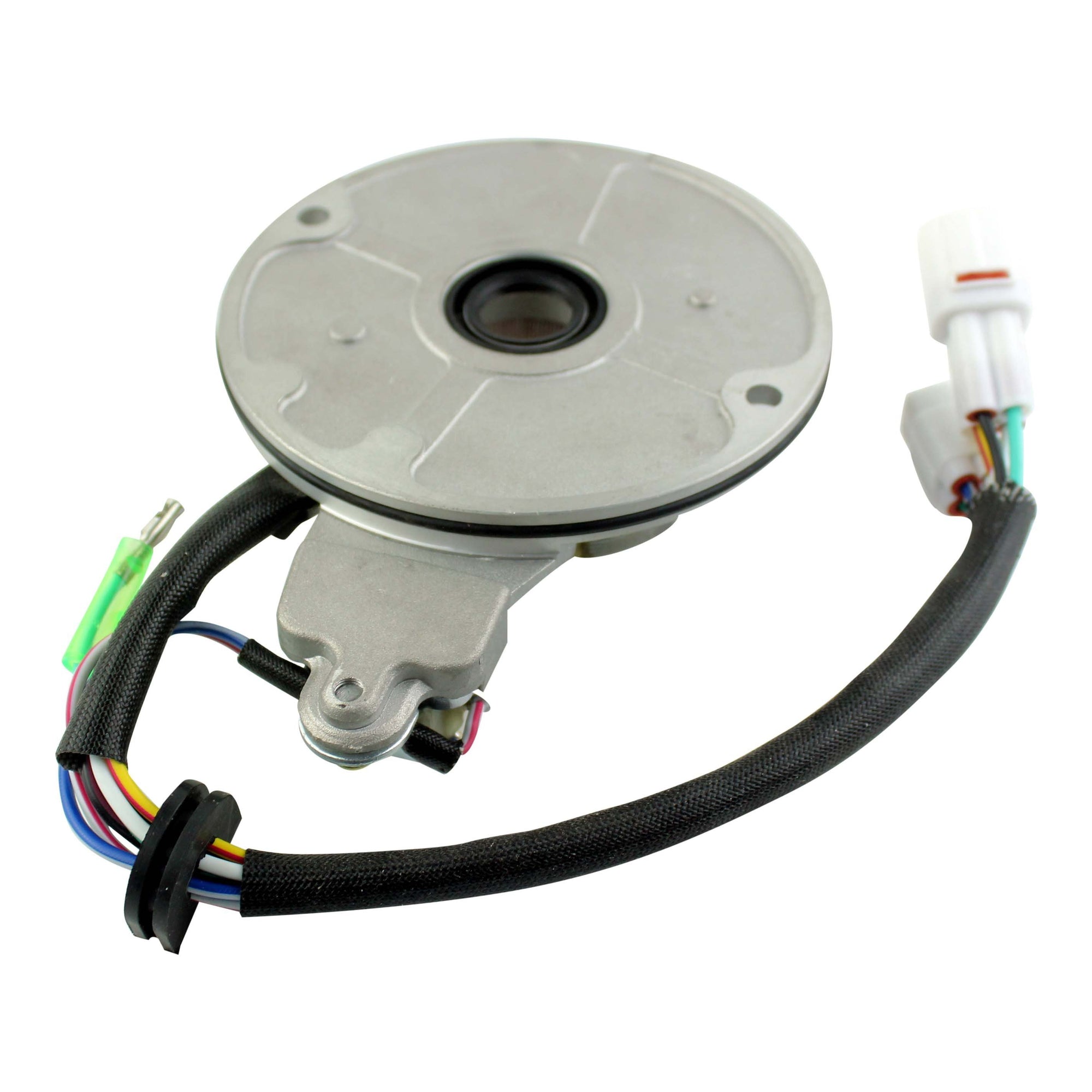

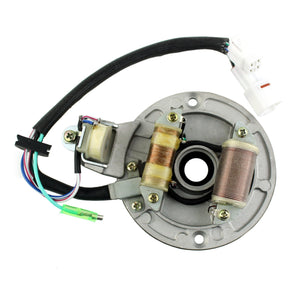

Yamaha YFM50 Raptor | YFM80 Badger Grizzly Raptor | Replaces 4EM–85560–10–00

Yamaha YFM50 Raptor | YFM80 Badger Grizzly Raptor | Replaces 4EM-85560-10-00

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Back Plate included
• All products shipped are tested
• One year limited warranty

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Used on

• Yamaha
  • YFM 50 Raptor 2004 -2008
  • YFM 80 Badger 1995 -2001
  • YFM 80 Grizzly 2005 -2008
  • YFM 80 Raptor 2002 -2008

Replaces OEM

• 4EM-85560-10-00

Technical Details

Dimensions :
Interior diameter : 27mm
Exterior diameter : 111mm
Thickness : 14mm
Length of wires stator to grommet : 60mm
Length of wires grommet to plug : 180mm
Length of pickup coil’s wire to grommet : 60mm

Other specifications :
Number of wires : 8
Number of plugs : 2
Number of pins : 8

Wire to wire resistance :
Alternator : Yellow/Red to White = 0.4ohms +/-20%
Pickup : White/Blue to White/Red = 320ohms +/-20%
Source : Red/Black to Ground = 0.1ohms +/-20%
