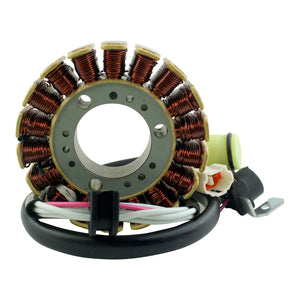

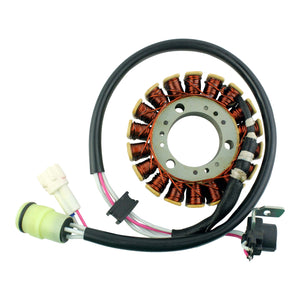

Yamaha YFM125 Grizzly Stator Coil | Replaces Yamaha 1C5-81410-00-00
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
- One year limited warranty
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Fits Models
- Yamaha YFM 125 Grizzly 2004 -2013
Replaces OEM
Technical Details
Dimensions :
Interior diameter : 36mm
Exterior diameter : 93mm
Thickness : 18mm
Length of wires stator to grommet : 60mm
Length of wires grommet to plug : 425mm
Length of pickup coil’s wire to grommet : 40mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : White between each White = 0.4ohms +/-20%
Pickup : White to Pink = 290ohms +/-20%
Part Application/Fitment
| Model |
Code |
Year |
Manufacturer |
Engine |
| YFM 125 Grizzly |
RM01419 |
2004 |
Yamaha |
|
| YFM 125 Grizzly |
RM01419 |
2005 |
Yamaha |
|
| YFM 125 Grizzly |
RM01419 |
2006 |
Yamaha |
|
| YFM 125 Grizzly |
RM01419 |
2007 |
Yamaha |
|
| YFM 125 Grizzly |
RM01419 |
2008 |
Yamaha |
|
| YFM 125 Grizzly |
RM01419 |
2009 |
Yamaha |
|
| YFM 125 Grizzly |
RM01419 |
2010 |
Yamaha |
|
| YFM 125 Grizzly |
RM01419 |
2011 |
Yamaha |
|
| YFM 125 Grizzly |
RM01419 |
2012 |
Yamaha |
|
| YFM 125 Grizzly |
RM01419 |
2013 |
Yamaha |
|
Interchanges/Cross References
| Model |
Code |
| 1C5-81410-00-00 |
Yamaha |
| 1C5-81410-00-00 |
Yamaha |
