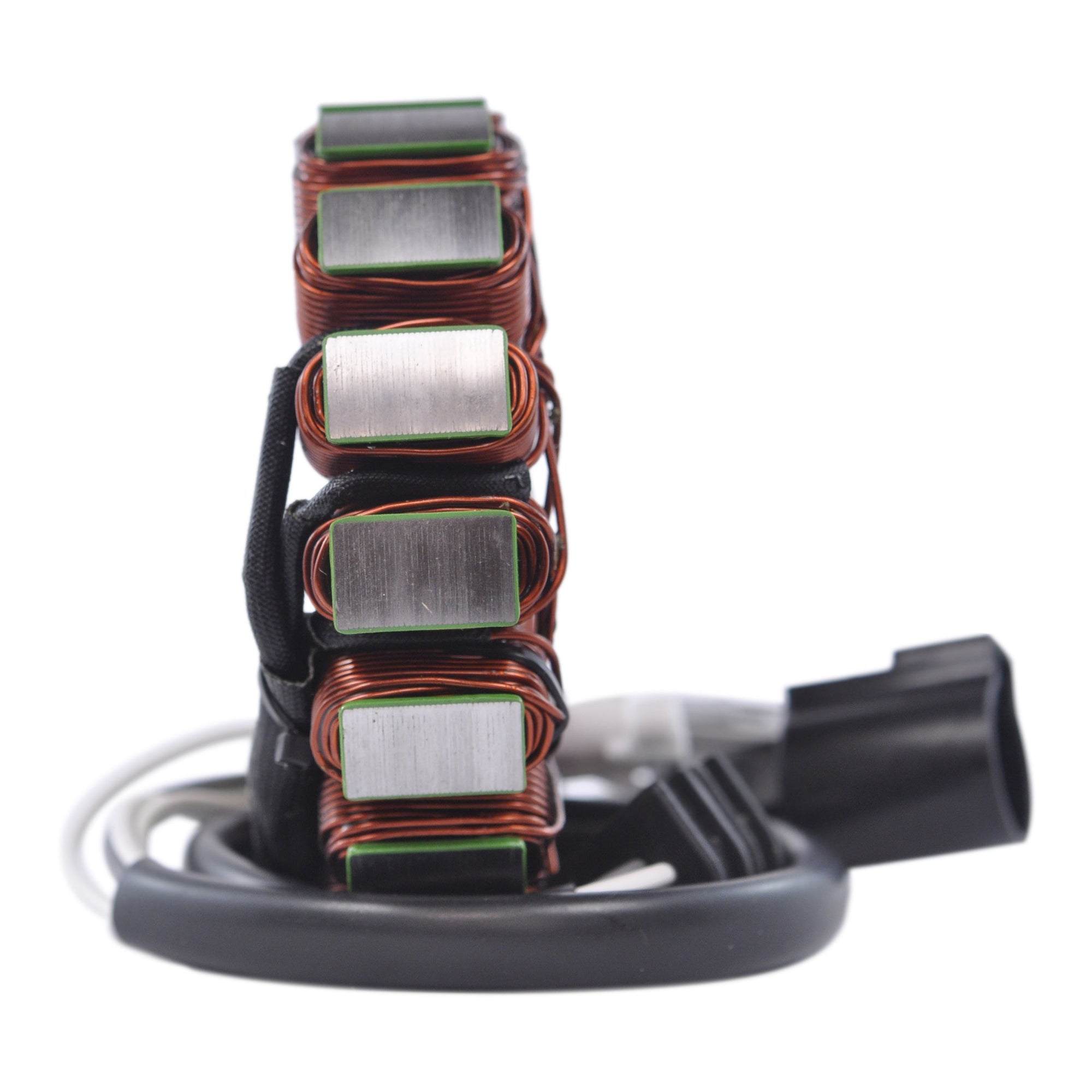

Stator For Yamaha | YXR700 Rhino 3 YXM Viking 700 | 2008-2014
- Kvalitetsprodukt
- Uoriginal - men lige så god som original
Also available
Stator Cover Gasket RM08024
Perfect to complement your Stator.
Passer til følgende modeller
- Yamaha YXM Viking 700 2014 -2017
- YXR 700 Rhino 2008 -2009
- YXR 700 Rhino 2011 -2013
Erstatter OEM
- 1XD-81410-00-00
- 5B4-81410-00-00
Tekniske detaljer
Number of wires : 5
Number of terminals : 5
Alternator : Between each white = 0.4 ohms+/-20%
Pick up coil : White to Grey = 500 ohms =/-20%
Before installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator og regulator/rectifier
- Check og repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement og should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010?.
Passer specifikt på disse modeller
| Model |
Delnummer |
År |
Mærke |
Motor |
| YXC 700 Viking VI |
RM01191 |
2015 |
Yamaha |
|
| YXC 700 Viking VI |
RM01191 |
2016 |
Yamaha |
|
| YXC 700 Viking VI |
RM01191 |
2017 |
Yamaha |
|
| YXC 700 Viking VI |
RM01191 |
2018 |
Yamaha |
|
| YXC 700 Viking VI |
RM01191 |
2019 |
Yamaha |
|
| YXC 700 Viking VI |
RM01191 |
2020 |
Yamaha |
|
| YXC 700 Viking VI |
RM01191 |
2021 |
Yamaha |
|
| YXM 700 Viking |
RM01191 |
2014 |
Yamaha |
|
| YXM 700 Viking |
RM01191 |
2015 |
Yamaha |
|
| YXM 700 Viking |
RM01191 |
2016 |
Yamaha |
|
| YXM 700 Viking |
RM01191 |
2017 |
Yamaha |
|
| YXM 700 Viking |
RM01191 |
2018 |
Yamaha |
|
| YXM 700 Viking |
RM01191 |
2019 |
Yamaha |
|
| YXM 700 Viking |
RM01191 |
2020 |
Yamaha |
|
| YXM 700 Viking |
RM01191 |
2021 |
Yamaha |
|
| YXR 700 Rhino |
RM01191 |
2008 |
Yamaha |
|
| YXR 700 Rhino |
RM01191 |
2009 |
Yamaha |
|
| YXR 700 Rhino |
RM01191 |
2011 |
Yamaha |
|
| YXR 700 Rhino |
RM01191 |
2012 |
Yamaha |
|
| YXR 700 Rhino |
RM01191 |
2013 |
Yamaha |
|
Erstatter følgende originale varenumre
| Varenummer |
Mærke |
| 1XD-81410-00-00 |
Yamaha |
| 5B4-81410-00-00 |
Yamaha |
| 1XD-81410-00-00 |
Yamaha |
| 5B4-81410-00-00 |
Yamaha |
