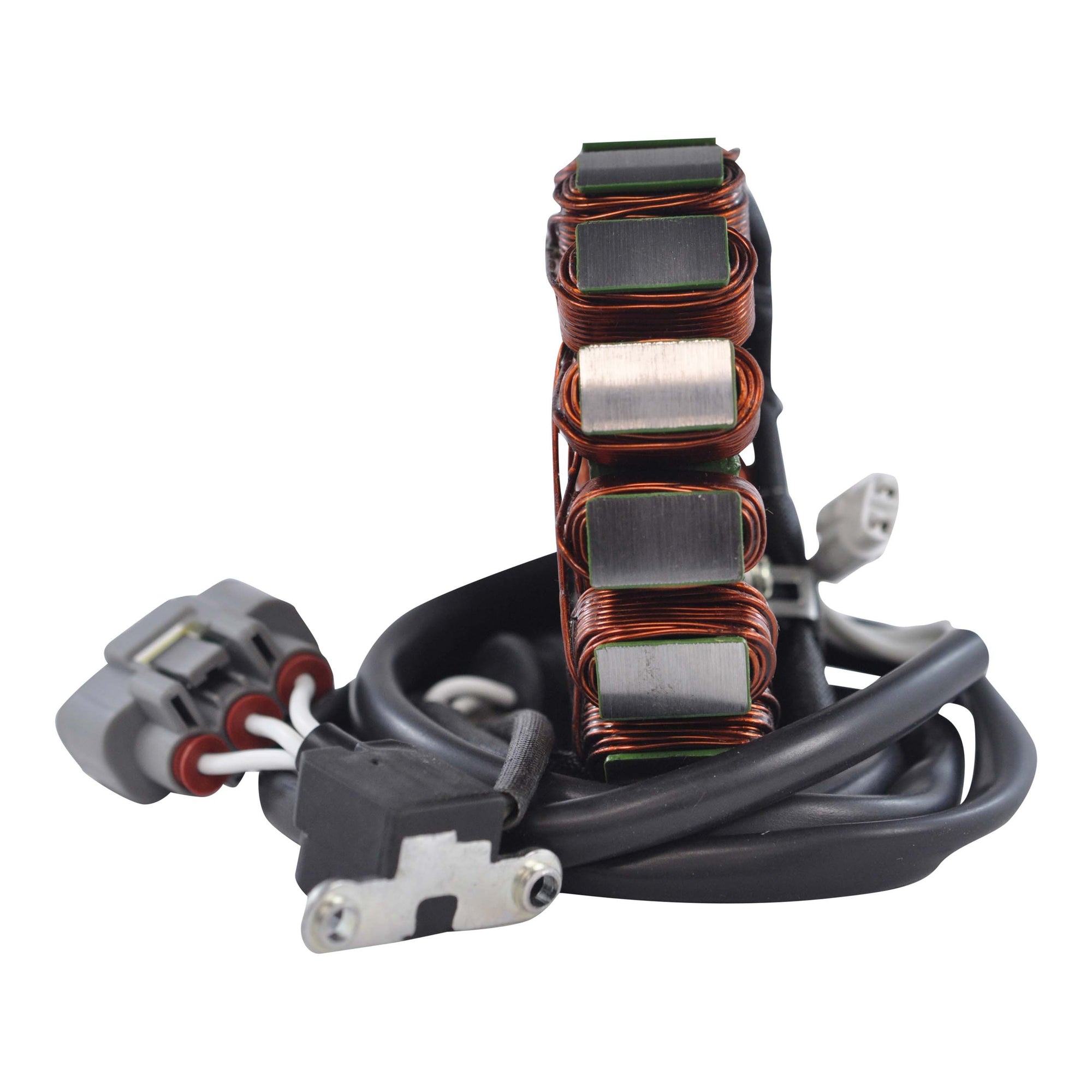

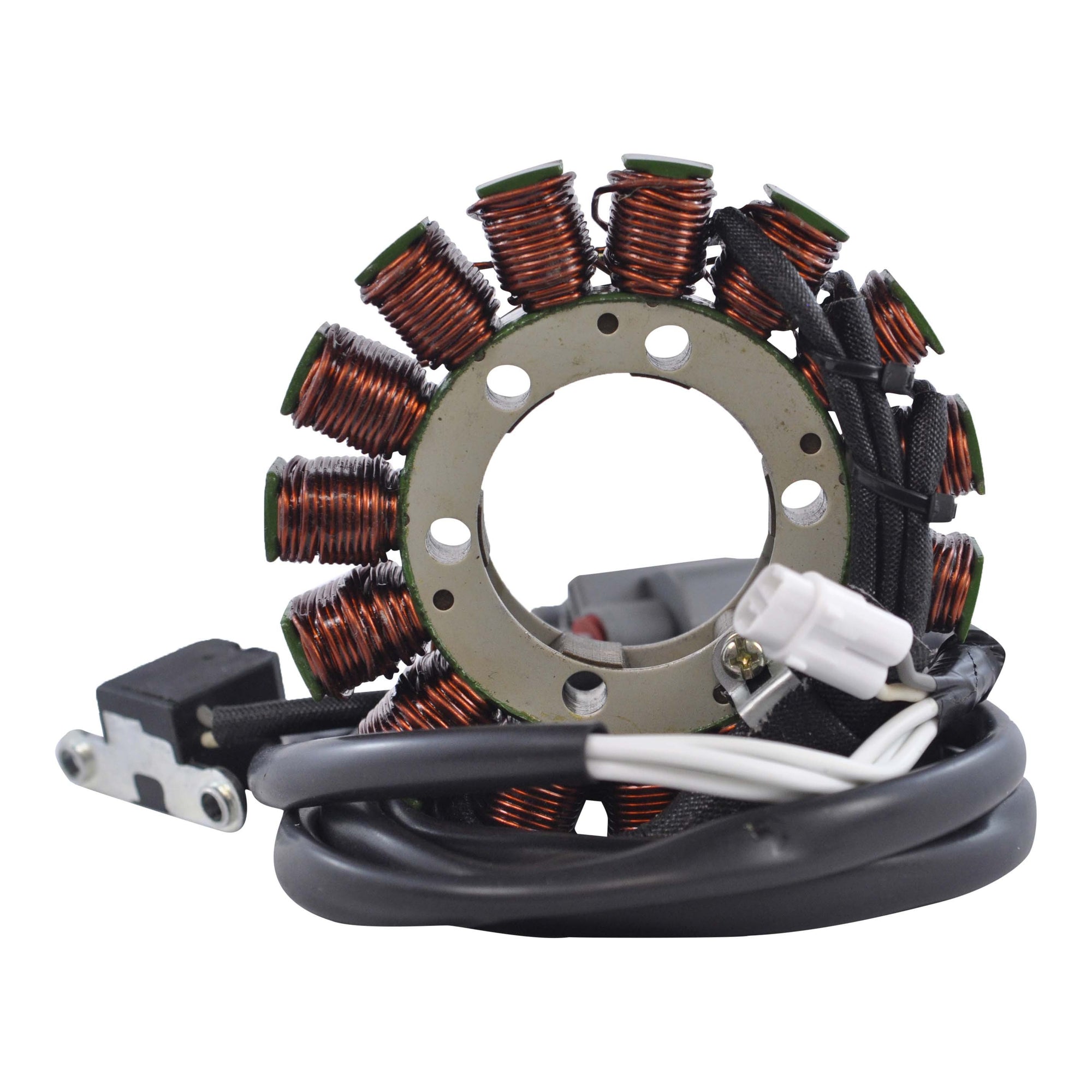

Stator For Yamaha | YFM 550 Grizzly + YFM 700 Grizzly | 2007-2020
Also available
Stator Cover Gasket RM08024
Perfect to complement your Stator.
Fits Models
- Yamaha YFM 550 Grizzly 2009 -2014
- YFM 700 Grizzly 2007 -2020
Replaces OEM
- 28P-81410-00-00
- 28P-81410-01-00
- 3B4-81410-00-00
Plug-and-Play / Direct Fit
Technical Details
Dimensions :
Interior diameter : 45mm
Exterior diameter : 106mm
Thickness : 27mm
Length of wires stator to grommet : 100mm

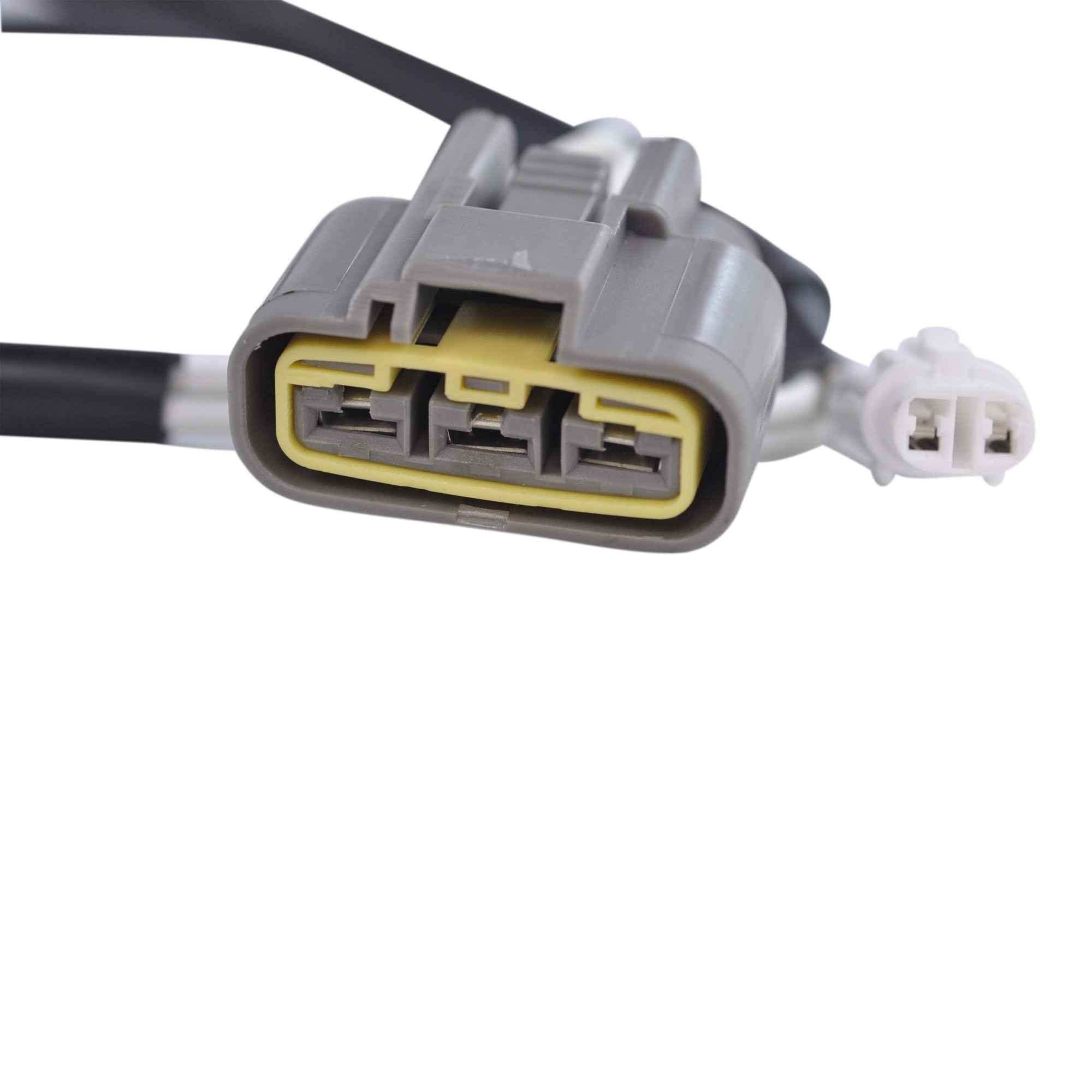

Length of wires grommet to plug : 550mm, 1100mm
Length of pickup coil’s wire to grommet : 80mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : White between each White = 0.4ohms +/-20%
Alternator : White to Ground = 0.L on Display
Pickup : White to Grey = 500ohms +/-20%
Part Application/Fitment
| Model |
Code |
Year |
Manufacturer |
Engine |
| YFM 550 Grizzly |
RM01004 |
2009 |
Yamaha |
|
| YFM 550 Grizzly |
RM01004 |
2010 |
Yamaha |
|
| YFM 550 Grizzly |
RM01004 |
2011 |
Yamaha |
|
| YFM 550 Grizzly |
RM01004 |
2012 |
Yamaha |
|
| YFM 550 Grizzly |
RM01004 |
2013 |
Yamaha |
|
| YFM 550 Grizzly |
RM01004 |
2014 |
Yamaha |
|
| YFM 550 Grizzly |
RM01004 |
2011 |
Yamaha |
|
| YFM 550 Grizzly |
RM01004 |
2012 |
Yamaha |
|
| YFM 550 Grizzly |
RM01004 |
2013 |
Yamaha |
|
| YFM 550 Grizzly |
RM01004 |
2014 |
Yamaha |
|
| YFM 550 Grizzly |
RM01004 |
2011 |
Yamaha |
|
| YFM 550 Grizzly |
RM01004 |
2012 |
Yamaha |
|
| YFM 550 Grizzly |
RM01004 |
2013 |
Yamaha |
|
| YFM 550 Grizzly |
RM01004 |
2014 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2007 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2008 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2009 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2010 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2011 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2012 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2013 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2014 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2015 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2016 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2017 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2018 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2019 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2020 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2021 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2011 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2012 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2013 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2014 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2015 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2011 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2012 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2013 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2014 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2015 |
Yamaha |
|
| YFM 700 Grizzly |
RM01004 |
2019 |
Yamaha |
|
| YFM 700 Grizzly |
Interchanges/Cross References
| Model |
Code |
| 28P-81410-00-00 |
Yamaha |
| 28P-81410-01-00 |
Yamaha |
| 3B4-81410-00-00 |
Yamaha |
| 28P-81410-00-00 |
Yamaha |
| 28P-81410-01-00 |
Yamaha |
| 3B4-81410-00-00 |
Yamaha |
