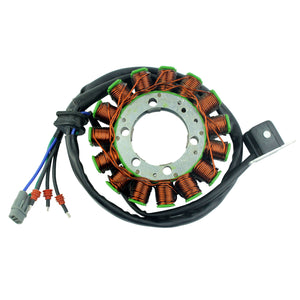

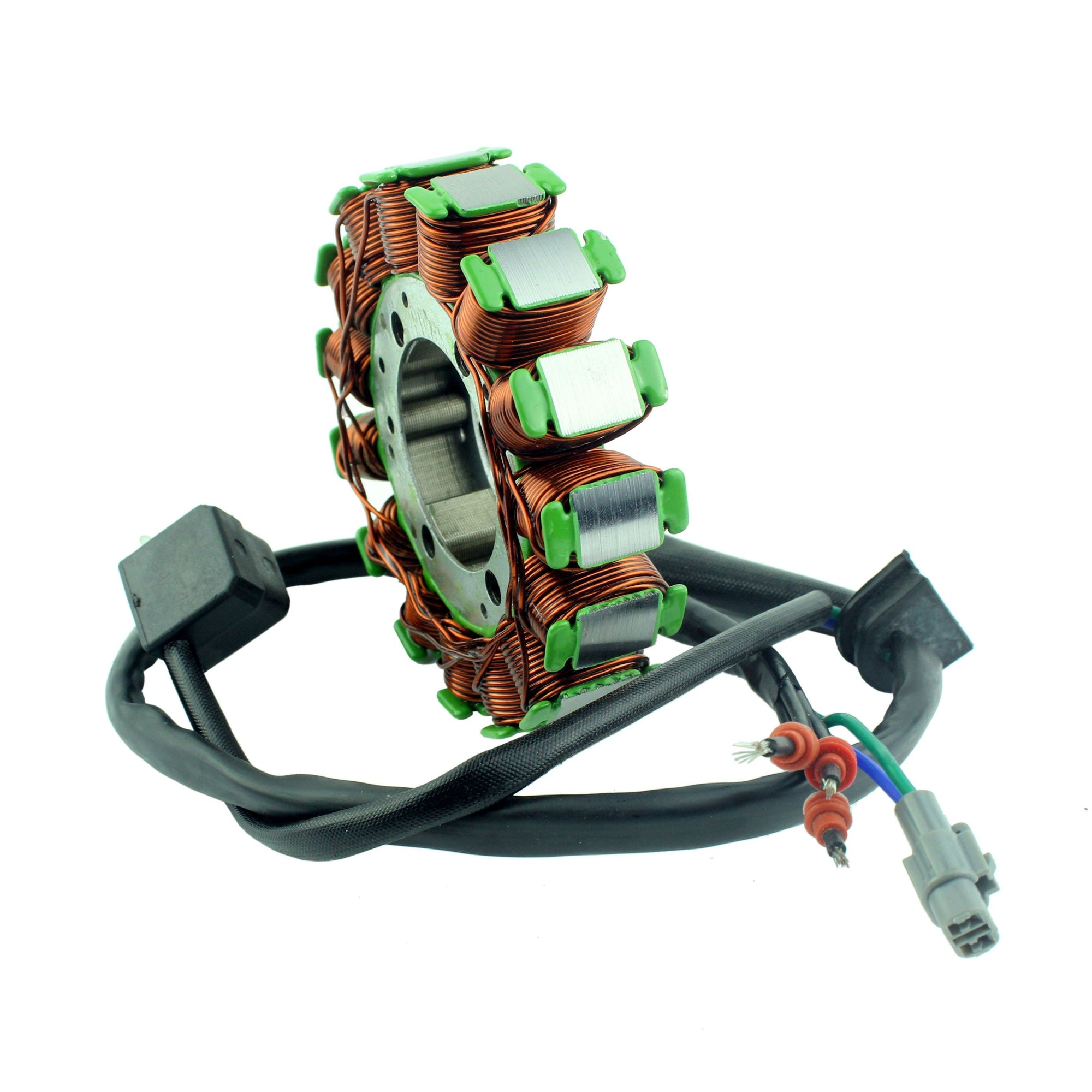

Replacement Stator | Suzuki
Don’t forget to compliment your new Stator with a brand new Cover Gasket: RM08020
Passer til følgende modeller
- LTZ 400 Quadsport Z400 2009
- LTZ 400 Quadsport Z400 2012-2014
Erstatter OEM
Tekniske detaljer
Dimensions :
Interior diameter : 42mm
Exterior diameter : 105mm
Thickness : 15mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 180mm
Length of pickup coil’s wire to grommet : 450mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Blue to Black = 0.4ohms +/-20%
Pickup : Green to Blue = 500ohms +/-20%
Before installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original. `
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.
Passer specifikt på disse modeller
| Model |
Delnummer |
År |
Mærke |
Motor |
| LTZ 400 Quadsport Z400 |
RM01423 |
2009 |
Suzuki |
|
| LTZ 400 Quadsport Z400 |
RM01423 |
2012 |
Suzuki |
|
| LTZ 400 Quadsport Z400 |
RM01423 |
2013 |
Suzuki |
|
| LTZ 400 Quadsport Z400 |
RM01423 |
2014 |
Suzuki |
|
Erstatter følgende originale varenumre
| Varenummer |
Mærke |
| 32101-33H00 |
Suzuki |
| 32101-33H00 |
Suzuki |
