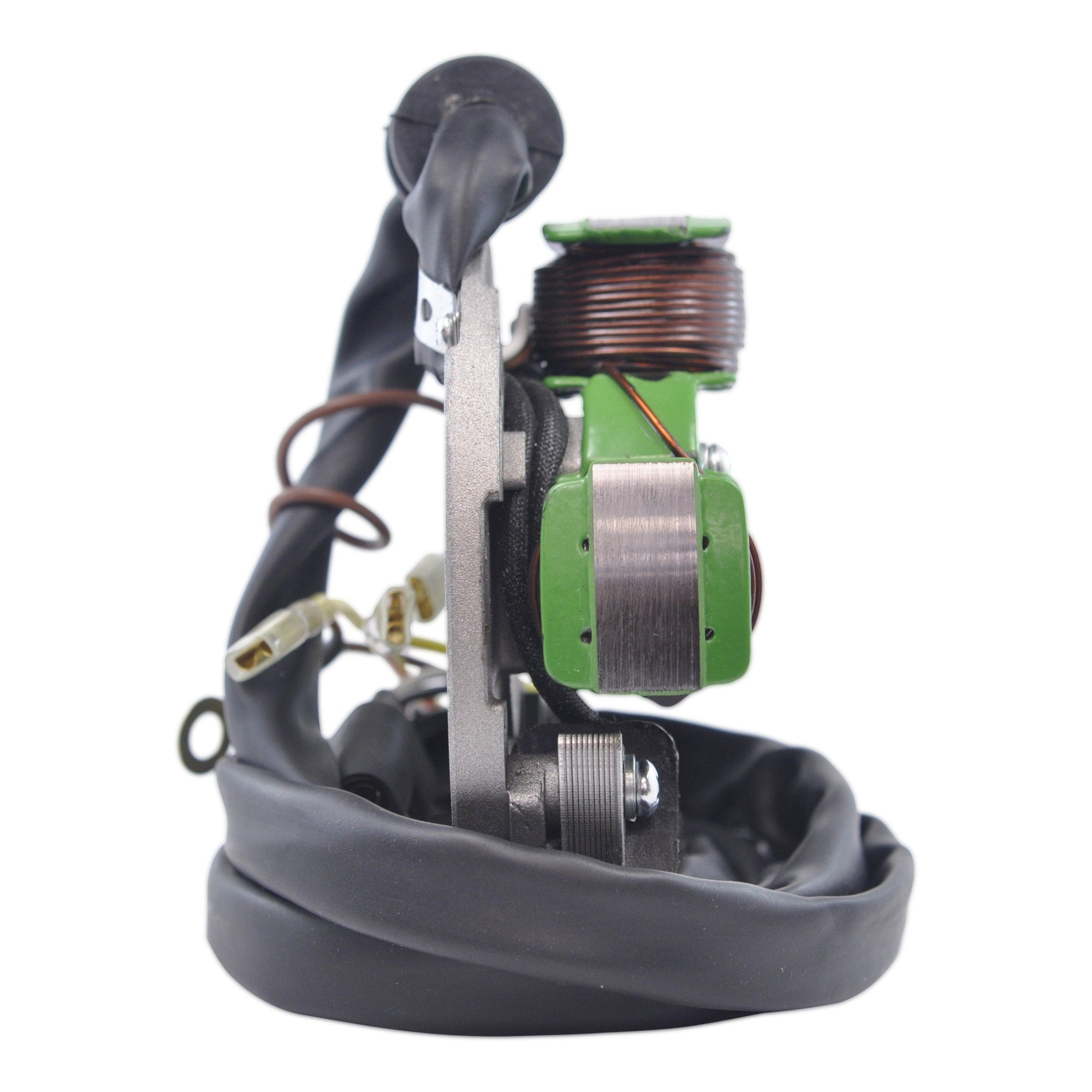

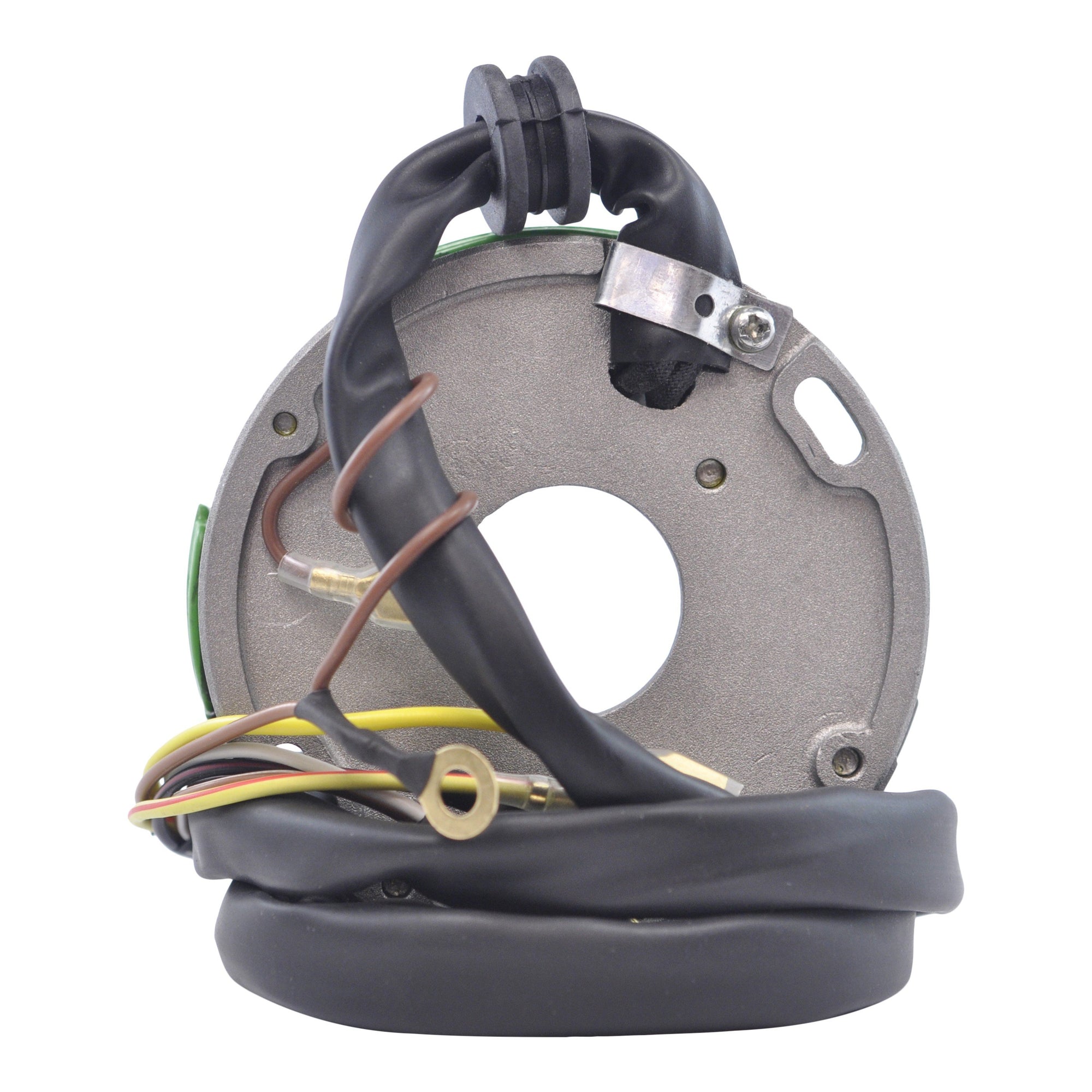

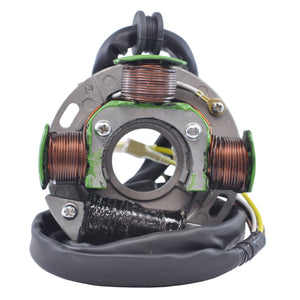

Stator for Polaris 250 Big Boss / Trail Blazer / Trail Boss / Xplorer 1989–2006

Stator for Polaris 250 Big Boss / Trail Blazer / Trail Boss / Xplorer 1989-2006

• Quality Product
• Made with premium materials

Fits Models

• Polaris 250 2×4 1993 -1993
• 250 4×4 1993 -1993
• 250 6×6 1993 -1993
• 350 L 2×4 1993 -1993
• 350 L 4×4 1993 -1993
• 350 L 6×6 1993 -1993
• Big Boss 250 1989 -1991
• Big Boss 250 4×6 1992 -1992
• Big Boss 250 6×6 1992 -1992
• Cyclone 250 1987 -1987
• Scrambler 250 1985 -1986
• Scrambler 400 1995 -1996
• Scrambler 400 2001 -2001
• Scrambler 400 2×4 1999 -2000
• Scrambler 400 2×4 2002 -2002
• Scrambler 400 4×4 1998 -2000
• Scrambler 400 4×4 2002 -2002
• Scrambler 400L 1997 -1997
• Sport 400 1998 -1999
• Sport 400 L 1994 -1994
• Sport 400 L 1996 -1997
• Sportsman 400 1993 -1993
• Trail Blazer 250 1990 -2006
• Trail Blazer 400 2003 -2003
• Trail Boss 250 1987 -1999
• Trail Boss 250 R/ES 1988 -1988
• Trail Boss 300 2×4 1995 -1995
• Trail Boss 300 4×4 1995 -1995
• Trail Boss 350 L 1990 -1992
• Xplorer 250 2000 -2002
• Xplorer 300 1996 -2002
• Xpress 300 1996 -1999
• 300 1994 -1994

Replaces OEM

• 3083318
• 3083422
• 3083976
• 3083978
• 3083979
• 3083638
• 3083907

Technical Details

Wire to wire resistance :
Alternator : Yellow to Yellow/Red = 0.04 ohms +/- 20%
Source 1 : Black/Red to Brown/White = 992 ohms +/- 20%
Ground : White to Brown = 0.2 ohms +/- 20%

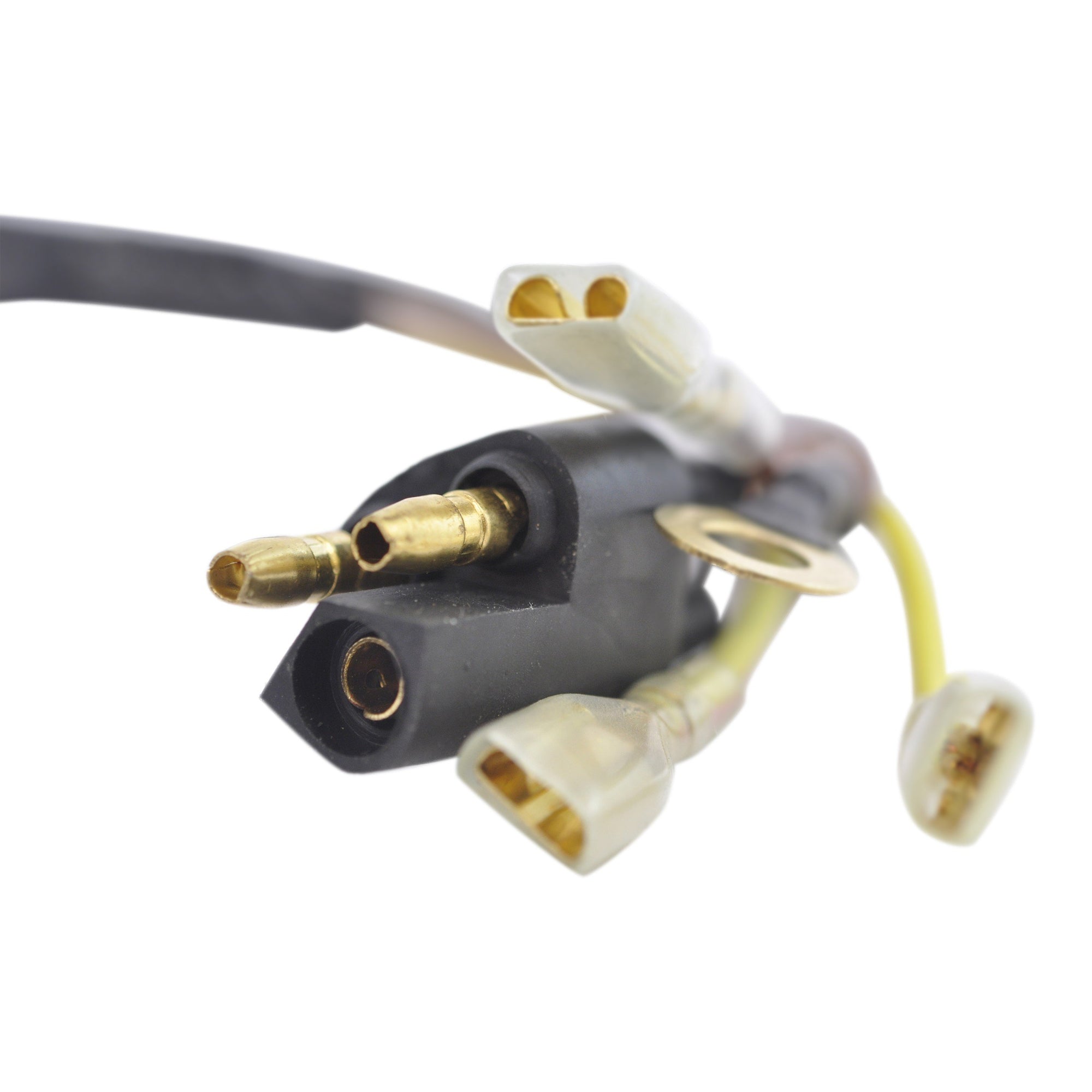

Number of wires : 7
Number of terminals : 7
Interior diameter : 31 mm
Exterior diameter : 100 mm
Thickness : 16mm
