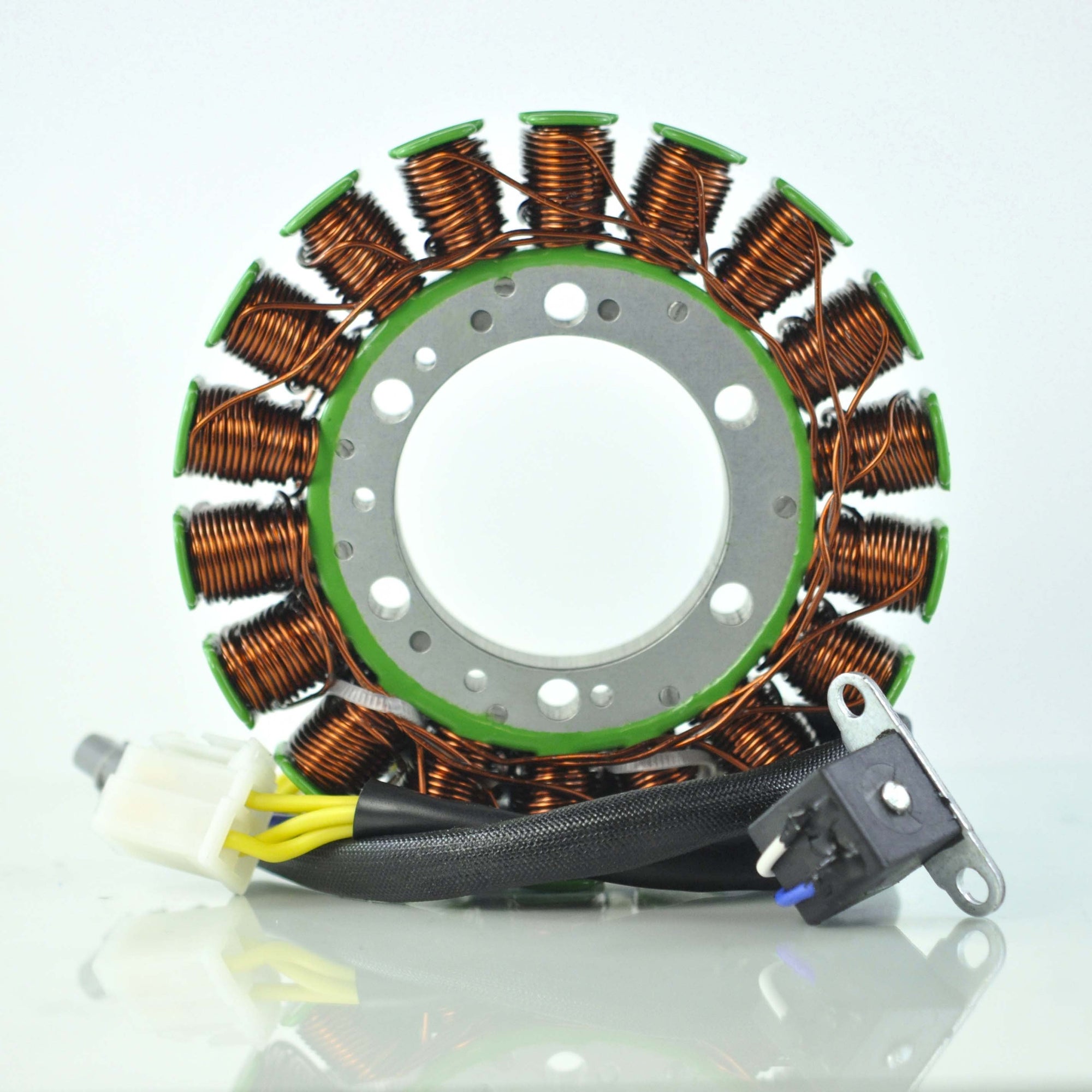

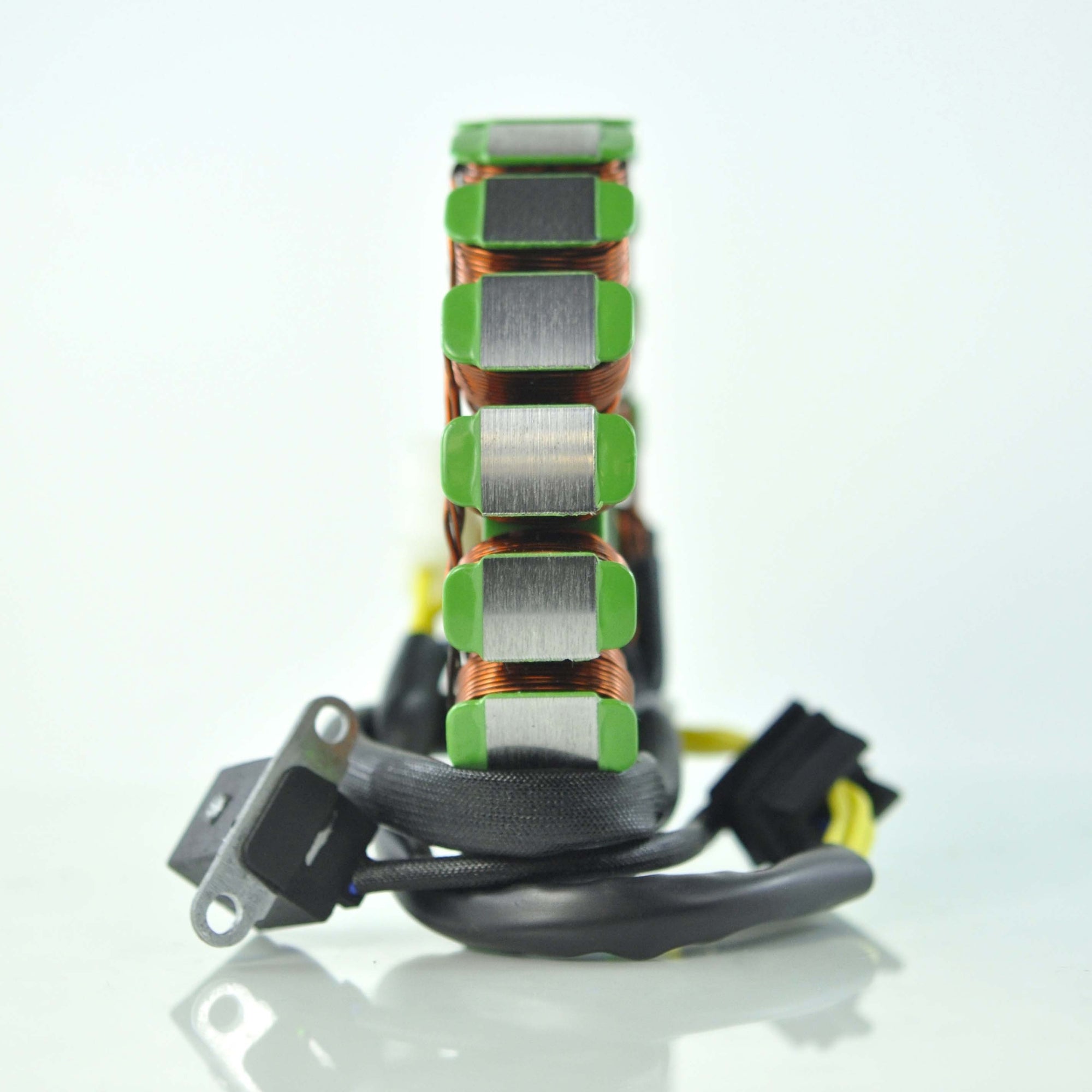

Stator For Arctic Cat | Wildcat 1000 HO/Limited/4/X/4X
Fits Models
- ARCTIC CAT
- Wildcat 4X 1000 (2012-2016)
- Wildcat Sport 1000 (2016)
- Wildcat X 1000 (2013-2016)
- Wildcat 4 1000 (2013-2014)
Replaces OEM
Technical Details
Dimenssions:
Interior Diameter : 54 mm
Exterior Diameter : 126 mm
Thickness : 20 mm
Number of wires : 5

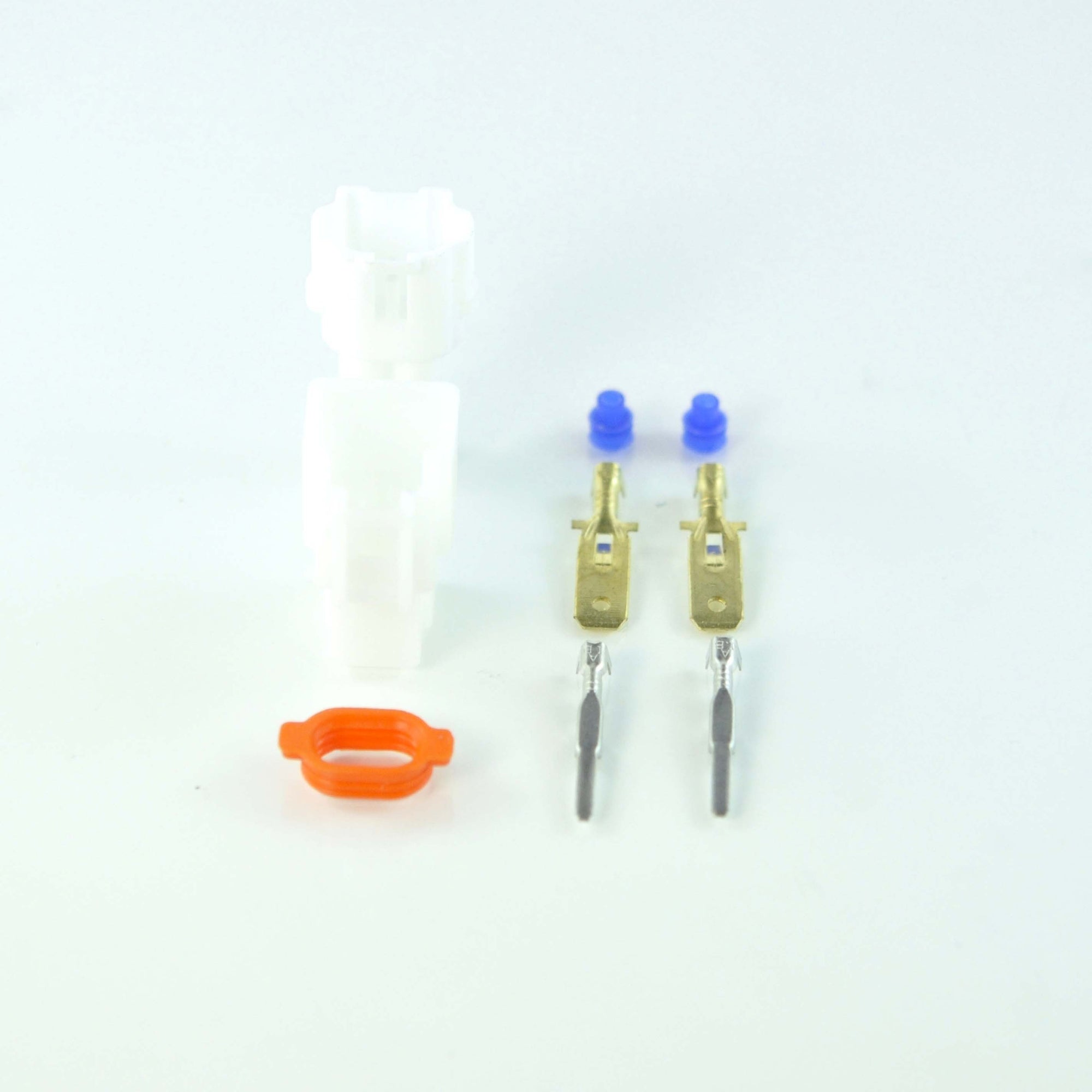

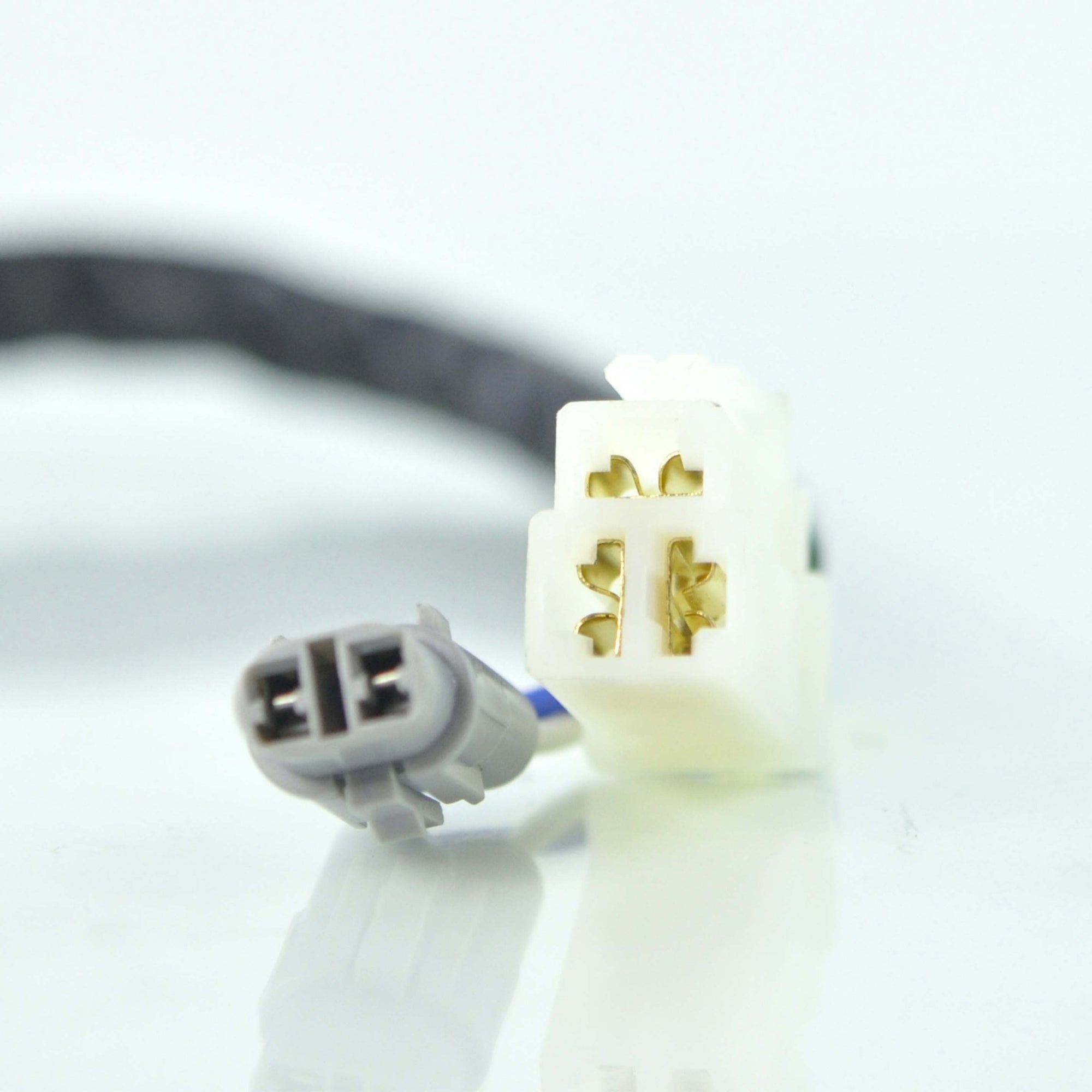

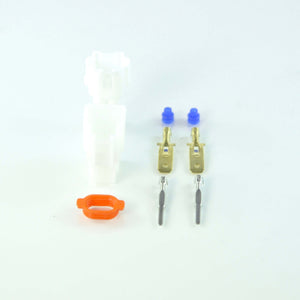

Number of plugs : 2
Alternator : Yellow to Yellow = 0.4 ohms +/- 20 %
Pickup Coil : Blue to White = 200 ohms +/- 20 %
Part Application/Fitment
| Model |
Code |
Year |
Manufacturer |
Engine |
| Wildcat 4 1000 |
RM01229 |
2013 |
Arctic Cat |
|
| Wildcat 4 1000 |
RM01229 |
2014 |
Arctic Cat |
|
| Wildcat 4X 1000 |
RM01229 |
2014 |
Arctic Cat |
|
| Wildcat 4X 1000 |
RM01229 |
2015 |
Arctic Cat |
|
| Wildcat 4X 1000 |
RM01229 |
2016 |
Arctic Cat |
|
| Wildcat 4X 1000 |
RM01229 |
2015 |
Arctic Cat |
|
| Wildcat 4X 1000 |
RM01229 |
2016 |
Arctic Cat |
|
| Wildcat 4X 1000 |
RM01229 |
2018 |
Arctic Cat |
|
| Wildcat 4X 1000 |
RM01229 |
2018 |
Arctic Cat |
|
| Wildcat 1000 |
RM01229 |
2012 |
Arctic Cat |
|
| Wildcat 1000 |
RM01229 |
2013 |
Arctic Cat |
|
| Wildcat 1000 |
RM01229 |
2014 |
Arctic Cat |
|
| Wildcat 1000 |
RM01229 |
2015 |
Arctic Cat |
|
| Wildcat 1000 |
RM01229 |
2015 |
Arctic Cat |
|
| Wildcat X 1000 |
RM01229 |
2013 |
Arctic Cat |
|
| Wildcat X 1000 |
RM01229 |
2014 |
Arctic Cat |
|
| Wildcat X 1000 |
RM01229 |
2015 |
Arctic Cat |
|
| Wildcat X 1000 |
RM01229 |
2016 |
Arctic Cat |
|
| Wildcat X 1000 |
RM01229 |
2015 |
Arctic Cat |
|
| Wildcat X 1000 |
RM01229 |
2016 |
Arctic Cat |
|
| Wildcat X 1000 |
RM01229 |
2018 |
Textron |
|
| Wildcat X 1000 |
RM01229 |
2019 |
Textron |
|
| Wildcat X 1000 |
RM01229 |
2018 |
Textron |
|
| Wildcat X 1000 |
RM01229 |
2019 |
Textron |
|
Interchanges/Cross References
| Model |
Code |
| 0802-072 |
ARCTCO |
| 0802-064 |
ARCTCO |
| 0802-064 |
ArcticCat |
| 0802-072 |
ArcticCat |
| 0802-064 |
Arctic Cat |
| 0802-072 |
Arctic Cat |
| 0802-072 |
Textron |
| 0802-064 |
Textron |
