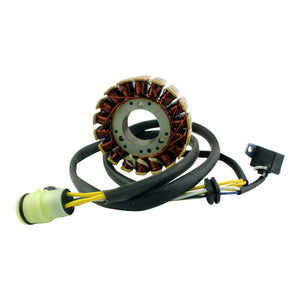

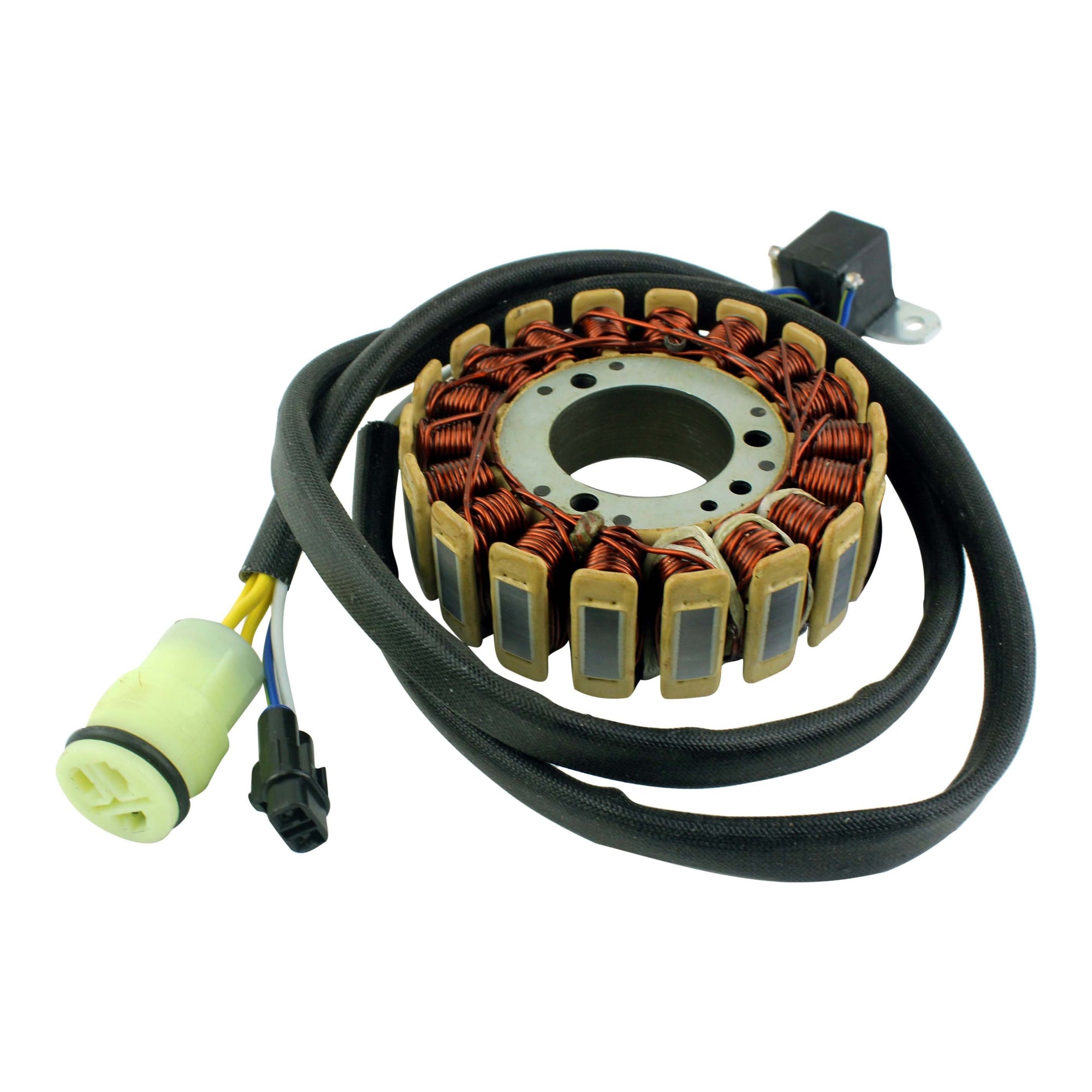

Kawasaki KFX450R Stator Coil | Replaces 21003-0067
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
- One year limited warranty
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Used on
- Kawasaki KFX 450 R 2008 -2014
Replaces OEM
Technical Details
Dimensions :
Interior diameter : 35mm
Exterior diameter : 92mm
Thickness : 18mm
Length of wires stator to grommet : 110mm
Length of wires grommet to plug : 900mm
Length of pickup coil’s wire to grommet : 40mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Pickup : Blue/Yellow to White = 190ohms +/-20%
Part Application/Fitment
| Model |
Code |
Year |
Manufacturer |
Engine |
| KFX 450 R |
RM01314 |
2008 |
Kawasaki |
|
| KFX 450 R |
RM01314 |
2009 |
Kawasaki |
|
| KFX 450 R |
RM01314 |
2010 |
Kawasaki |
|
| KFX 450 R |
RM01314 |
2011 |
Kawasaki |
|
| KFX 450 R |
RM01314 |
2012 |
Kawasaki |
|
| KFX 450 R |
RM01314 |
2013 |
Kawasaki |
|
| KFX 450 R |
RM01314 |
2014 |
Kawasaki |
|
Interchanges/Cross References
| Model |
Code |
| 21003-0067 |
Kawasaki |
| 21003-0067 |
Kawasaki |
