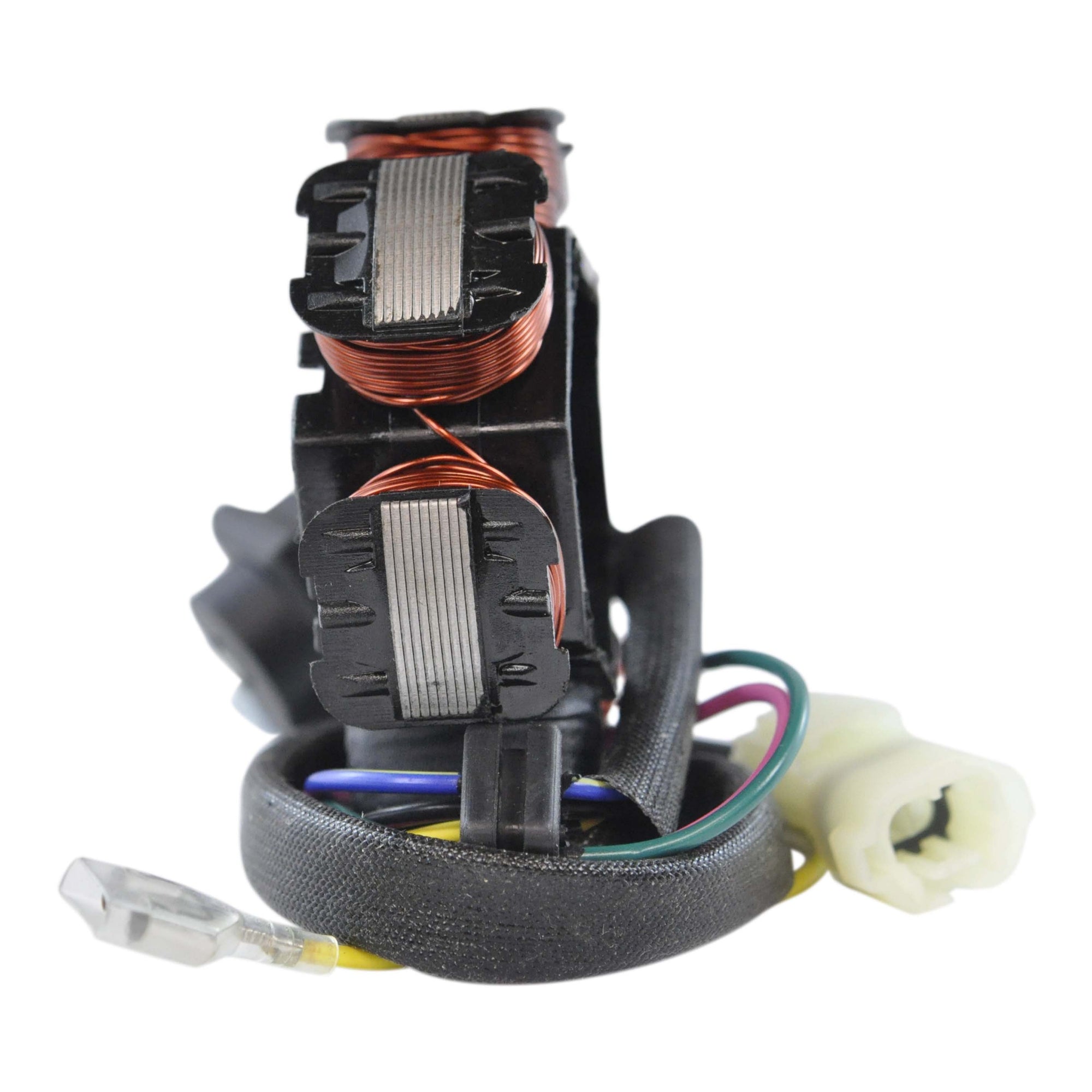

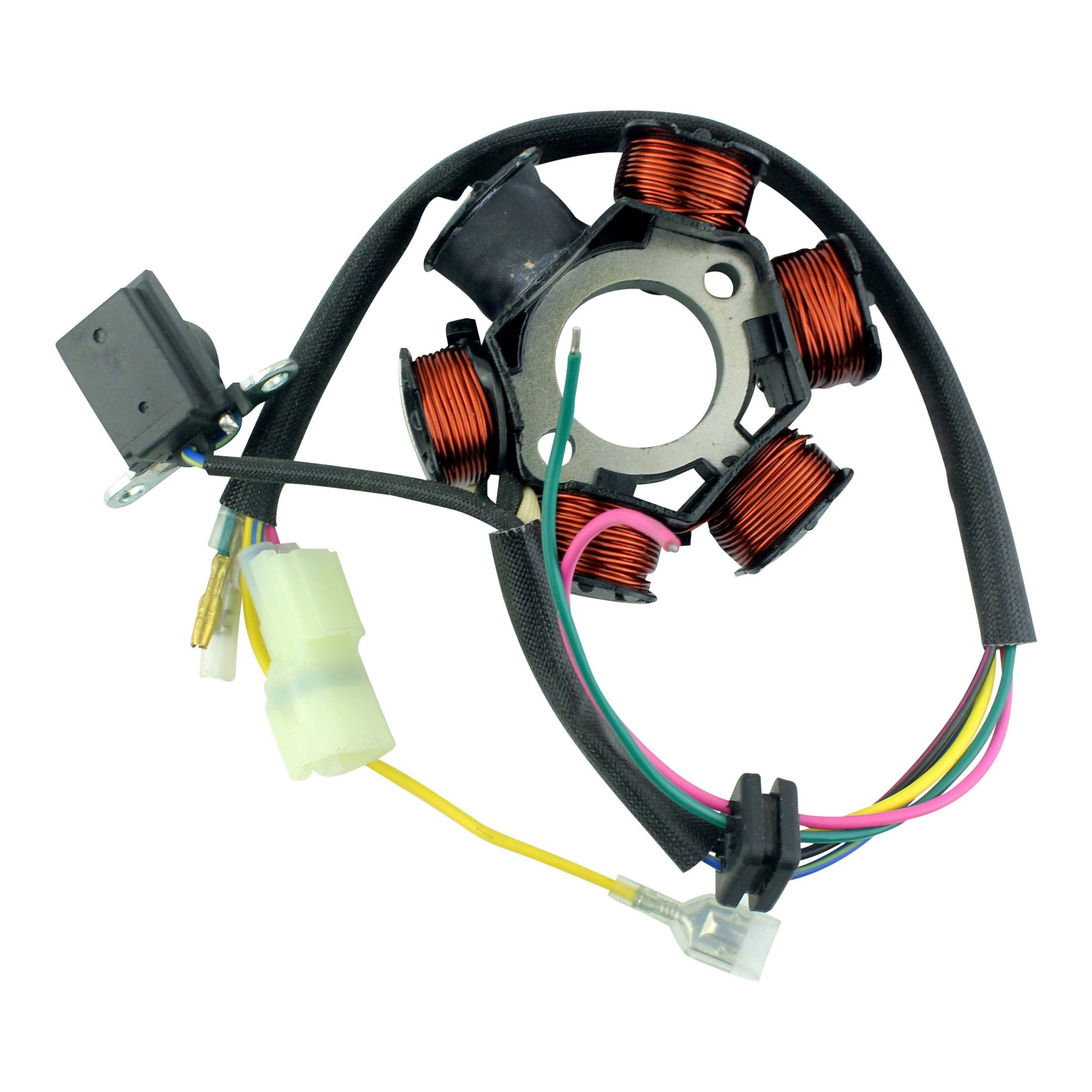

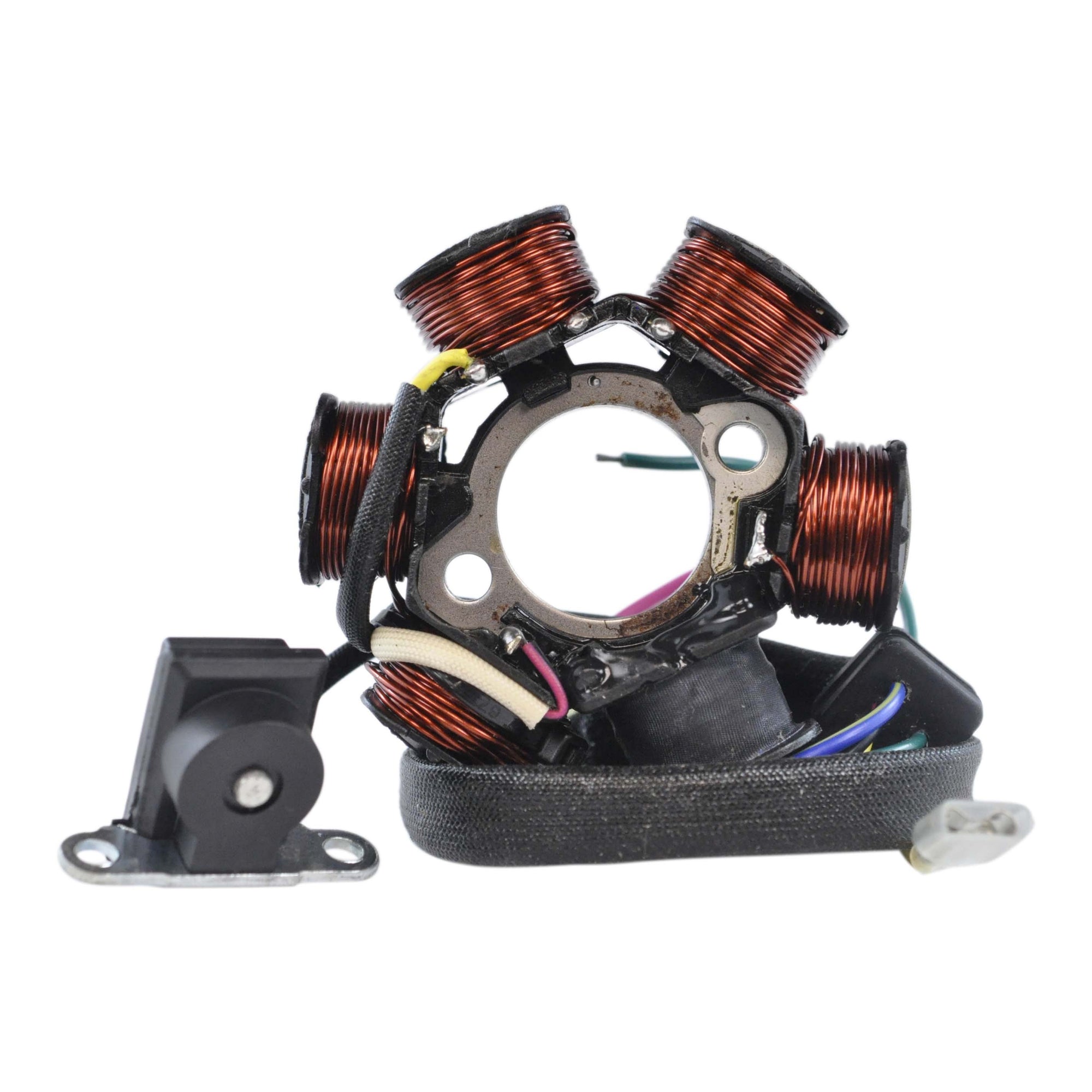

Honda TRX90 Fourtrax Sportrax High Output Stator Replaces 31120–HF7–003

Honda TRX90 Fourtrax Sportrax High Output Stator Replaces 31120-HF7-003

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

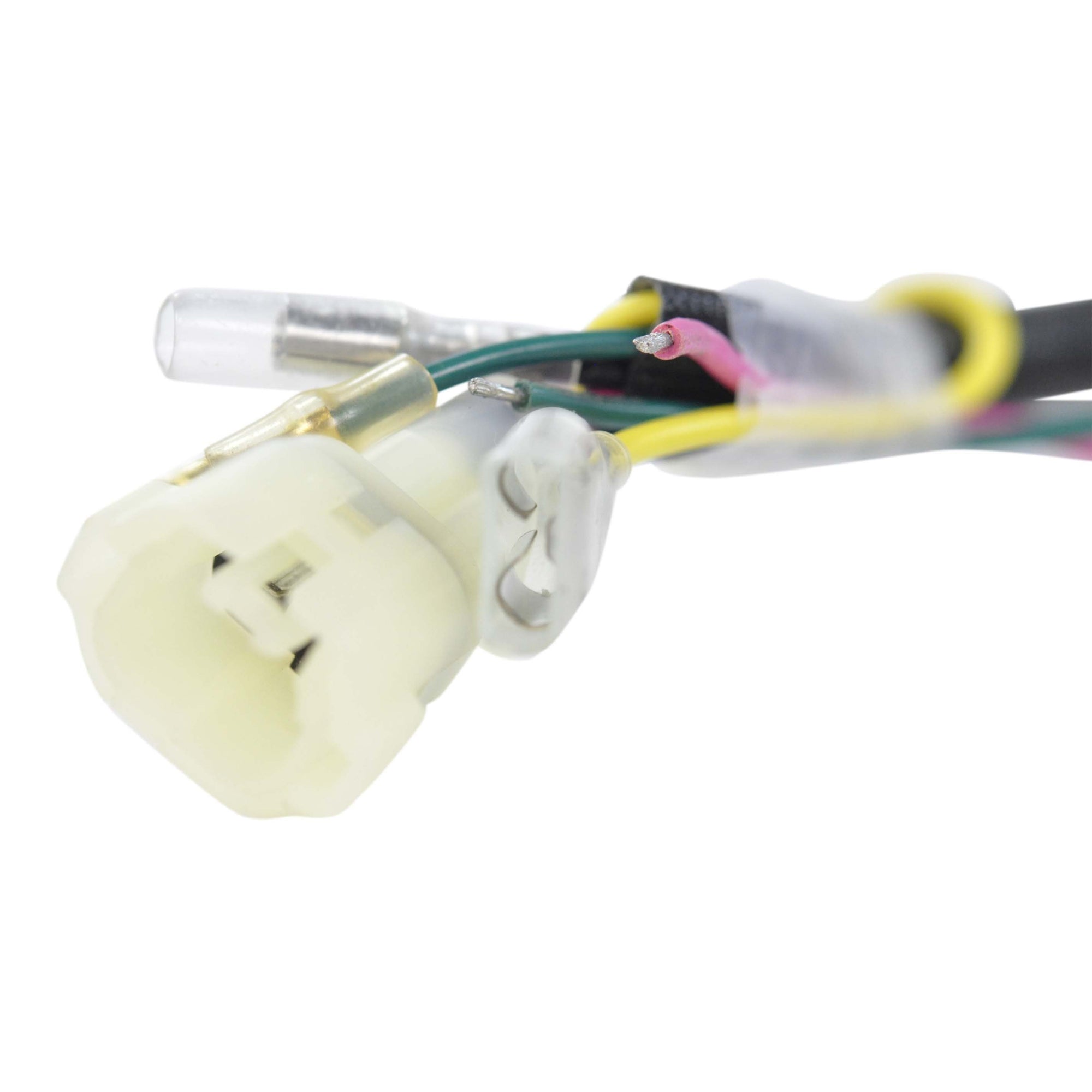

• Connector included
• Rubber grommet included
• All products shipped are tested
• One year limited warranty

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Fits Models

• Honda TRX 90 Fourtrax 1993 -2001
• TRX 90 Sportrax 2002 -2005

Replaces OEM

• 31120-HF7-003

Technical Details

Dimensions :
Interior diameter : 28mm
Exterior diameter : 83mm
Thickness : 8mm
Length of wires stator to grommet : 75mm
Length of wires grommet to plug : 260mm
Length of pickup coil’s wire to grommet : 150mm

Other specifications :
Number of wires : 5
Number of plugs : 4
Number of pins : 7

Wire to wire resistance :
Alternator : Black/Red to Yellow = 0.4ohms +/-20%
Pickup : Blue/Yellow to Pink = 225ohms +/-20%
Source : Black/Red to Green = 590ohms +/-20%

Before installing your new stator

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator/rectifier
• Check and repair any melted wiring.
• Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original. `
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.
