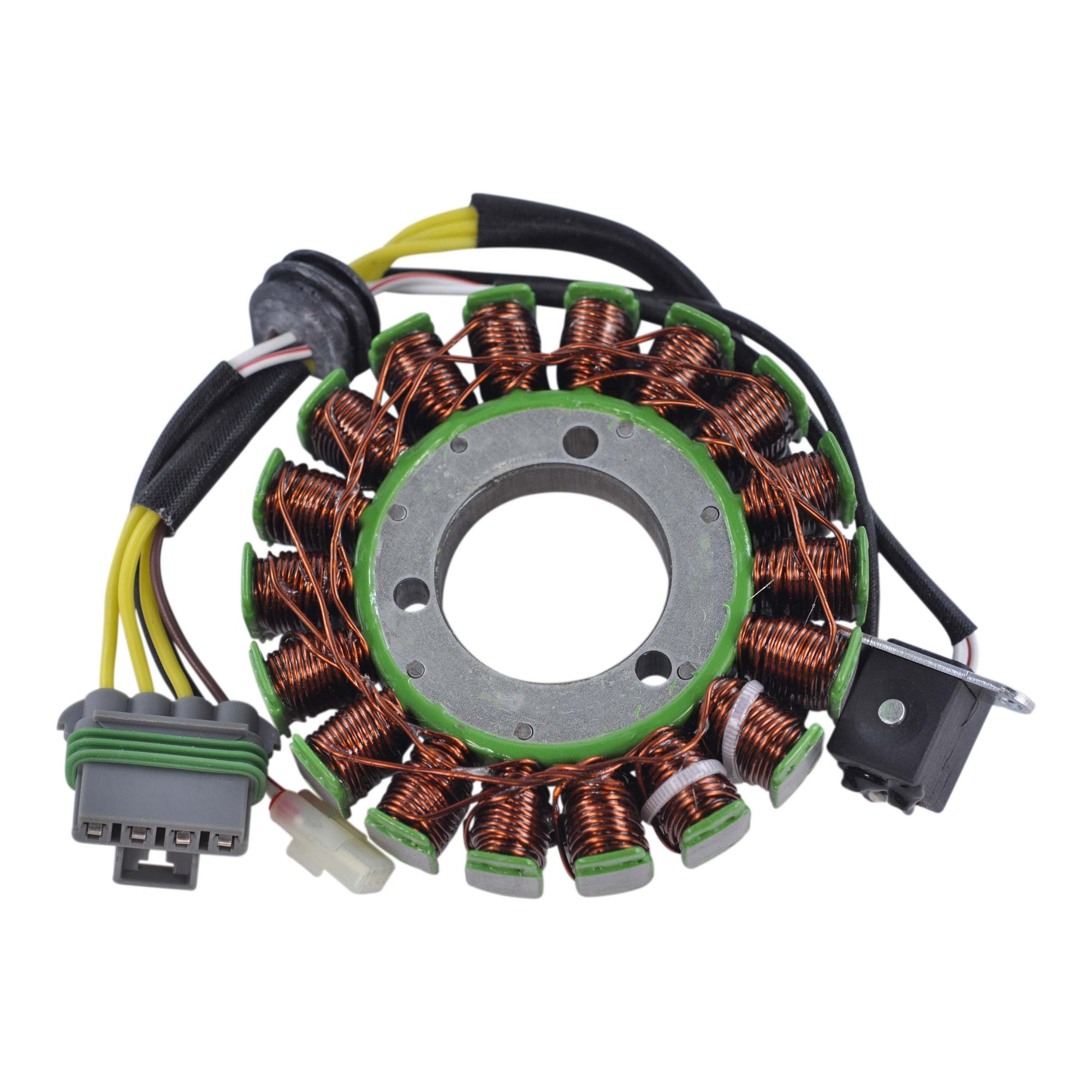

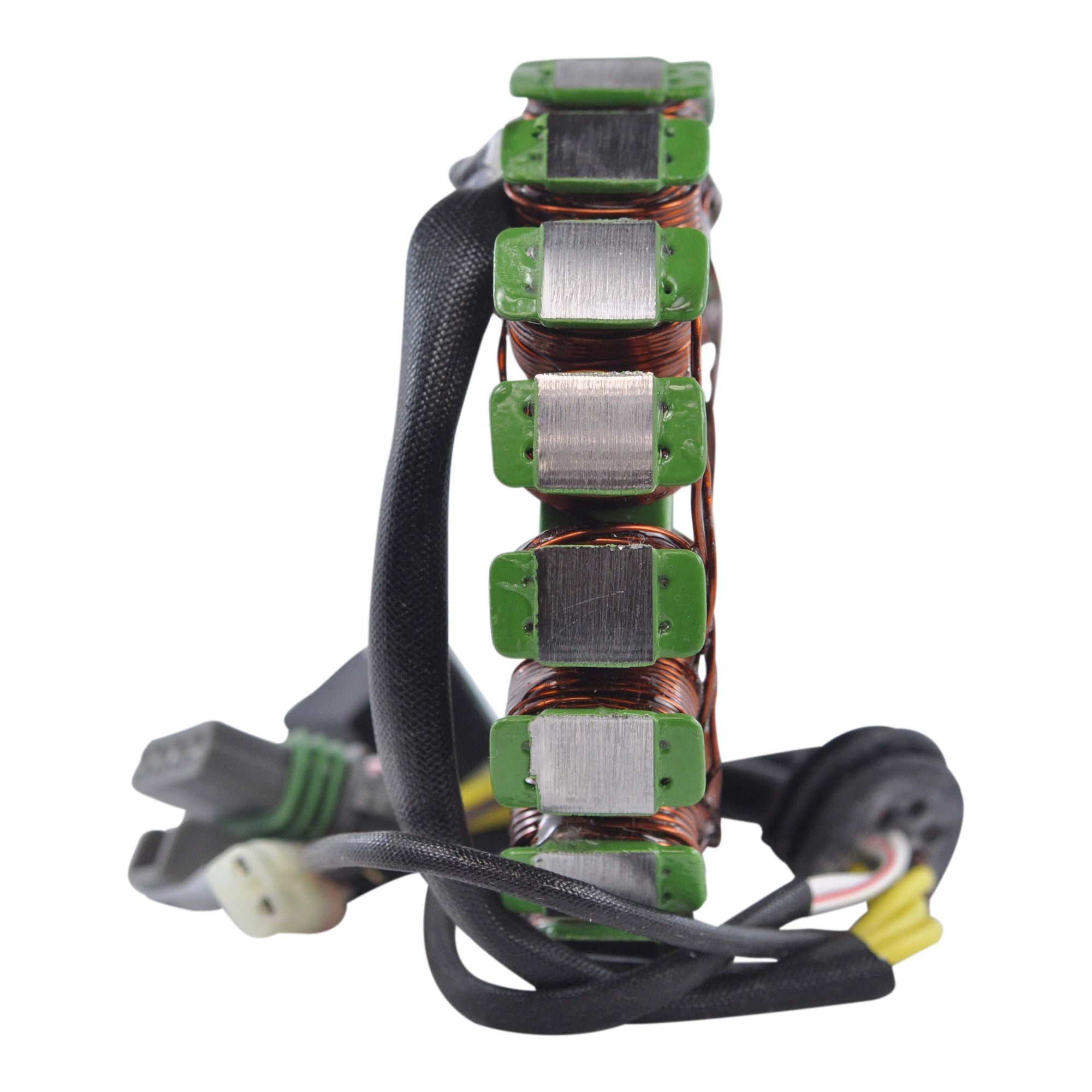

Generator Stator For Polaris Ranger|Sportsman|HO|Crew|X2
- Quality Product
- Made with premium materials
Fits Models
- Polaris Sportman 500 Touring 2008 -2009
- Polaris Sportsman 500 4×4 2008 -2009
- Polaris Sportsman 500 HO 2007 -2007
- Polaris Sportsman 500 HO EFI 2006 -2006
- Polaris Sportsman 500 HO EFI 2008 -2010
- Polaris Sportsman 500 Tractor 2009 -2010
- Polaris Sportsman 500 Tractor 2012 -2012
- Polaris Sportsman X2 500 2006 -2009
- Polaris Ranger 500 2010 -2013
- Polaris Ranger 500 Carb 2005 -2009
- Polaris Ranger 500 EFI 2006 -2009
- Polaris Ranger Crew 500 2011 -2013
Replaces OEM
- 3089906
- 3089959
- 3090081
- 3089579
Technical Details
Dimensions:
Interior diameter : 41 mm
Exterior diameter : 114 mm
Thickness : 14 mm Length of wires stator to grommet : 170mm
Length of wires grommet to plug : 130mm
Length of pickup coil’s wire to grommet : 110mm
Other specifications:
Number of wires : 6
Number of plugs: 2
Number of terminals : 7
Wire to wire resistance:
Alternator : Yellow to Yellow = 0.4 ohms+/-20%
Pick up : White to White/Red = 205 ohms+/-20%
Part Application/Fitment
| Model |
Code |
Year |
Manufacturer |
Engine |
| Ranger 500 4x4 |
RM01291 |
2010 |
Polaris |
|
| Ranger 500 4x4 |
RM01291 |
2011 |
Polaris |
|
| Ranger 500 4x4 |
RM01291 |
2012 |
Polaris |
|
| Ranger 500 4x4 |
RM01291 |
2013 |
Polaris |
|
| Ranger 500 4x4 |
RM01291 |
2010 |
Polaris |
|
| Ranger 500 4x4 |
RM01291 |
2011 |
Polaris |
|
| Ranger 500 4x4 |
RM01291 |
2012 |
Polaris |
|
| Ranger 500 4x4 |
RM01291 |
2013 |
Polaris |
|
| Ranger 500 EFI 4x4 |
RM01291 |
2006 |
Polaris |
|
| Ranger 500 EFI 4x4 |
RM01291 |
2007 |
Polaris |
|
| Ranger 500 EFI 4x4 |
RM01291 |
2008 |
Polaris |
|
| Ranger 500 EFI 4x4 |
RM01291 |
2009 |
Polaris |
|
| Ranger 500 EFI 4x4 |
RM01291 |
2009 |
Polaris |
|
| Ranger Crew 500 |
RM01291 |
2011 |
Polaris |
|
| Ranger Crew 500 |
RM01291 |
2012 |
Polaris |
|
| Ranger Crew 500 |
RM01291 |
2013 |
Polaris |
|
| Sportsman 500 |
RM01291 |
2006 |
Polaris |
|
| Sportsman 500 |
RM01291 |
2007 |
Polaris |
|
| Sportsman 500 |
RM01291 |
2008 |
Polaris |
|
| Sportsman 500 |
RM01291 |
2009 |
Polaris |
|
| Sportsman 500 HO EFI |
RM01291 |
2006 |
Polaris |
|
| Sportsman 500 HO EFI |
RM01291 |
2008 |
Polaris |
|
| Sportsman 500 HO EFI |
RM01291 |
2009 |
Polaris |
|
| Sportsman 500 HO Forest Tractor |
RM01291 |
2010 |
Polaris |
|
| Sportsman 500 HO Forest Tractor |
RM01291 |
2011 |
Polaris |
|
| Sportsman 500 HO Forest Tractor |
RM01291 |
2012 |
Polaris |
|
| Sportsman 500 HO Forest Tractor |
RM01291 |
2013 |
Polaris |
|
| Sportsman 500 HO Forest Tractor |
RM01291 |
2014 |
Polaris |
|
| Sportsman 500 Touring |
RM01291 |
2008 |
Polaris |
|
| Sportsman 500 Touring |
RM01291 |
2009 |
Polaris |
|
| Sportsman 500 Touring |
RM01291 |
2008 |
Polaris |
|
| Sportsman 500 Touring |
RM01291 |
2009 |
Polaris |
|
| Sportsman X2 500 |
RM01291 |
2006 |
Polaris |
|
| Sportsman X2 500 |
RM01291 |
2007 |
Polaris |
|
| Sportsman X2 500 |
RM01291 |
2008 |
Polaris |
|
| Sportsman X2 500 |
RM01291 |
2009 |
Polaris |
|
| Sportsman X2 500 |
RM01291 |
2008 |
Polaris |
|
| Sportsman X2 500 |
RM01291 |
2009 |
Polaris |
|
Interchanges/Cross References
| Model |
Code |
| 3089579 |
Polaris |
| 3089906 |
Polaris |
| 3089959 |
Polaris |
| 3089579 |
Polaris |
| 3089906 |
Polaris |
| 3089959 |
Polaris |
| 3090081 |
Polaris |
