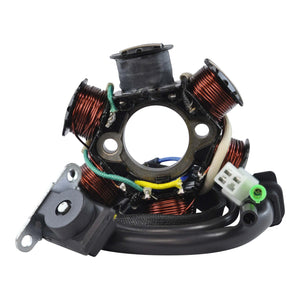

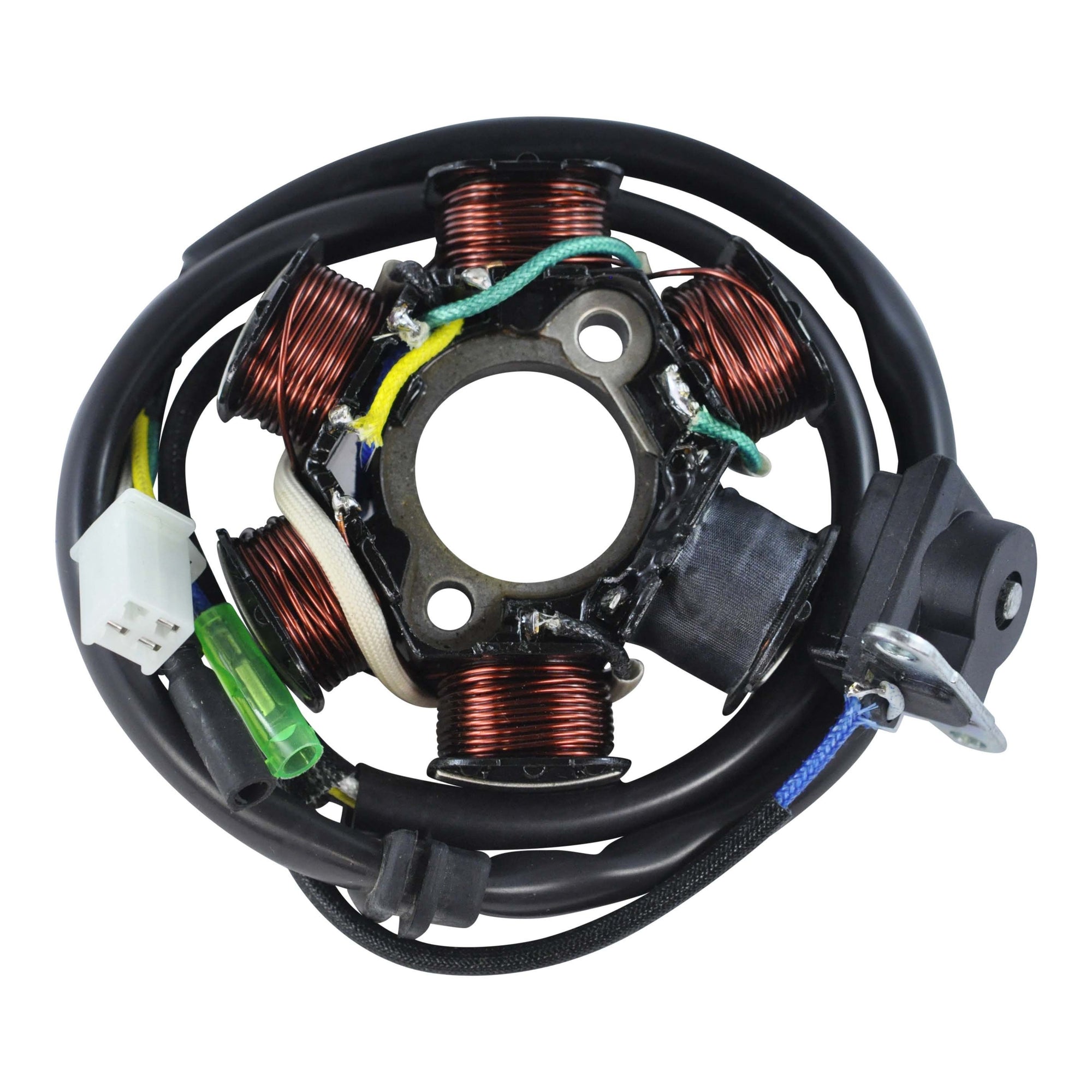

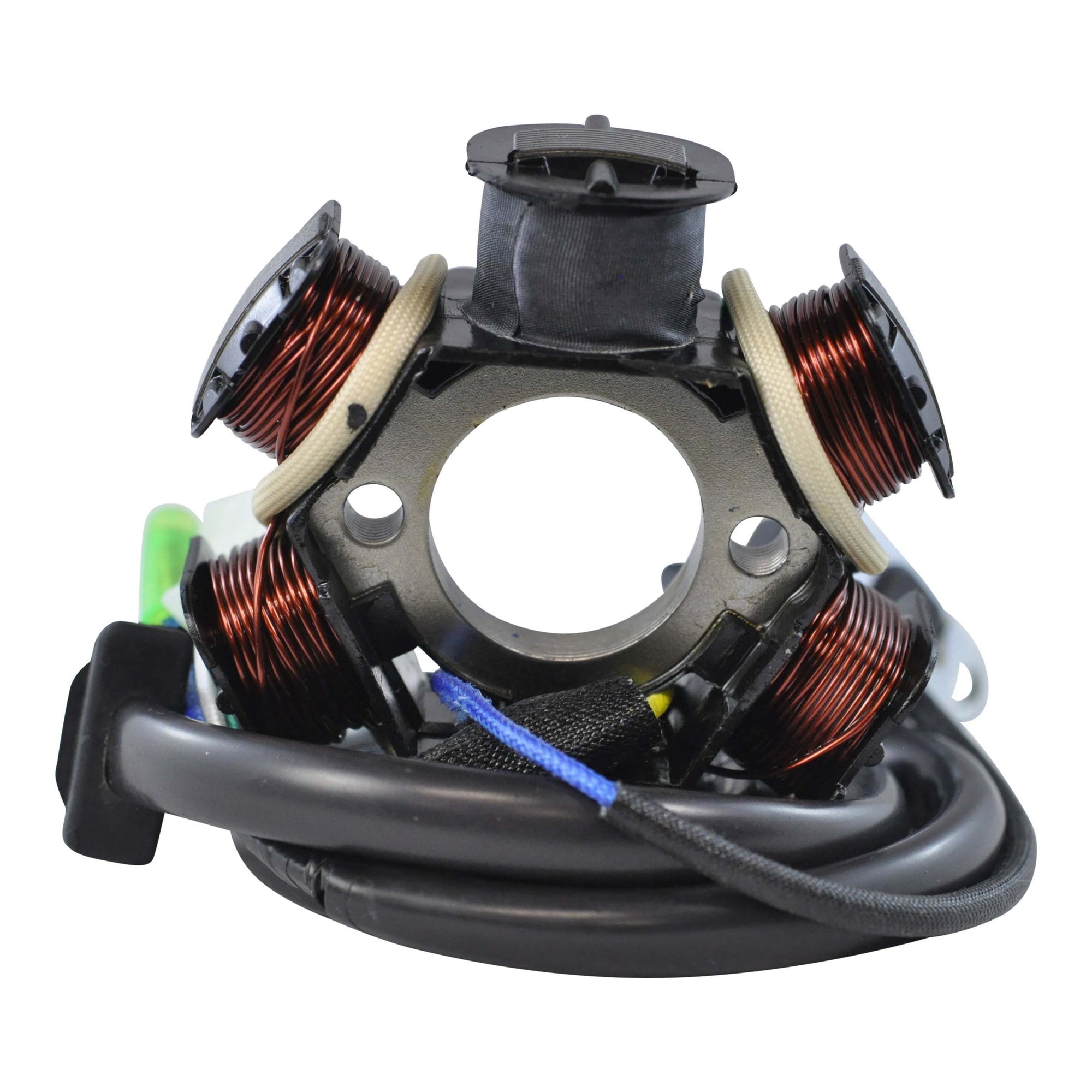

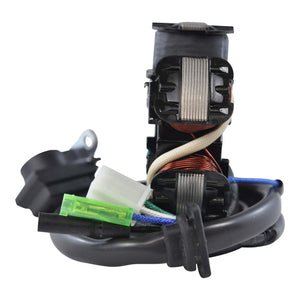

Can-Am DS70 | DS90 Stator Coil | Replaces V31100CJF010
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included

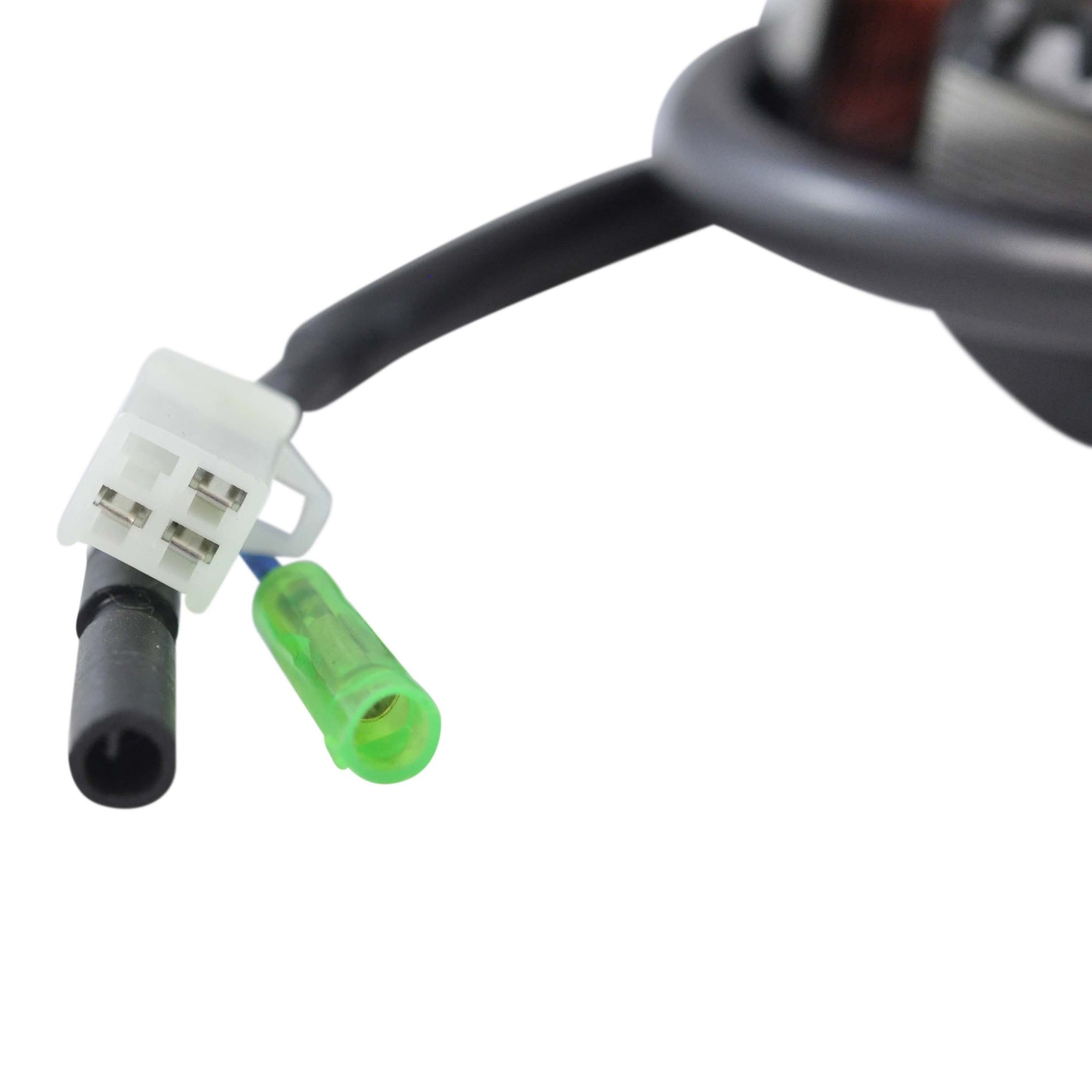

- Connector included
- Rubber grommet included
- All products shipped are tested
- One year limited warranty
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Used on
- Can-am DS 70 2008 -2015
- DS 70 2017 -2017
- DS 90 2008 -2017
Replaces OEM
Technical Details
Dimensions:
Interior diameter: 28mm
Exterior diameter: 82mm
Thickness: 9mm
Length of wires stator to grommet: 90mm
Length of wires grommet to plug: 550mm
Length of pickup coil’s wire to grommet: 90mm
Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Wire to wire resistance:
Alternator: = 0.4ohms +/-20%
Pickup: = 115ohms =+/-20%
Source: 593ohms =+/-20%
Part Application/Fitment
| Model |
Code |
Year |
Manufacturer |
Engine |
| DS 70 2x4 |
RM01288 |
2008 |
Can-am |
|
| DS 70 2x4 |
RM01288 |
2009 |
Can-am |
|
| DS 70 2x4 |
RM01288 |
2010 |
Can-am |
|
| DS 70 2x4 |
RM01288 |
2011 |
Can-am |
|
| DS 70 2x4 |
RM01288 |
2012 |
Can-am |
|
| DS 70 2x4 |
RM01288 |
2013 |
Can-am |
|
| DS 70 2x4 |
RM01288 |
2014 |
Can-am |
|
| DS 70 2x4 |
RM01288 |
2015 |
Can-am |
|
| DS 70 2x4 |
RM01288 |
2017 |
Can-am |
|
| DS 70 2x4 |
RM01288 |
2018 |
Can-am |
|
| DS 70 2x4 |
RM01288 |
2019 |
Can-am |
|
| DS 70 2x4 |
RM01288 |
2020 |
Can-am |
|
| DS 90 4-Stroke |
RM01288 |
2008 |
Can-am |
|
| DS 90 4-Stroke |
RM01288 |
2009 |
Can-am |
|
| DS 90 4-Stroke |
RM01288 |
2010 |
Can-am |
|
| DS 90 4-Stroke |
RM01288 |
2011 |
Can-am |
|
| DS 90 4-Stroke |
RM01288 |
2012 |
Can-am |
|
| DS 90 4-Stroke |
RM01288 |
2013 |
Can-am |
|
| DS 90 4-Stroke |
RM01288 |
2014 |
Can-am |
|
| DS 90 4-Stroke |
RM01288 |
2015 |
Can-am |
|
| DS 90 4-Stroke |
RM01288 |
2016 |
Can-am |
|
| DS 90 4-Stroke |
RM01288 |
2017 |
Can-am |
|
| DS 90 4-Stroke |
RM01288 |
2018 |
Can-am |
|
| DS 90 4-Stroke |
RM01288 |
2019 |
Can-am |
|
| DS 90 4-Stroke |
RM01288 |
2020 |
Can-am |
|
Interchanges/Cross References
| Model |
Code |
| V31100CJF010 |
Can Am |
| V31100CJF010 |
Canam |
| V31100CJF010 |
Can-am |
