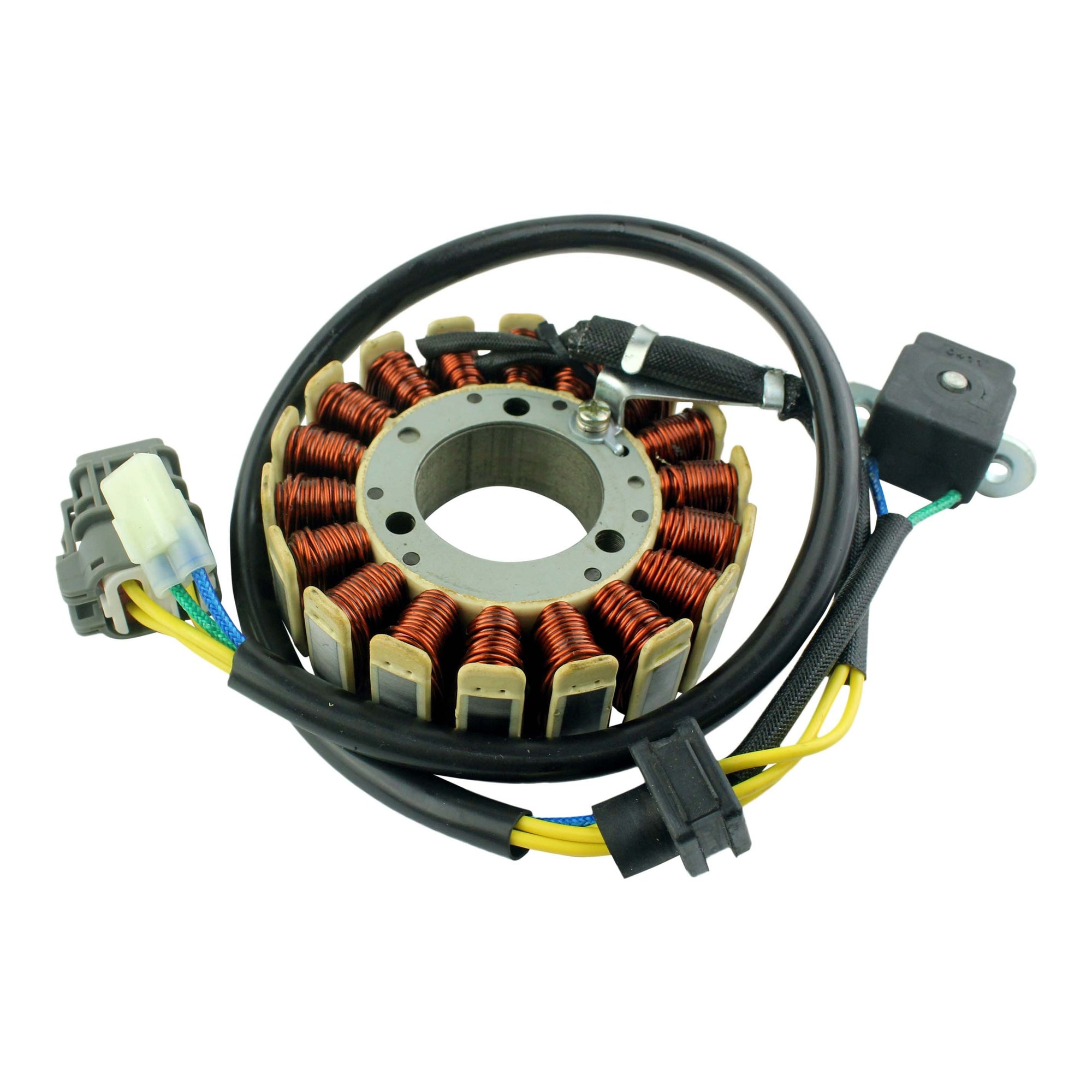

Arctic Cat 250 DVX | Utility Stator Coil Replaces 3304-682
- Direct replacement to your original unit
- Plug-og-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
- One year limited warranty
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Passer til følgende modeller
- Arctic Cat 250 Utility 2006 -2008
- 250 Utility 2009
- DVX 250 2006 -2008
Erstatter OEM
Tekniske detaljer
Dimensions :
Interior diameter : 34mm
Exterior diameter : 92mm
Thickness : 18mm
Length of wires stator to grommet : 80mm
Length of wires grommet to plug : 420mm
Length of pickup coil’s wire to grommet : 55mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Pickup : Green/White to Blue/Yellow = 105ohms +/-20%
Passer specifikt på disse modeller
| Model |
Delnummer |
År |
Mærke |
Motor |
| 250 Utility 2X4 |
RM01259 |
2006 |
Arctic Cat |
|
| 250 Utility 2X4 |
RM01259 |
2007 |
Arctic Cat |
|
| 250 Utility 2X4 |
RM01259 |
2008 |
Arctic Cat |
|
| 250 Utility 2X4 |
RM01259 |
2009 |
Arctic Cat |
|
| DVX 250 |
RM01259 |
2006 |
Arctic Cat |
|
| DVX 250 |
RM01259 |
2007 |
Arctic Cat |
|
| DVX 250 |
RM01259 |
2008 |
Arctic Cat |
|
Erstatter følgende originale varenumre
| Varenummer |
Mærke |
| 3303-833 |
Arctco |
| 3304-682 |
Arctco |
| 3303-833 |
ArcticCat |
| 3304-682 |
ArcticCat |
| 3303-833 |
Arctic Cat |
| 3304-682 |
Arctic Cat |
