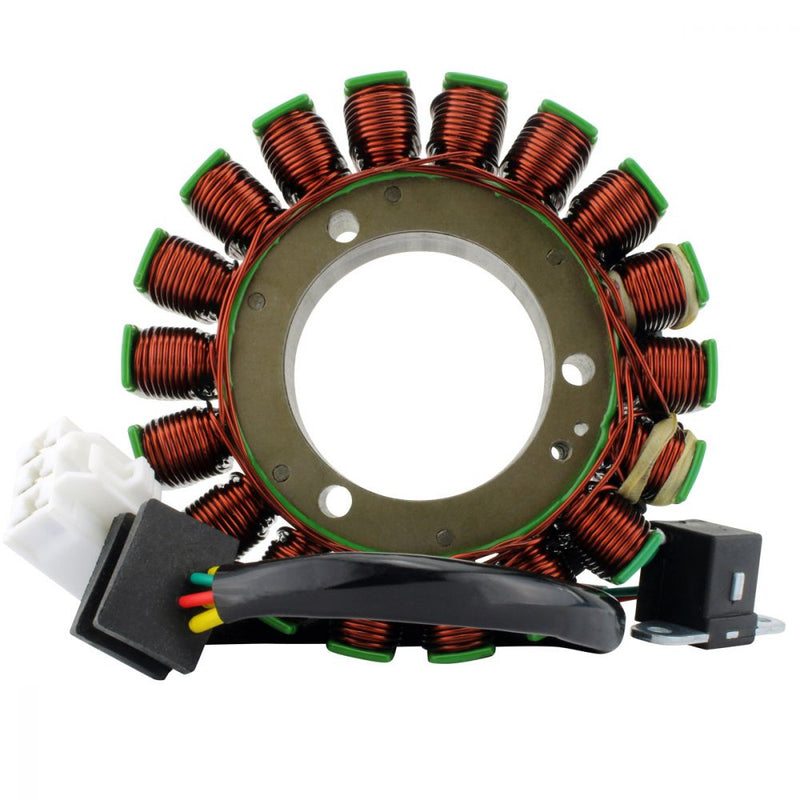

Generator Stator for Suzuki VStorm 100 2014-2019
- Kvalitetsprodukt
- Uoriginal - men lige så god som original
Passer til følgende modeller
2019 Suzuki DL 1000 V-Strom
2018 Suzuki DL 1000 V-Strom
2016 Suzuki DL 1000 V-Strom
2015 Suzuki DL 1000 V-Strom
2014 Suzuki DL 1000 V-Strom
SPECIFICATIONS
Dimensions:
Interior diameter: 54 mm
Exterior diameter: 119 mm
Thickness: 26 mm
Length of wires stator to grommet: 170 mm
Length of wires grommet to plug: 270 mm
Length of pickup coil’s wire to grommet: 150 mm
Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.6 ohms +-20%
Alternator: Yellow to ground = O.L
Pickup: Green to Red = 192 ohms +-20%
Erstatter OEM
